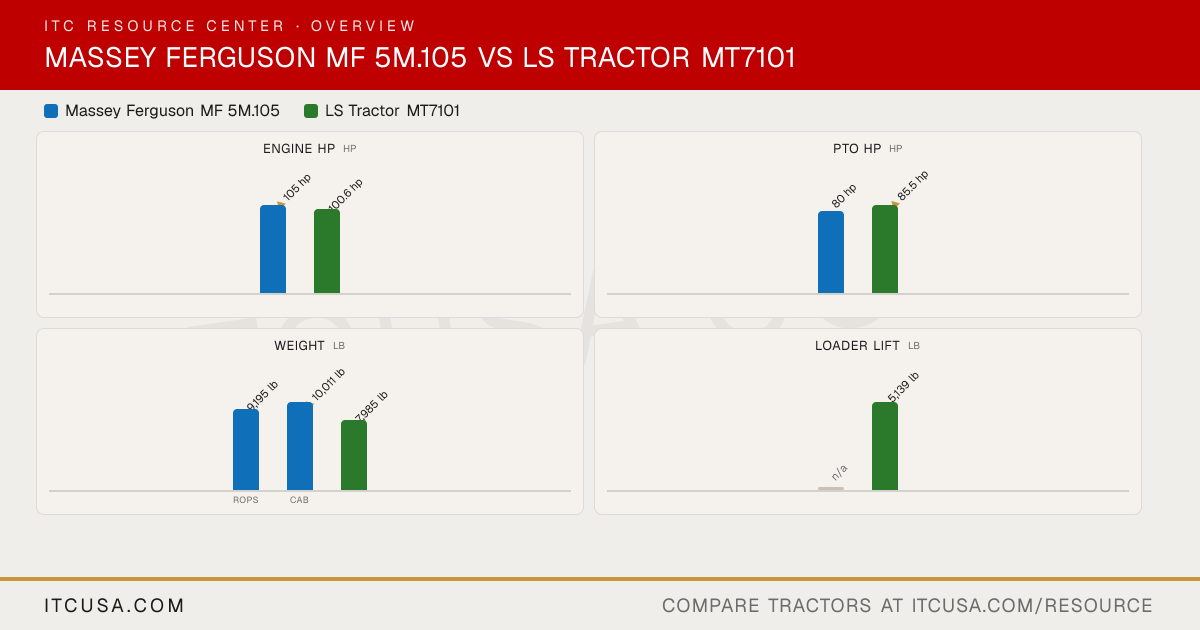

▶ EngineEngine Manufacturer AGCO Power FPT Industrial Engine Model Not Published F5G Engine Type 4-cylinder, turbocharged intercooled diesel In-line, water-cooled, 4 stroke, CRDI No. of Cylinders 4 4 Displacement 268.5 in³ 206.7 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 105 hp 100.6 hp PTO Power 80 hp 85.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Water-cooled Air Cleaner Not Published Dry Fuel System High-pressure common-rail direct fuel injection CRDI (Bosch CP4.11) Alternator Platform: 80 A; Cab: 120 A 120 A, 14 V ▶ HydraulicsPump Type Engine-driven gear pump Gear pump type, engine drive Implement Flow 15.3 gpm 15.7 gpm Steering Flow 8.5 gpm 6.5 gpm Total Hydraulic Flow 23.8 gpm (15.3 + 8.5, computed) 22.2 gpm Overall Hydraulic Pump Flow 23.8 gpm (15.3 + 8.5, computed) 22.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 26 gpm Not Published No. of Standard Remote Valves 2 3 Pairs (Front), 2 Pairs (Rear) No. of Optional Remote Valves 3 1 Pair (Rear) ▶ Fluid CapacityFuel Tank Capacity 52.8 gal 30.4 gal Coolant Capacity Not Published 3.2 gal Crankcase Capacity Not Published 1.7-2.1 gal (6.5-2.1 gal) Transmission / Hydraulic System Capacity Not Published 14.5 gal Front Axle Fluid Capacity Not Published 1.4 gal ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Independent PTO Rear 540 / 540E / 1000 rpm 540 / 750 / 1,000 Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 9,480 lb 8,378 lb Hitch Lift Capacity (at 24”) 7,500 lb 5,952 lb Lift Control Type Not Published Position & Draft ▶ Transmission & DrivetrainTransmission Type 12 x 12: 2-range power shuttle with electrohydraulic shuttle lever; Dyna-4: semi-powershift Power shuttle with Hi-Lo and Hand clutch No. of Speeds 12 x 12: 12F/12R; Dyna-4: 16F/16R 24 X 24 Max Travel Speed (Forward) Not Published 23.1 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Multidisk wet clutch with electrohydraulic power shuttle lever Wet clutch disks Differential Lock & Limited Slip Options Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch Electro-Hydraulic Differential lock (EHD) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Wet, Multi-disc Seat Suspension & Adjustability ROPS: mechanical spring suspension with armrests; Cab: air-ride swivel seat Air suspension seat Front Axle Type Heavy-duty 4WD front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 165.6 in 152.2 in Overall Width Dyna-4 cab: 74.9 in; 12 x 12 cab: 79.8 in 78.7 in Wheelbase 95.7 in 90 in Ground Clearance 20.3 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 105.7 in 107 in ▶ WeightTractor Weight (Base) ROPS: 9,195 lb; Cab: 10,011 lb 7,985 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 9,645 lb ▶ Tire OptionsTire Size & Options Not Published Ag 13.6-24 / 18.4-34; R14 340/70R28 / 460/75R38 R1 Agricultural - Front Not Published 13.6-24 R1 Agricultural - Rear Not Published 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove) Loader Model Not Published LL8100 Loader Lift Height Not Published LL8100: 139.9 in Loader Lift Capacity (Full Height) Not Published LL8100: 5,139 lb Loader Breakout Force Not Published LL8100: 5,313 lb ▶ WarrantyWarranty Length & Coverage Not Published 5-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
