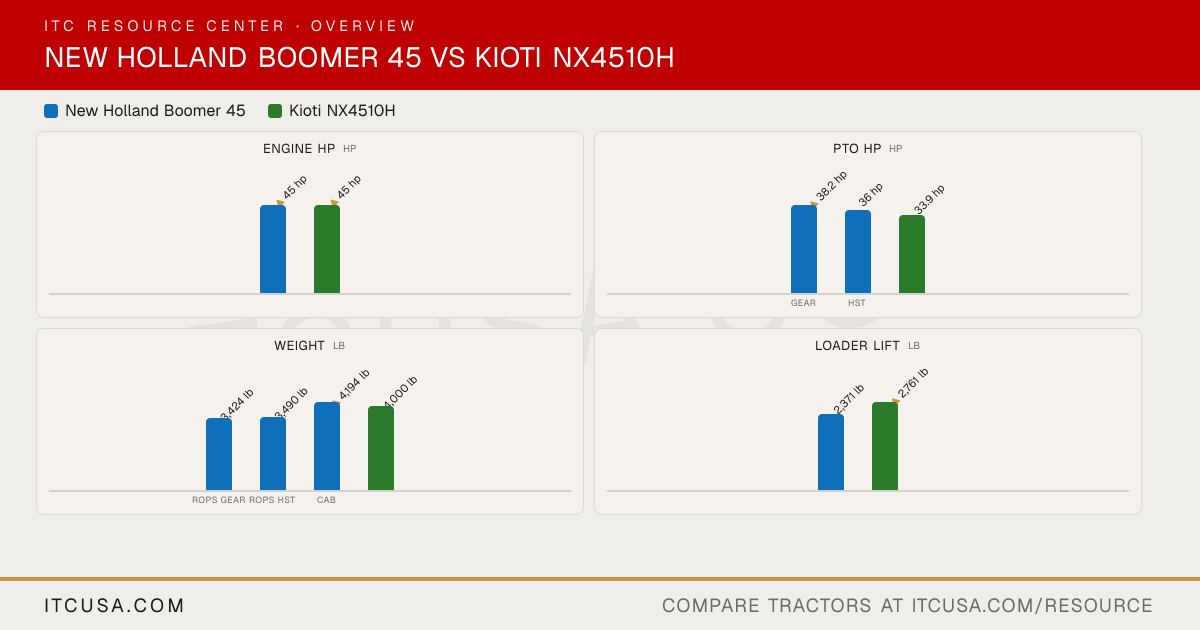

▶ EngineEngine Manufacturer LS Mtron KIOTI Engine Model L3CRV-T9A 3F183T Engine Type 3-cylinder, turbocharged, liquid-cooled diesel 3-cylinder, turbocharged, common-rail, liquid-cooled diesel No. of Cylinders 3 3 Displacement 114.7 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 45 hp 45 hp PTO Power Gear: 38.2 hp; HST: 36 hp 33.9 hp Engine Emissions Constraints Tier 4B (final) Tier 4 Cooling System Type Liquid cooled Water-cooled Air Cleaner Replaceable primary and inner elements Dry type element Fuel System Electronically controlled common rail direct injection Common Rail Diesel (CRDI) Alternator ROPS: 70 A, 12 V; Cab: 85 A, 12 V Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow 8.2 gpm Not Published Steering Flow Gear: 4.2 gpm; HST: 5.3 gpm Not Published Total Hydraulic Flow Gear: 12.4 gpm; HST: 13.5 gpm 17.9 gpm Overall Hydraulic Pump Flow Gear: 12.4 gpm; HST: 13.5 gpm 17.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves Up to 2 (second valve optional) 1 ▶ Fluid CapacityFuel Tank Capacity ROPS: 10.5 gal; Cab: 12.4 gal 14.8 gal Coolant Capacity 2.3 gal 2.0 gal Crankcase Capacity 5.8 qt 1.58 gal Transmission / Hydraulic System Capacity 11.4 gal 11.89 gal Front Axle Fluid Capacity 2.2 gal Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Standard (2000 rpm) Optional (2,000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,756 lb 3,538 lb Hitch Lift Capacity (at 24”) 2,116 lb 3,177 lb Lift Control Type Position control (draft control optional) Position with Draft Control ▶ Transmission & DrivetrainTransmission Type Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal Hydrostatic No. of Speeds Gear: 16F/16R; HST: 3-range 3 Range Max Travel Speed (Forward) Gear: 17.0 mph; HST: 17.9 mph 16.52 mph Max Travel Speed (Reverse) Gear: 15.3 mph; HST: 11.37 mph 16.52 mph Clutch Gear: dry single disc (10.8 in); HST: n/a Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal) Differential Lock: Rear (Standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Wet multi-disc Wet Multi Disc Seat Suspension & Adjustability ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Adjustable Seat Front Axle Type Four-wheel drive (FWD) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Width 69.1 in 65.6 in Wheelbase 73.2 in 75.6 in Ground Clearance 15 in 13.8 in Min. Turn Radius without Brakes 111.8 in (right turn); 123.2 in (left turn) (with brake applied) 9.8 ft Height to Top of ROPS 97.1 in 103.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 94 in Not Published Overall Length 128.1 in 139.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb 4,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Agricultural, Turf, Industrial R1 Agricultural - Front 9.5-16 8-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front 28x8.50-15 29-12.5-15 R3 Turf - Rear 41x14.00-20 21.5L-16.1 R4 Industrial - Front 12x16.5 10-16.5 R4 Industrial - Rear 17.5Lx24 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Tool-free loader mount; optional skid-steer quick-attach plates Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Model 260TLA KL6010 Loader Lift Height 260TLA: 109 in (at pivot pin) KL6010: 108.3 in (to pivot pin) Loader Lift Capacity (Full Height) 260TLA: 2,371 lb (at bucket pivot pin, max height) KL6010: 2,761 lb (at pivot pin, max height) Loader Breakout Force 260TLA: 4,081 lb (at bucket pivot pin) KL6010: 3,727 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total) Non-commercial: basic 2 years, powertrain 72 months, unlimited hours, parts and labor ▶ ITC Company AccessoriesAccessories that fit None tagged yet
