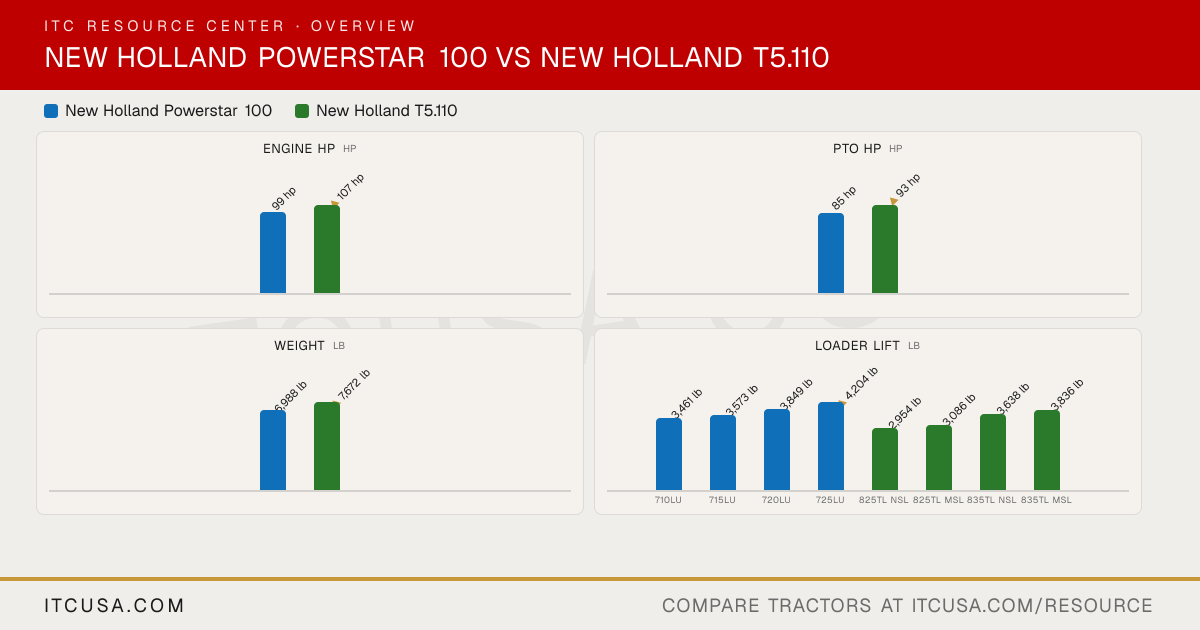

▶ EngineEngine Manufacturer FPT FPT Engine Model F36 F5G Engine Type 4-cylinder diesel, turbocharged and aftercooled Dual Command: 4-cylinder diesel; Electro Command: turbo diesel with high-pressure common rail and electronic fuel delivery control No. of Cylinders 4 4 Displacement 219.7 in³ 207 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 99.2 hp 107 hp PTO Power Not Published 93 hp Engine Emissions Constraints Stage V (ECOBlue Compact HI-eSCR + Light CEGR) Tier 4B Final Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Not Published Fuel System Common rail fuel injection Electro Command: high-pressure common-rail, electronic fuel delivery control Alternator Not Published 120 A ▶ HydraulicsPump Type Open center, dual pumps: implement pump plus dedicated steering pump Fixed displacement, tandem pumps (implement and steering) Implement Flow 21.7 gpm Dual Command: 16.9 gpm; Electro Command: 21.1 gpm Steering Flow 9.7 gpm Dual Command: 9.7 gpm; Electro Command: 11.4 gpm Total Hydraulic Flow 31.4 gpm (21.7 + 9.7, computed) Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) Overall Hydraulic Pump Flow 31.4 gpm (21.7 + 9.7, computed) Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear remotes (four couplers) Dual Command: 2 or 3; Electro Command: 2 No. of Optional Remote Valves 1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter) Electro Command: 3 rear remotes (mechanical, 2 with configurable detents) ▶ Fluid CapacityFuel Tank Capacity 34.3 gal Electro Command: 43.6 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Fully independent electrohydraulic PTO, wet clutch Independent (hydraulic wet disc clutch) PTO Rear 540/1000 rpm (interchangeable, standard) Dual Command: 540/1000 rpm (optional); Electro Command: 540/1000 rpm (540/540E/1000 optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 4,123 lb Dual Command: 5,620 lb (7,351 lb with optional ram) Lift Control Type 12x12 models: mechanical draft control; Dual Command models: electronic draft control; single-lever Lift-O-Matic PLUS (standard) Not Published ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle; 20x20 power shuttle with creeper; 24x24 Dual Command hi-lo power shuttle (column-mounted) Dual Command: 24x24 Hi-Lo with power shuttle (standard); Electro Command: 16x16 semi-powershift (auto-shift or 32x32 creeper optional) No. of Speeds 12F/12R; 20F/20R with creeper; 24F/24R Dual Command Dual Command: 24F/24R; Electro Command: 16F/16R (32F/32R with creeper) Max Travel Speed (Forward) 25 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Electrohydraulic rear differential lock Optional TerraLock automatic 4WD engagement and differential lock system (Electro Command) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Hydraulic wet disc Seat Suspension & Adjustability Air-suspension cloth seat Not Published Front Axle Type Heavy-duty class 1.5 4WD front axle Electro Command: 4WD front axle, Class 1.5 HD (TerraGlide suspended 4WD front axle optional) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) Dual Command: 75.7 in Wheelbase 92.5 in Dual Command: 89.9 in; Electro Command: 93.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Dual Command: 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103.6 in Dual Command: 102.1 in; Electro Command: 107 in Overall Length 158.2 in Dual Command: 160.9 in; Electro Command: 165 in ▶ WeightTractor Weight (Base) 10,240 lb Dual Command (ROPS): 7,672 lb; Dual Command (Cab): 8,157 lb; Electro Command (Cab): 10,031 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 420/85R38 (reference tire for weight and dimensions); rear tires as large as R38 available Not Published R1 Agricultural - Front Not Published 14.9R24 R1 Agricultural - Rear Not Published 18.4R34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (available, both LU loaders) Skid-steer style or Euro (European) style tool carrier Loader Model 650LU (NSL); 655LU (MSL) 810LA (NSL); 815LA (MSL) Loader Lift Height 650LU: 149.7 in; 655LU: 149.7 in (max lift height to pivot pin) 825TL: 139.0 in; 835TL: 146.9 in (to pivot pin) Loader Lift Capacity (Full Height) 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) 825TL NSL: 2,954 lb; 825TL MSL: 3,086 lb; 835TL NSL: 3,638 lb; 835TL MSL: 3,836 lb (to max height, measured 31.5 in forward of pivot pin) Loader Breakout Force Not Published 825TL NSL: 3,109 lb; 825TL MSL: 3,417 lb; 835TL NSL: 3,880 lb; 835TL MSL: 4,277 lb (measured 31.5 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
