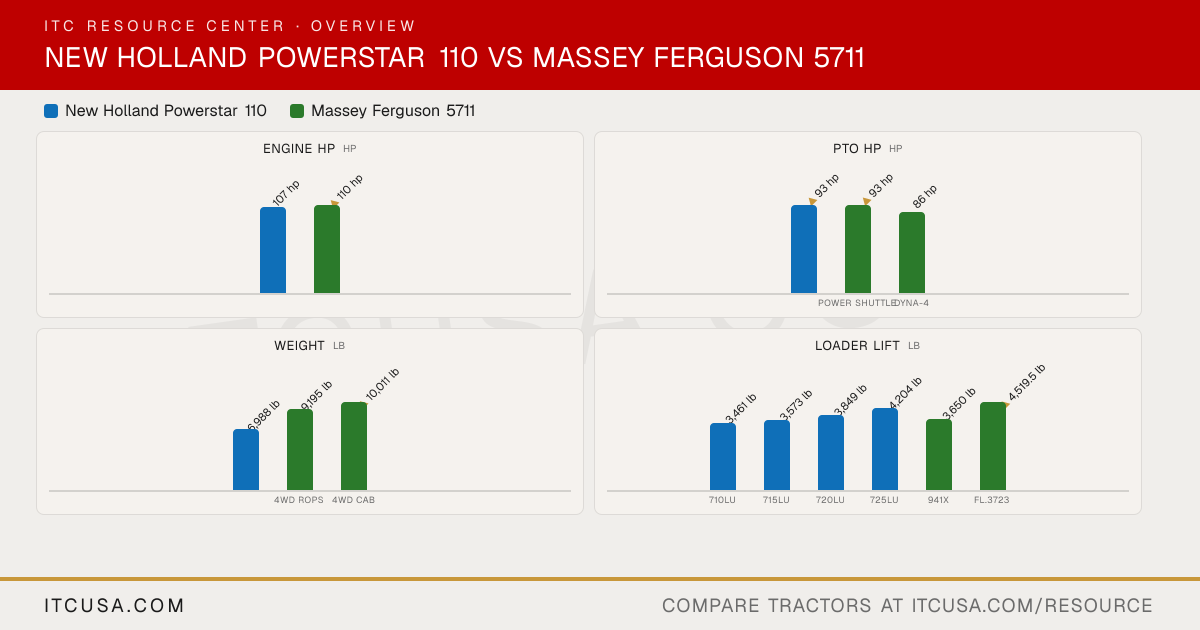

▶ EngineEngine Manufacturer FPT Industrial AGCO Power Engine Model F5G 44 AWFC Engine Type 4-cylinder diesel, turbocharged and aftercooled 4-cylinder, intercooled turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement 207 in³ 268.5 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 107 hp 110 hp PTO Power 93 hp Power Shuttle: 93 hp; Dyna-4: 86 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Not Published Not Published Fuel System Electronic high-pressure common rail fuel injection High-pressure common-rail direct injection (HPCR) Alternator ROPS: 120 A; Cab: 150 A 120 A, 12 V ▶ HydraulicsPump Type Open-center; dual pumps (implement pump plus dedicated steering pump) Two high-pressure gear pumps Implement Flow 16.9 gpm 15.1 gpm Steering Flow 9.7 gpm Not Published Total Hydraulic Flow 26.6 gpm 25.9 gpm Overall Hydraulic Pump Flow 26.6 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves 2 rear remotes (open center with detent) 2 No. of Optional Remote Valves 1 (third rear remote, DIA kit) 1 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 38.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Fully independent hydraulic PTO Independent, electro-hydraulic engagement via switch PTO Rear 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5,620 lb 7,710 lb Lift Control Type Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) Electronic linkage control (ELC) ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) Power Shuttle: 12F x 12R, 2-range with electrohydraulic shuttle lever; Dyna-4: 16F x 16R powershift No. of Speeds 12F/12R (standard); 20F/20R with creeper (optional) Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse Max Travel Speed (Forward) 27 mph (4WD front axle); 20 mph (2WD front axle) 25 mph Max Travel Speed (Reverse) 27.25 mph (12x12, 4WD front axle, 18R34 tires) Not Published Clutch Not Published Single-plate wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement Rear differential lock engaged via electrohydraulic rocker switch; Hydra-Lock hydraulic front axle differential lock on 4WD ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering; cab: tilt and telescopic column, platform: tilt column Brakes Hydraulic wet disc Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Cab: air-ride swivel seat; platform: mechanical spring suspension seat with armrests Front Axle Type Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) Heavy-duty 4WD front axle: cast steel, fixed, center drive line, planetary final drives Front Axle Rating 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 163.1 in (2WD); 160.9 in (4WD) Not Published Overall Width 75.7 in 64.8 in Wheelbase 92.2 in (2WD); 89.9 in (4WD) 95.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 134 in (optional 2WD front axle, w/o brakes) Not Published Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in Not Published ▶ WeightTractor Weight (Base) 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions Rear: 460/85R34 standard radial R1 Agricultural - Front 2WD: 10.00-16; 4WD: 12.4-24 Not Published R1 Agricultural - Rear 18.4R34 (reference tire for OEM weights and dimensions) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Not Published Loader Model 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) 941X; 946X; FL.3723; FL.3819 Loader Lift Height 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in Loader Lift Capacity (Full Height) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb 941X: 3,650 lb; FL.3723: 4,519.5 lb Loader Breakout Force 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) FL.3723: 5,818.6 lb; FL.3819: 4,892.9 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
