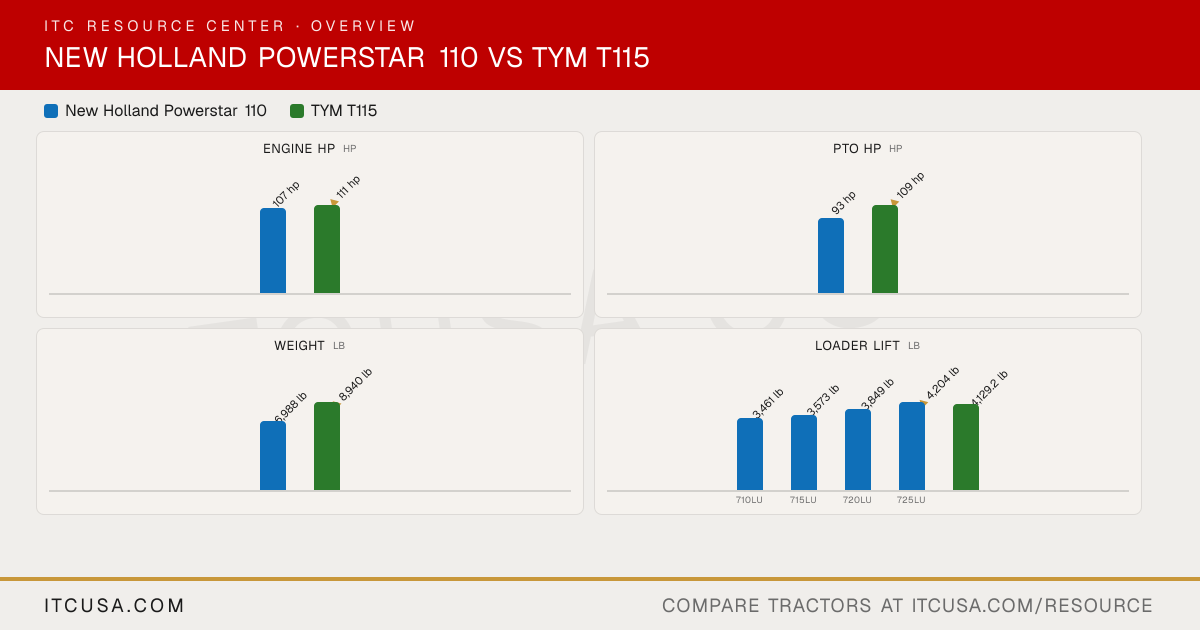

▶ EngineEngine Manufacturer FPT Industrial Deutz Engine Model F5G TCD 3.6L4-C5VT83E Engine Type 4-cylinder diesel, turbocharged and aftercooled Water-cooled, 4-cylinder diesel engine No. of Cylinders 4 4 Displacement 207 in³ 221 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 107 hp 111 hp PTO Power 93 hp 109 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dual dry Fuel System Electronic high-pressure common rail fuel injection CRDI Alternator ROPS: 120 A; Cab: 150 A 120 A, 12 V ▶ HydraulicsPump Type Open-center; dual pumps (implement pump plus dedicated steering pump) Dual gear pump Implement Flow 16.9 gpm 14.3 gpm Steering Flow 9.7 gpm 7.1 gpm Total Hydraulic Flow 26.6 gpm 21.4 gpm Overall Hydraulic Pump Flow 26.6 gpm 21.4 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear remotes (open center with detent) 6 No. of Optional Remote Valves 1 (third rear remote, DIA kit) Not Published ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 31.7 gal Coolant Capacity Not Published 19.1 qt Crankcase Capacity Not Published 8.5 qt Transmission / Hydraulic System Capacity Not Published 23.8 gal Front Axle Fluid Capacity Not Published 18.4 qt ▶ PTO & HitchPTO Type Fully independent hydraulic PTO Independent PTO Rear 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) 540/540E/1000 rpm (Reversible shaft) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 7294.9 lb Hitch Lift Capacity (at 24”) 5,620 lb 6006.8 lb Lift Control Type Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) Position/Draft ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) Power shuttle & Hi-Lo shift No. of Speeds 12F/12R (standard); 20F/20R with creeper (optional) F32 x R32 w/Creep Max Travel Speed (Forward) 27 mph (4WD front axle); 20 mph (2WD front axle) 23 mph Max Travel Speed (Reverse) 27.25 mph (12x12, 4WD front axle, 18R34 tires) Not Published Clutch Not Published Wet multi-plate Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Hydraulic wet disc Wet, Multi disc Seat Suspension & Adjustability Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Air-ride full suspension seat Front Axle Type Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) MFWD (4WD) with inboard planetary final drives Front Axle Rating 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 163.1 in (2WD); 160.9 in (4WD) 175.2 in Overall Width 75.7 in 89.4 in Wheelbase 92.2 in (2WD); 89.9 in (4WD) 93.7 in Ground Clearance Not Published 16.7 in Min. Turn Radius without Brakes 134 in (optional 2WD front axle, w/o brakes) 159.5 in (left); 161 in (right) Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in 112.2 in ▶ WeightTractor Weight (Base) 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) 8940 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions Not Published R1 Agricultural - Front 2WD: 10.00-16; 4WD: 12.4-24 13.6-24 R1 Agricultural - Rear 18.4R34 (reference tire for OEM weights and dimensions) 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Not Published Loader Model 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) TL115SL Loader Lift Height 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in TL115SL: 144.4 in Loader Lift Capacity (Full Height) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb TL115SL: 4,129.2 lb Loader Breakout Force 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) TL115SL: 6,025.2 lb ▶ WarrantyWarranty Length & Coverage Not Published Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
