New Holland Powerstar 90 vs John Deere 5520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

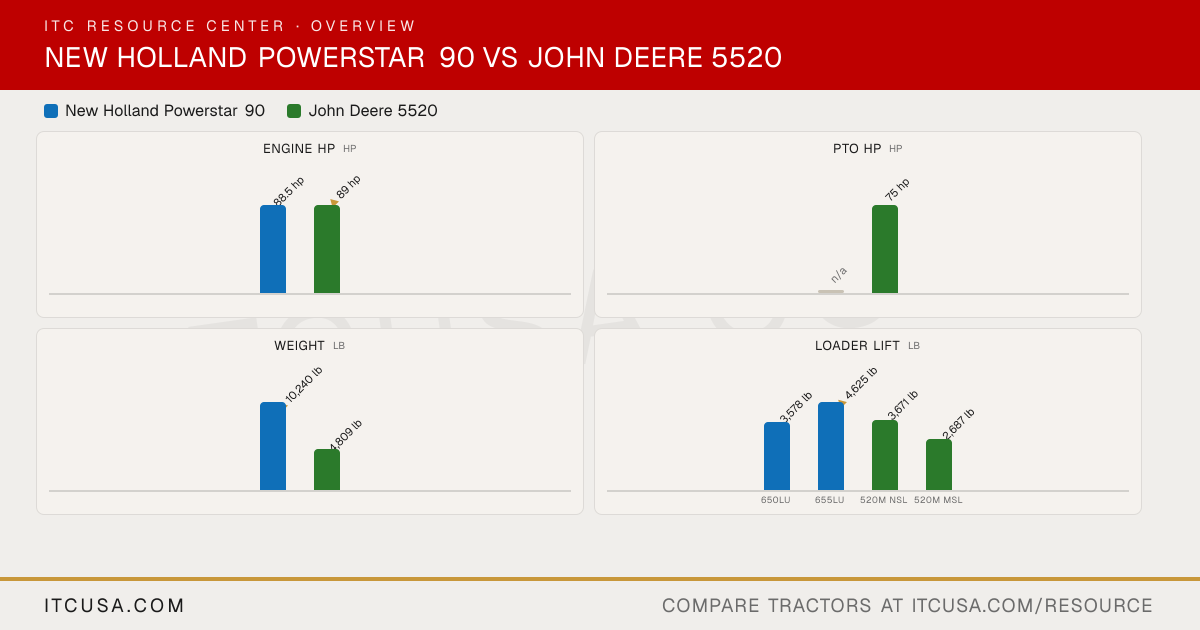

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
New HollandPowerstar 90
John Deere5520
Engine Manufacturer
FPT
John Deere
Engine Model
F36
4045T
Engine Type
4-cylinder diesel, turbocharged and aftercooled
4-cylinder turbocharged diesel
No. of Cylinders
4
4
Displacement
219.7 in³
278 in³
Rated Engine Speed
2300 rpm
2400 rpm
Engine Power (Gross)
88.5 hp
89 hp
PTO Power
Not Published
75 hp
Engine Emissions Constraints
Stage V (ECOBlue Compact HI-eSCR + Light CEGR)
Not Published
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Not Published
Not Published
Fuel System
Common rail fuel injection
Not Published
Alternator
Not Published
40 A
Pump Type
Open center, dual pumps: implement pump plus dedicated steering pump
Tandem gear pump
Implement Flow
21.7 gpm
15.9 gpm
Steering Flow
9.7 gpm
6.6 gpm
Total Hydraulic Flow
31.4 gpm (21.7 + 9.7, computed)
22.5 gpm (15.9 + 6.6, computed)
Overall Hydraulic Pump Flow
31.4 gpm (21.7 + 9.7, computed)
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
15.9 gpm
No. of Standard Remote Valves
2 rear remotes (four couplers)
2 to 3 rear
No. of Optional Remote Valves
1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter)
Not Published
Fuel Tank Capacity
34.3 gal
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
Coolant Capacity
Not Published
11.4 qt
Crankcase Capacity
Not Published
9 qt
Transmission / Hydraulic System Capacity
Not Published
10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
