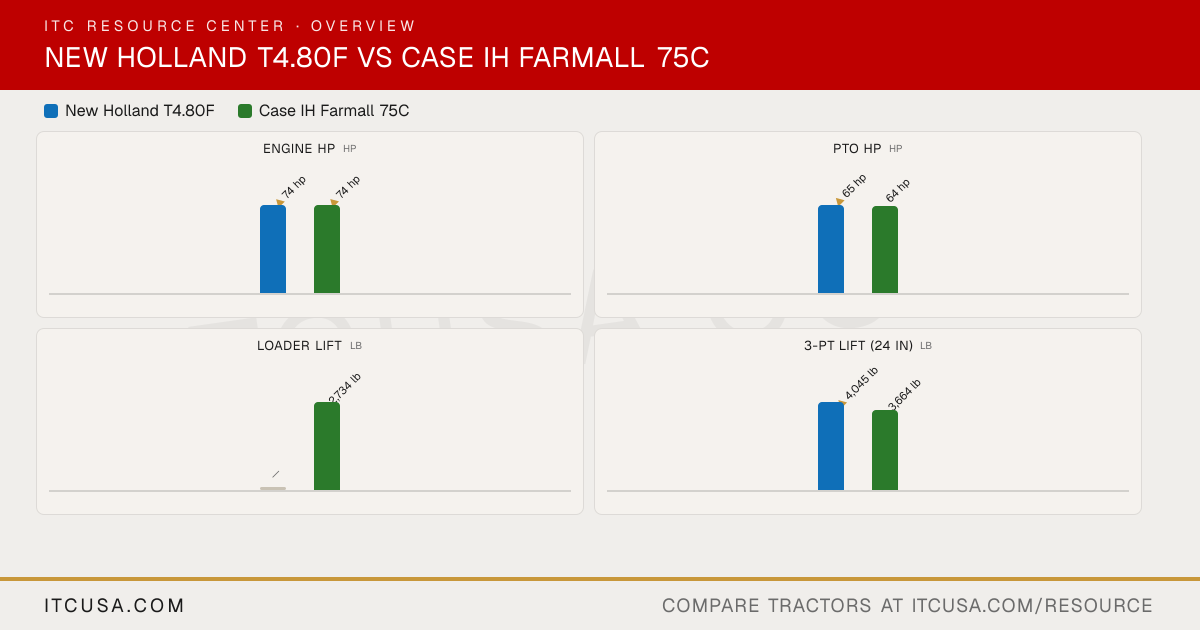

▶ EngineEngine Manufacturer FPT Industrial FPT Engine Model F34 Not Published Engine Type 4-cylinder diesel, Smart Wastegate Turbo, intercooled Turbocharged diesel No. of Cylinders 4 4 Displacement 207 in³ 207.5 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 65 hp 61 hp Engine Emissions Constraints Tier 4B Final Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Common-rail fuel injection Common rail Alternator Not Published Not Published ▶ HydraulicsPump Type Dual-pump, open center Dual gear pumps Implement Flow 16.9 gpm (standard); 21.1 gpm (optional, cab) 12.9 gpm Steering Flow 9.2 gpm 7.3 gpm Total Hydraulic Flow 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) Not Published Overall Hydraulic Pump Flow 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves ROPS: 3+2 (10 outlets); CAB: 4 (8 outlets) 1 ▶ Fluid CapacityFuel Tank Capacity ROPS: 21.4 gal; CAB: 27.5 gal 23.8 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Electrohydraulic wet clutch (std on cab; opt on ROPS) Independent PTO Rear 540/540E (std); 540/540E/1000 and ground speed (opt) 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category I/II Hitch Lift Capacity 5,553 lb Not Published Hitch Lift Capacity (at 24”) Not Published 3,956 lb Lift Control Type Mechanical draft control with Lift-O-Matic system (standard); electronic draft control (optional, cab) Mechanical draft control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type ROPS: 16x16 Shuttle Command, 32x16 Dual Command; CAB: 16x16 Power Shuttle, 32x16 Dual Command Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) No. of Speeds 16F/16R; 32F/16R Standard: 12 forward and 12 reverse; Optional creeper: 20 forward and 20 reverse Max Travel Speed (Forward) 25 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch Wet clutch Differential Lock & Limited Slip Options Electro-hydraulic differential lock Mechanical; MFD front axle with limited slip ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Hydrostatic power steering Brakes Oil-immersed brakes Hydraulic wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 4WD front axle MFD with limited slip; electrohydraulic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 54.3 in 76 in Wheelbase 85.8 in 84 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 95.0 in Not Applicable Height to Top of ROPS (folded) Not Published Not Applicable Height to Top of Cab Model Not Published 98 in Overall Length Not Published 145.8 in ▶ WeightTractor Weight (Base) Not Published 6,548 lb (weight w/o ballast) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 320/85R28 (T4F), 360/70R24 (T4F low-profile); other rear tires available 18.4R34 rear R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published L565 Loader Model Not Published L565 Loader Lift Height Not Published L565: 105 in Loader Lift Capacity (Full Height) Not Published L565: 2,734 lb Loader Breakout Force Not Published L565: 3,527 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
