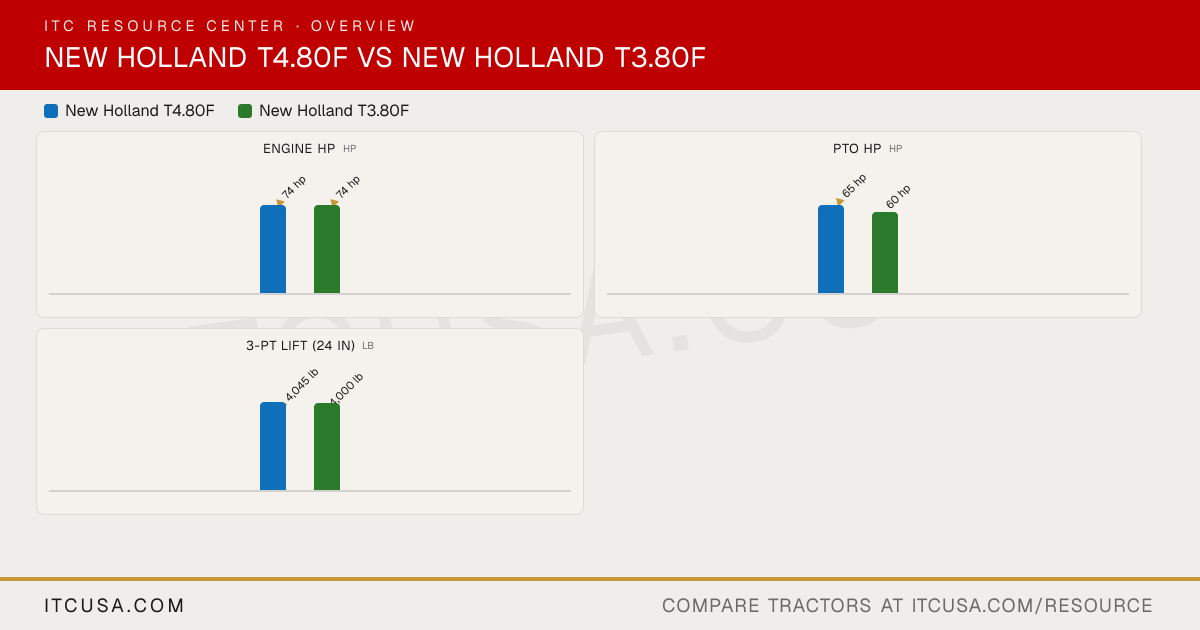

▶ EngineEngine Manufacturer FPT Industrial Not Published Engine Model F34 S8000 Engine Type 4-cylinder diesel, Smart Wastegate Turbo, intercooled Turbocharged, intercooled 3-cylinder diesel No. of Cylinders 4 3 Displacement 207 in³ 179 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 65 hp 60 hp Engine Emissions Constraints Tier 4B Final Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Common-rail fuel injection Common rail fuel injection Alternator Not Published Not Published ▶ HydraulicsPump Type Dual-pump, open center Dual-pump Implement Flow 16.9 gpm (standard); 21.1 gpm (optional, cab) 12.6 gpm Steering Flow 9.2 gpm 7.6 gpm Total Hydraulic Flow 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) 20.2 gpm Overall Hydraulic Pump Flow 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) 20.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves ROPS: 3+2 (10 outlets); CAB: 4 (8 outlets) 3 ▶ Fluid CapacityFuel Tank Capacity ROPS: 21.4 gal; CAB: 27.5 gal Not Published Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Electrohydraulic wet clutch (std on cab; opt on ROPS) Not Published PTO Rear 540/540E (std); 540/540E/1000 and ground speed (opt) 540/540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Not Published Hitch Lift Capacity 5,553 lb Not Published Hitch Lift Capacity (at 24”) Not Published 4,000 lb Lift Control Type Mechanical draft control with Lift-O-Matic system (standard); electronic draft control (optional, cab) Lift-O-Matic ▶ Transmission & DrivetrainTransmission Type ROPS: 16x16 Shuttle Command, 32x16 Dual Command; CAB: 16x16 Power Shuttle, 32x16 Dual Command 12x12 Mechanical Shuttle No. of Speeds 16F/16R; 32F/16R 12F/12R Max Travel Speed (Forward) 25 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch Not Published Differential Lock & Limited Slip Options Electro-hydraulic differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Straddle-deck platform Steering Not Published Not Published Brakes Oil-immersed brakes Not Published Seat Suspension & Adjustability Not Published Vinyl suspension seat Front Axle Type 4WD front axle 4WD front axle, electronic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 54.3 in 57 in Wheelbase 85.8 in 73 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 95.0 in 97 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length Not Published 143 in ▶ WeightTractor Weight (Base) Not Published 5,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 320/85R28 (T4F), 360/70R24 (T4F low-profile); other rear tires available Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published 320/70R20 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model Not Published Not Published Loader Lift Height Not Published Not Published Loader Lift Capacity (Full Height) Not Published Not Published Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
