Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

NewHollandT5.105

n/a

KubotaM5-111

Comparison loaded for 2 tractors.

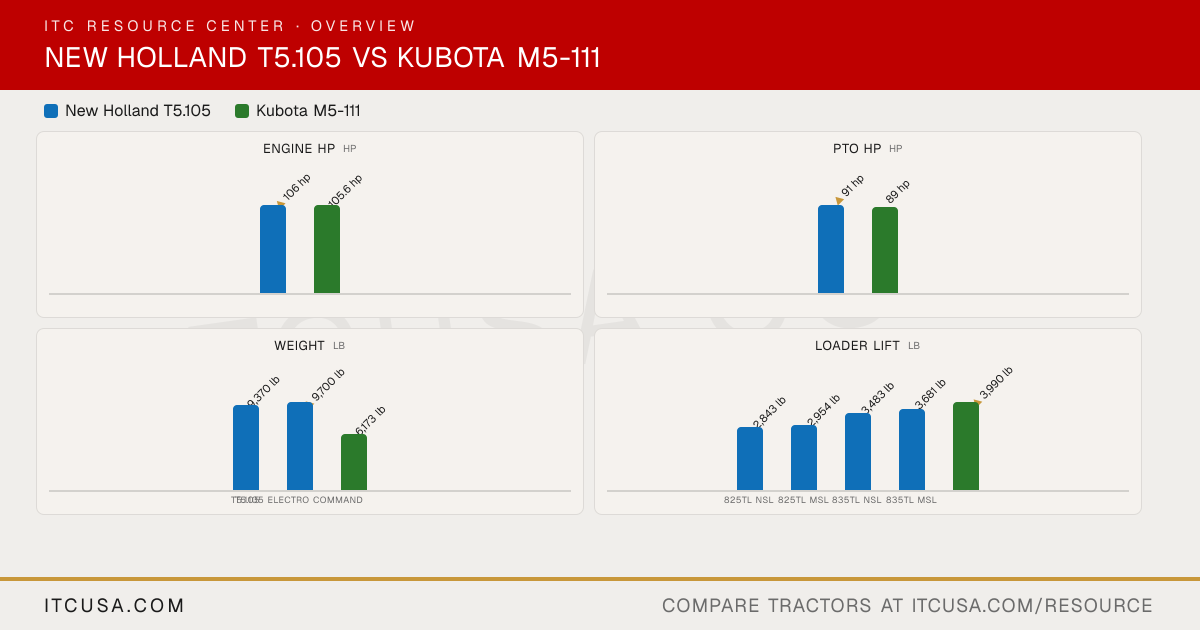

The headline numbers at a glance.

New Holland T5.105Kubota M5-111

Engine HPhp

▲106 hp

105.6 hp

PTO HPhp

▲91 hp

89 hp

Weightlb

9,370 lb

▲9,700 lb

6,173 lb

T5.105T5.105 Electro Command

Loader Liftlb

2,843 lb

2,954 lb

3,483 lb

3,681 lb

▲3,990 lb

825TL NSL825TL MSL835TL NSL835TL MSL

3-Pt Lift (24 in)lb

▲6,393 lb

5,181 lb

T5.105T5.105 Electro Command

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandT5.105	KubotaM5-111


Engine Manufacturer	FPT	Kubota
Engine Model	F5D	V3800CR-TIEF4
Engine Type	4-cylinder diesel	4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel
No. of Cylinders	4	4
Displacement	207 in³	230 in³
Rated Engine Speed	2300 rpm	2400 rpm
Engine Power (Gross)	106 hp	105.6 hp
PTO Power	91 hp	89 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry paper, dual element, 8 in diameter, with pre-cleaner
Fuel System	Not Published	Common rail direct injection
Alternator	120 A	60 A, 12 V

Pump Type	Gear pumps	Gear pump
Implement Flow	T5.105: 16.1 gpm (21.1 gpm optional); T5.105 Electro Command: 21.1 gpm (16.1 gpm optional)	15.9 gpm
Steering Flow	T5.105: 10.0 gpm (11.4 gpm optional); T5.105 Electro Command: 11.4 gpm (10.0 gpm optional)	5.4 gpm
Total Hydraulic Flow	T5.105: 26.1 gpm (16.1 + 10.0, computed); T5.105 Electro Command: 32.5 gpm (21.1 + 11.4, computed)	21.3 gpm
Overall Hydraulic Pump Flow	T5.105: 26.1 gpm (16.1 + 10.0, computed); T5.105 Electro Command: 32.5 gpm (21.1 + 11.4, computed)	21.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	15.9 gpm
No. of Standard Remote Valves	2 (3 optional)	1 standard (3 maximum)
No. of Optional Remote Valves	Not Published	2 optional (3 maximum)

Fuel Tank Capacity	37 gal	27.7 gal
Coolant Capacity	Not Published	11 qt
Crankcase Capacity	Not Published	11.3 qt
Transmission / Hydraulic System Capacity	Not Published	15.9 gal
Front Axle Fluid Capacity	Not Published	6.3 qt (differential) plus 3.7 qt (each bevel gear case)

PTO Type	Independent, electro-hydraulic clutch	Live-independent PTO, electro-hydraulic clutch with brake
PTO Rear	540/1000	540 rpm (540/540E on 12-speed models)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category II
Hitch Lift Capacity	Not Published	7055 lb (8860 lb optional)
Hitch Lift Capacity (at 24”)	T5.105: 6,393 lb (10,452 lb with 2 optional rams); T5.105 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2)	5181 lb (8-speed); 7275 lb (12- and 24-speed)
Lift Control Type	Electronic draft control	Position, draft (top link sensing) and mixed control

Transmission Type	T5.105: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.105 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional)	Fully synchronized main gear shift with electro-hydraulic shuttle (Hi-Lo dual speed on HDC24)
No. of Speeds	T5.105: 12F/12R (20F/20R or 24F/24R optional); T5.105 Electro Command: 16F/16R (32F/32R optional)	8 forward, 8 reverse (8-speed models); 12 forward, 12 reverse (12-speed models); 24 forward, 24 reverse (HDC24)
Max Travel Speed (Forward)	Not Published	18.6 mph (8-speed); 23.6 mph (12-speed); 23.4 mph (24-speed)
Max Travel Speed (Reverse)	Not Published	18.4 mph (8-speed); 23.5 mph (12-speed)
Clutch	Not Published	Multiple wet disc
Differential Lock & Limited Slip Options	Electro-hydraulic rear differential lock; limited slip front	Limited slip differential (front); mechanical differential lock (rear)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Hydraulic wet disc	Hydraulic wet disc
Seat Suspension & Adjustability	Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available	Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest
Front Axle Type	Heavy-duty 4WD front axle (standard)	Bevel gear type with 55 degree turning angle (4WD)
Front Axle Rating	4,500 lb (in-action capacity at 4 mph)	5730 lb
Drawbar Capacity	Not Published	3300 lb

Overall Length with 3-Point Hitch	T5.105: 163.8 in; T5.105 Electro Command: 165.0 in	155.9 in
Overall Width	82.6 in	79.1 in
Wheelbase	92.5 in	88.6 in
Ground Clearance	Not Published	19.7 in
Min. Turn Radius without Brakes	Not Published	13.8 ft
Height to Top of ROPS	Not Published	99.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	T5.105: 105.4 in; T5.105 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab)	101.2 in

Tractor Weight (Base)	T5.105: 9,370 lb; T5.105 Electro Command: 9,700 lb	6173 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30
R1 Agricultural - Front	Not Published	12.4-24
R1 Agricultural - Rear	Not Published	18.4-30
R3 Turf - Front	Not Published	9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears)
R3 Turf - Rear	Not Published	18.4-26 R3 or 19.5L-24 R3
R4 Industrial - Front	Not Published	9.5L-15 F2 (rib front paired with the R4 rear)
R4 Industrial - Rear	Not Published	19.5L-24 R4

Quick Attach Loader System	Skid-steer-style or European-style	Quick coupler standard (Euro type optional); quick-mount loader attach and detach without tools; single-lever hydraulic hose quick coupler optional
Loader Model	825TL; 835TL (each NSL or MSL)	LA1854
Loader Lift Height	825TL: 138 in; 835TL: 146 in	145.7 in (height position); 131.9 in (power position)
Loader Lift Capacity (Full Height)	825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb	3990 lb (height position); 4144 lb (power position)
Loader Breakout Force	825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb	LA1854: 5,501 lb (height position); 6,470 lb (power position)

Warranty Length & Coverage	Not Published	24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
