New Holland T5.140 vs John Deere 5130M | Side-by-side comparison | ITC Resource Center
Compare Tractors

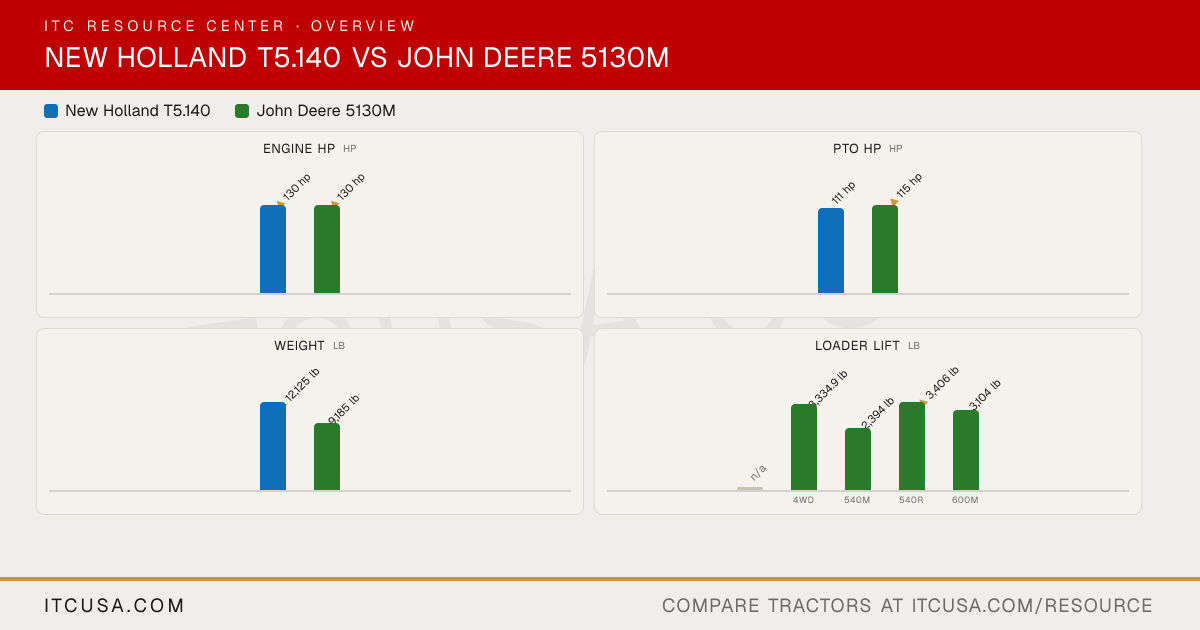

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
24.9 mph; PowrQuad PLUS 16F/16R (standard) or Powr8 32F/16R (optional)
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Electro-hydraulic
Differential Lock & Limited Slip Options
Terralock Auto Diff and Auto 4WD (standard); electro-hydraulic front and rear differential lock
Electro-hydraulic rear differential lock
Frame Type
Not Published
Cast iron mid-frame design
Steering
Power steering
Power steering
Brakes
Hydraulic wet disc
Hydraulic wet disk brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability
Comfort seat, low-frequency suspension, cloth (standard); Dynamic Comfort or Auto Comfort seats with heating and active ventilation (optional); instructor seat optional
Mechanical suspension seat standard; air suspension seat optional; premium air suspension seat (heated, low-frequency) optional
Front Axle Type
Class 1.75 heavy-duty 4WD front axle (standard); Terraglide front axle suspension (optional)
MFWD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
3,197 lb
Overall Length with 3-Point Hitch
173 in (max, weight carrier to rear linkage)
Not Published
Overall Width
74 in (narrow); 90 in (standard)
Not Published
Wheelbase
98 in
92.5 in
Ground Clearance
Not Published
Not Published
Min. Turn Radius without Brakes
182 in (4WD / Terraglide suspended front axle; brake use not stated)
Not Published
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
106 in (low-profile roof, 540/65R34 tires)
Not Published
Tractor Weight (Base)
12,125 lb (minimum shipping weight, cab)
9,185 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural
R1 Agricultural - Front
Not Published
12.4R24
R1 Agricultural - Rear
Not Published
18.4R30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
12.5/80-18 in, 12PR R4 Bias
R4 Industrial - Rear
Not Published
19.5L-24 in, 10PR R4 Bias
Quick Attach Loader System
Not Published
Not Published
Loader Model
800TL Series (wide frame)
520M (4WD only); 540M; 540R; 600M
Loader Lift Height
Not Published
520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in, MSL 148-153 in
Loader Lift Capacity (Full Height)
Not Published
520M (4WD): NSL 3,334.9-3,611.6 lb, MSL 2,460.1-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117.3-3,309.1 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb, MSL 3,891-4,085 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Not Published
24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)
