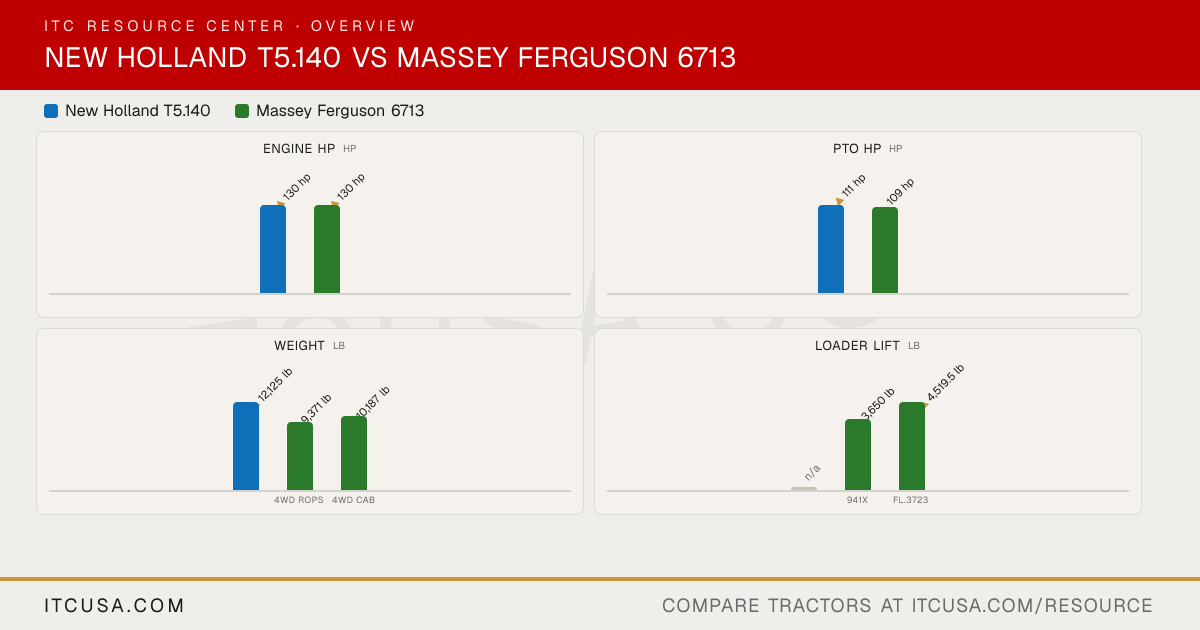

▶ EngineEngine Manufacturer FPT Industrial AGCO Power Engine Model FPT NEF4 44 AWFC Engine Type 4-cylinder diesel 4-cylinder, intercooled turbocharged diesel No. of Cylinders 4 4 Displacement 273 in³ 268.5 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 130 hp 130 hp PTO Power 111 hp 109 hp Engine Emissions Constraints Stage V Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Not Published Not Published Fuel System Not Published High-pressure common-rail direct injection (HPCR) Alternator Standard: 120 A, 12 V; Optional: 200 A, 12 V 80 A, 12 V ▶ HydraulicsPump Type Closed-center load-sensing pump plus separate steering and services pump Two high-pressure gear pumps Implement Flow 21.1 gpm 15.1 gpm Steering Flow 9.6 gpm Not Published Total Hydraulic Flow Not Published 25.9 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Closed center load sensing (CCLS) Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Up to 4 rear remote valves (with diverter); up to 3 mid-mount valves 3rd valve optional ▶ Fluid CapacityFuel Tank Capacity 47.5 gal 38.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Direct-drive PTO with push-pull engagement and Soft Start Independent, electro-hydraulic engagement via switch PTO Rear 540/540E/1000 rpm (540 at 1969, 540E at 1546, 1000 at 1893 engine rpm) 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 12,125 lb (at ball ends) Not Published Hitch Lift Capacity (at 24”) 10,228 lb 9,390 lb Lift Control Type Electronic draft control (EDC) Electronic linkage control (ELC) ▶ Transmission & DrivetrainTransmission Type Dynamic Command: 24x24 dual-clutch 8-step semi-powershift; Auto Command: continuously variable transmission (CVT) 12F x 12R, 2-range power shuttle with electrohydraulic shuttle lever No. of Speeds Dynamic Command: 24F/24R; Auto Command: continuously variable 12 forward, 12 reverse Max Travel Speed (Forward) Dynamic Command: 25 mph; Auto Command: 25 mph (31 mph optional) 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Terralock automatic differential lock and automatic 4WD (standard) Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Cab: tilt and telescopic steering; platform: tilt steering Brakes Hydraulic wet disc Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Standard: low-frequency suspension seat, cloth; optional: heated seat with active ventilation; instructor seat optional Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests Front Axle Type Class 1.75 heavy-duty 4WD front axle (standard); Terraglide suspension (optional) Heavy-duty 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 74 in (narrow); 90 in (standard) 64.8 in Wheelbase 98 in 98.4 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 182 in (4WD, Terraglide suspended front axle; brake use not stated) Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 106 in (low-profile roof, 540/65R34 tires) Not Published Overall Length 173 in (max, weight carrier to rear linkage) Not Published ▶ WeightTractor Weight (Base) Not Published 4WD ROPS: 9,371 lb; 4WD Cab: 10,187 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Rear: 460/85R34 standard radial R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 800TL Series (wide frame) 941X; 946X; FL.3723; FL.3819 Loader Lift Height Not Published 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in Loader Lift Capacity (Full Height) Not Published 941X: 2,220 lb; FL.3723: 2,840 lb (to full height) Loader Breakout Force Not Published FL.3723: 5,819 lb; FL.3819: 4,893 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
