New Holland T5.140 vs New Holland T5.120 | Side-by-side comparison | ITC Resource Center
Compare Tractors

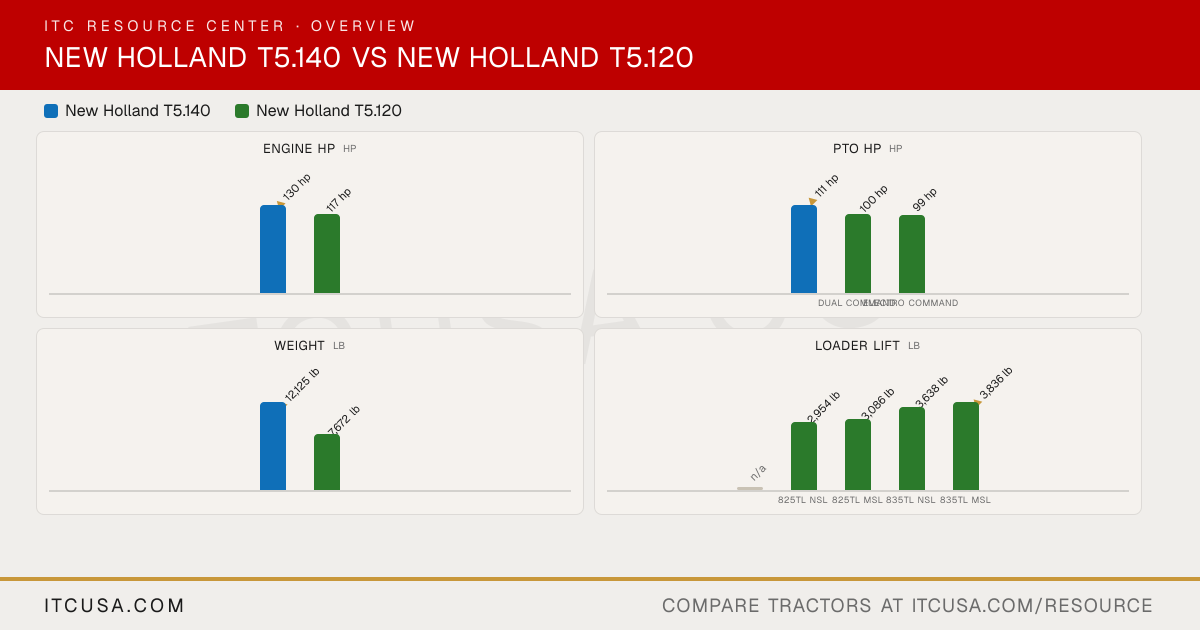

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Terralock Auto Diff and Auto 4WD (standard); electro-hydraulic front and rear differential lock
Electro-hydraulic rear differential lock; TerraLock automatic 4WD and differential lock engagement optional on Electro Command
Frame Type
Not Published
Not Published
Steering
Power steering
Power steering
Brakes
Hydraulic wet disc
Hydraulic wet disc
Seat Suspension & Adjustability
Comfort seat, low-frequency suspension, cloth (standard); Dynamic Comfort or Auto Comfort seats with heating and active ventilation (optional); instructor seat optional
Not Published
Front Axle Type
Class 1.75 heavy-duty 4WD front axle (standard); Terraglide front axle suspension (optional)
4WD front axle, class 1.5 HD (TerraGlide suspended 4WD front axle optional on Electro Command)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
173 in (max, weight carrier to rear linkage)
Dual Command: 160.9 in; Electro Command: 165 in
Overall Width
74 in (narrow); 90 in (standard)
Dual Command: 75.7 in
Wheelbase
98 in
Dual Command: 89.9 in; Electro Command: 93.7 in
Ground Clearance
Not Published
Not Published
Min. Turn Radius without Brakes
182 in (4WD / Terraglide suspended front axle; brake use not stated)
