New Holland T5.140 vs TYM T130 | Side-by-side comparison | ITC Resource Center
Compare Tractors

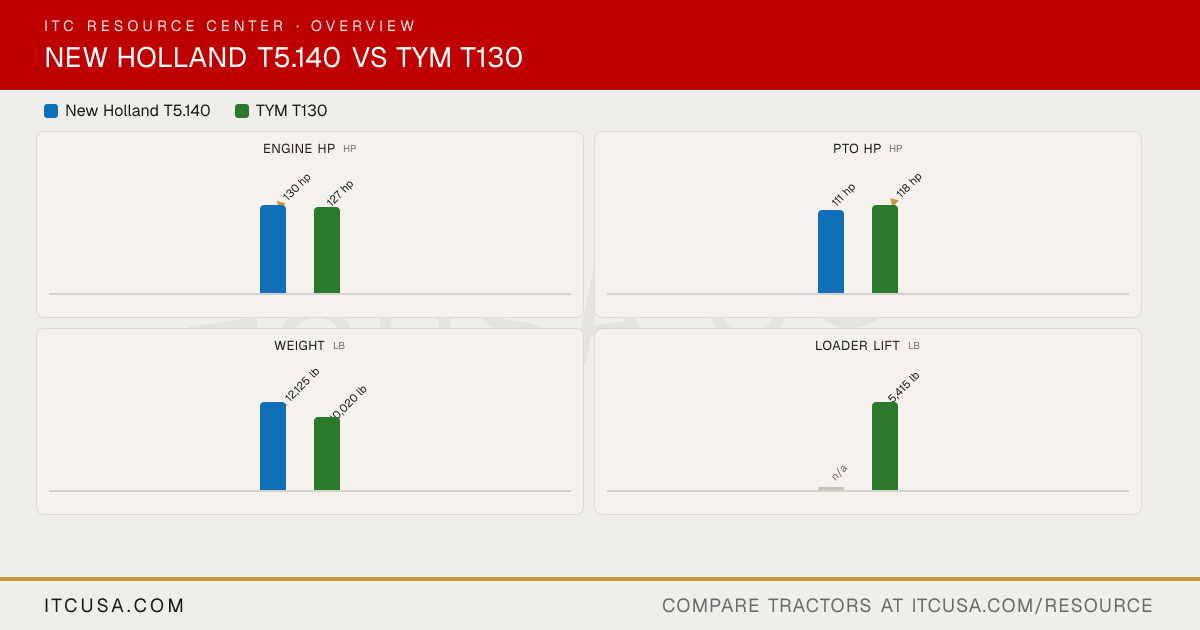

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Terralock Auto Diff and Auto 4WD (standard); electro-hydraulic front and rear differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Hydraulic wet disc
Wet, Multi disc
Seat Suspension & Adjustability
Comfort seat, low-frequency suspension, cloth (standard); Dynamic Comfort or Auto Comfort seats with heating and active ventilation (optional); instructor seat optional
Air-ride full suspension seat
Front Axle Type
Class 1.75 heavy-duty 4WD front axle (standard); Terraglide front axle suspension (optional)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
173 in (max, weight carrier to rear linkage)
176.8 in
Overall Width
74 in (narrow); 90 in (standard)
92.9 in
Wheelbase
98 in
102 in
Ground Clearance
Not Published
16.1 in
Min. Turn Radius without Brakes
182 in (4WD / Terraglide suspended front axle; brake use not stated)
186.6 in (left); 189 in (right)
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
106 in (low-profile roof, 540/65R34 tires)
115.7 in
Tractor Weight (Base)
12,125 lb (minimum shipping weight, cab)
10020 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
Not Published
380/85 R28
R1 Agricultural - Rear
Not Published
460/85 R38 (18.4R38)
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
Not Published
Not Published
Loader Model
800TL Series (wide frame)
TL130SL
Loader Lift Height
Not Published
TL130SL: 162 in
Loader Lift Capacity (Full Height)
Not Published
TL130SL: 5,415 lb
Loader Breakout Force
Not Published
TL130SL: 6,618 lb
Warranty Length & Coverage
Not Published
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
