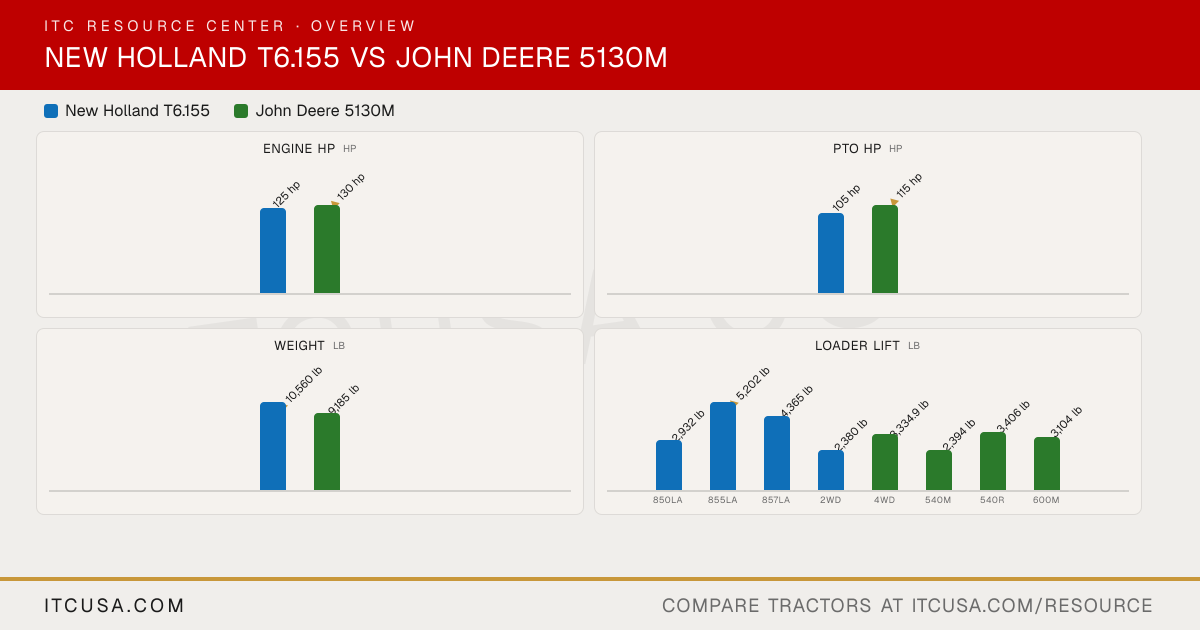

▶ EngineEngine Manufacturer FPT John Deere Engine Model NEF PowerTech 4045 EWL Engine Type 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel, electronic fuel delivery control Diesel, turbocharged with intercooler, 4-valve HPCR No. of Cylinders 4 4 Displacement 274 in³ 276 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 125 hp 128.5 hp PTO Power 105 hp 113.3 hp Engine Emissions Constraints Stage V/Final Tier 4 Cooling System Type Not Published Not Published Air Cleaner Not Published Dry type air cleaner with safety element Fuel System High-pressure common-rail, electronic fuel delivery control High-pressure common rail (HPCR), 4-valve Alternator 150 A 120 A, 12 V ▶ HydraulicsPump Type Electro Command: fixed-displacement gear pump (CCLS optional); Dynamic Command, Auto Command: closed-center load-sensing (CCLS) pump Tandem gear pump Implement Flow Value: 21.1 gpm; Plus, Elite: 29.9 gpm 18.4 gpm Steering Flow 12.4 gpm (17.2 gpm optional pump with Class 4 front axle) 6.3 gpm Total Hydraulic Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) 25.6 gpm Overall Hydraulic Pump Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) 25.6 gpm Hydraulic System Type Electro Command: fixed displacement, closed-center (CCLS optional); Dynamic Command: closed-center load-sensing (CCLS); Auto Command: CCLS Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 mechanical (Value, Plus, Elite) 2 (rear); 2 (mid) No. of Optional Remote Valves Rear: 3 or 4 mechanical, or 3 or 4 electro-hydraulic (Elite); mid-mount: 2 or 3, mechanical or electronic Up to 3 total (rear); up to 3 total (mid) ▶ Fluid CapacityFuel Tank Capacity 52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal 43.7 gal (Standard Cab) Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft Independent rear PTO, electro-hydraulic clutch PTO Rear 540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm) 540/540E standard; 540/540E/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II (convertible to I) Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb 6,975 lb standard; 7,868 lb optional Lift Control Type Electronic draft control Electrohydraulic ▶ Transmission & DrivetrainTransmission Type Electro Command: 16x16 semi-powershift (standard), with 17x16 economy, 17x16 31 mph, 32x32 creeper and auto-shift options; Dynamic Command: 23x23 semi-powershift, with 24x24 economy, 31 mph and creeper options PowrQuad PLUS 16F/16R or Powr8 32F/16R (cab only) No. of Speeds Electro Command: 16F/16R, or 17F/16R economy or high-speed, 32F/32R with creeper; Dynamic Command: 23F/23R, or 24F/24R optional 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) Max Travel Speed (Forward) 25 mph (Electro Command 16x16 and Dynamic Command 23x23 standard); 31 mph (17x16 high-speed and Dynamic Command 24x24 31 mph options, FWD only); 19 mph (2WD) 24 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet Differential Lock & Limited Slip Options Terralock automatic traction management: automatic four-wheel drive engagement and front and rear differential locks Electro-hydraulic rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame design Steering Not Published Power steering Brakes Not Published Hydraulic wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Standard: low-frequency suspension seat; optional: heated low-frequency suspension seat, or heated and ventilated active-suspension seat; swiveling backrest; suspended cab optional Mechanical-suspension seat, standard; air-suspension seat, optional; heated low-frequency air-suspension seat, optional Front Axle Type Standard FWD axle (Class 3 and 4); optional: Terraglide suspended FWD axle or SuperSteer FWD axle; heavy-duty 2WD axle available on Electro Command MFWD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 3,197 lb ▶ Dimensions & ManeuverabilityOverall Width 89.8 in (minimum; 91 in with 650/65R38 tires) Not Published Wheelbase Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in 92.5 in Ground Clearance 18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38) Not Published Min. Turn Radius without Brakes 15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle) 13.1 ft Height to Top of ROPS Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Applicable Height to Top of Cab Model 115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (suspended cab) Not Published Overall Length 204.3 in (front linkage to rear linkage) Not Published ▶ WeightTractor Weight (Base) 10,560 lb (minimum shipping weight, cab FWD, less ballast) 9,185 lb Weight with ROPS and Loader Not Published Not Applicable Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (suspended cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires R1 Agricultural R1 Agricultural - Front Not Published 12.4R24 R1 Agricultural - Rear 18.4R38 (reference tire; also 16.9R38, 520/70R38, 600/65R38, 650/65R38, 480/70R38, 540/65R38, 650/60R38) 18.4R30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 in, 12PR R4 Bias R4 Industrial - Rear Not Published 19.5L-24 in, 10PR R4 Bias ▶ Loader & AttachmentsQuick Attach Loader System Euro style (850LA, 855LA, 857LA); Euro or skid steer style (810LA) Not Published Loader Model FWD: 850LA (NSL), 855LA (MSL); SuperSteer FWD: 857LA (MSL); 2WD: 810LA (NSL) 520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only) Loader Lift Height 850LA: 13.5 ft; 855LA: 13.5 ft; 857LA: 13.9 ft; 810LA (2WD): 11.9 ft (to pivot pin, base equipment tires) 520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in Loader Lift Capacity (Full Height) 850LA: 2,932 lb; 855LA: 5,202 lb; 857LA: 4,365 lb; 810LA (2WD): 2,380 lb (to maximum height, measured 31.5 in forward of the pivot pin, with rear counterbalance) 520M (4WD): NSL 3,335-3,612 lb, MSL 2,460-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117-3,309 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb Loader Breakout Force 850LA: 4,673 lb; 855LA: 5,974 lb; 857LA: 4,894 lb; 810LA (2WD): 3,439 lb (measured 31.5 in forward of the pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours, whole-machine standard agricultural equipment term
