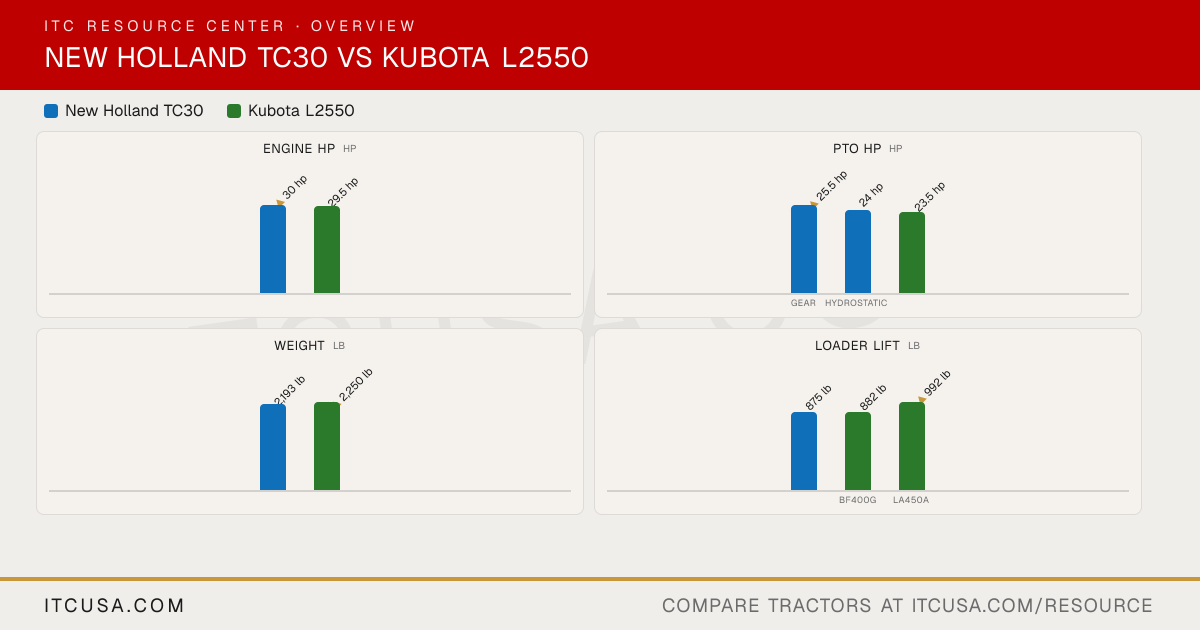

▶ EngineEngine Manufacturer Shibaura Kubota Engine Model N843 F (2WD), DT (4WD): D1402-DI-A; GST (4WD): D1402-DI-AE Engine Type 3-cylinder naturally aspirated diesel Direct injection, vertical, water-cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 91.3 in³ 85.1 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 30 hp 29.5 hp PTO Power Gear: 25.5 hp; Hydrostatic: 24 hp 23.5 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Water-cooled, pressurized radiator Air Cleaner Not Published Paper element Fuel System Not Published Direct injection Alternator Not Published 35 A, 12 V ▶ HydraulicsPump Type Gear Not Published Implement Flow 6.2 gpm 6.7 gpm Steering Flow 3.8 gpm 2.8 gpm Total Hydraulic Flow 10.0 gpm (6.2 + 3.8, computed) Not Published Overall Hydraulic Pump Flow 10.0 gpm (6.2 + 3.8, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Up to 3 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 7.7 gal Coolant Capacity Not Published 4.9 qt Crankcase Capacity Not Published 6.0 qt Transmission / Hydraulic System Capacity Not Published F (2WD), DT (4WD): 7.5 gal; GST (4WD): 7.1 gal Front Axle Fluid Capacity Not Published 6.8 qt (4WD) ▶ PTO & HitchPTO Type Live (FWD); transmission-driven (2WD gear) Continuous running (live PTO with dual clutch if equipped) PTO Rear Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm 540/1000 rpm Mid-PTO Availability Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm Optional mid-PTO, 1080/2000 rpm (USA No. 5, Kubota 10-tooth) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 2425 lb Hitch Lift Capacity (at 24”) 1,635 lb 1810 lb Lift Control Type Not Published Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Gear: 9x3; Hydrostatic: 3-range (FWD only) F (2WD), DT (4WD): Mechanical shuttle, 8F/8R; GST (4WD): Glide Shift Transmission, 8F/8R No. of Speeds Gear: 9F/3R; Hydrostatic: 3 ranges 8F/8R Max Travel Speed (Forward) Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires) F (2WD), DT (4WD): 13.5 mph; GST (4WD): 13.3 mph Max Travel Speed (Reverse) Not Published F (2WD), DT (4WD): 12.2 mph; GST (4WD): 11.9 mph Clutch Not Published F (2WD), DT (4WD): Dry single plate or two plate (live PTO if equipped); GST (4WD): Dry single plate Differential Lock & Limited Slip Options Mechanical rear differential lock (heel pedal) Rear differential lock (bevel gear differential) ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post ROPS Steering Power steering F (2WD), DT (4WD): Recirculating ball manual steering or integral power steering (if equipped); GST (4WD): Integral type power steering Brakes Wet disc Wet disc type Seat Suspension & Adjustability Padded contoured seat on an inclined track Not Published Front Axle Type FWD (standard); 2WD (optional) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised) 109.1 in (w/o 3P) (without 3-point hitch) Overall Width 54.3 in (minimum, ag tires); 62 in (R4 tires) 51.4 in Wheelbase 63.0 in 64.6 in Ground Clearance Not Published F (2WD): 14.6 in; DT (4WD), GST (4WD): 13.6 in Min. Turn Radius without Brakes Not Published 7.5 ft Height to Top of ROPS 82.3 in (R4 tires) 79.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear) F (2WD): 2250 lb; DT (4WD): 2470 lb; GST (4WD): 2557 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5 Ag: 5.00-15 (2WD) or 7-16 (4WD) front, 11.2-24 rear R1 Agricultural - Front Not Published F (2WD): 5.00-15; DT (4WD), GST (4WD): 7-16 R1 Agricultural - Rear 11.2x24 11.2-24 R3 Turf - Front 24x8.50-14 Not Published R3 Turf - Rear 13.6x16 Not Published R4 Industrial - Front 25x8.50-14 Not Published R4 Industrial - Rear 15x19.5 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 7308 BF400G; LA450A Loader Lift Height 7308: 100.5 in BF400G: 93.7 in; LA450A: 95 in Loader Lift Capacity (Full Height) 7308: 875 lb BF400G: 882 lb; LA450A: 992 lb Loader Breakout Force 7308: 1,602 lb BF400G: 1654 lbf; LA450A: 1863 lbf ▶ WarrantyWarranty Length & Coverage Not Published Not Published
