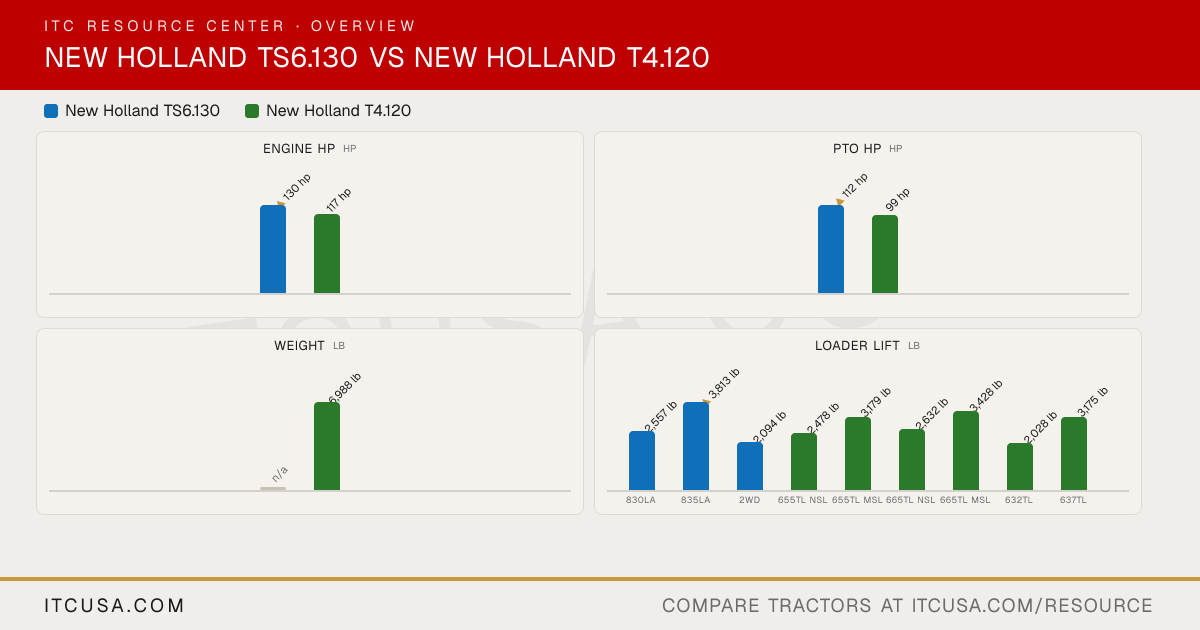

▶ EngineEngine Manufacturer FPT FPT Industrial Engine Model NEF F5G Engine Type 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel 4-cylinder diesel No. of Cylinders 4 4 Displacement 274 in³ 207 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 130 hp 117 hp PTO Power 112 hp 99 hp Engine Emissions Constraints Tier 4B/Final Tier 4B Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System High-pressure common rail fuel injection Electronic high-pressure common rail fuel injection Alternator 120 A Not Published ▶ HydraulicsPump Type Fixed-displacement pumps for steering, implement and auxiliary circuits, with a combining/diverter valve Open-center tandem gear pumps: implement pump plus steering and services pump Implement Flow 13 gpm (implement pump); 9 gpm auxiliary pump standard on Plus, optional on Value 16.9 gpm Steering Flow 7 gpm 9.7 gpm Total Hydraulic Flow 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) 26.6 gpm Overall Hydraulic Pump Flow 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) 26.6 gpm Hydraulic System Type Fixed-displacement pumps with combining/diverter valve; closed-center rear remote valves with flow control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 or 3 (base) No. of Optional Remote Valves Not Published Third rear remote (dealer-installed) ▶ Fluid CapacityFuel Tank Capacity 57.5 gal 30.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Hydraulic PTO with power shuttle transmissions; lever-engaged PTO with mechanical shuttle PTO Rear 540/1000 rpm 540/540E (12x12 base); 540/1000 (12x12 optional); 540/540E (24x24 Dual Command base); 540/1000 (24x24 Dual Command optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (flex link ends) Category II (flexible link ends) Hitch Lift Capacity 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two Not Published Hitch Lift Capacity (at 24”) Not Published 5,620 lb (7,351 lb with optional auxiliary lift ram) Lift Control Type Not Published 12x12: rear hitch control levers; Dual Command cab: Electronic Draft Control (EDC) mouse and fender switches; single-lever Lift-O-Matic Plus (optional on 12x12, standard on Dual Command ROPS) ▶ Transmission & DrivetrainTransmission Type 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional 12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command Hi-Lo powershift with electrohydraulic power shuttle, or 40x40 Dual Command with creeper (optional) No. of Speeds 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo) 12F/12R (standard); 20F/20R, 24F/24R or 40F/40R (optional) Max Travel Speed (Forward) 19 mph or 25 mph (25 mph 4WD only) 20 mph (12x12 and 20x20 creeper, standard; 25 mph transport option); 25 mph (24x24 and 40x40 Dual Command) Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock, pedal (12x12 models); electrohydraulic rear differential lock, rocker switch (Dual Command models) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Wet disc Seat Suspension & Adjustability Mechanical-suspension seat standard; air-suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) Cab: fabric mechanical-suspension seat or fabric air-suspension seat with swivel; full-size instructor seat available. ROPS: vinyl mechanical-suspension seat with armrests Front Axle Type Heavy-duty front axle (standard); 2WD (cab only) or 4WD Standard-duty, electronically engaged 4WD front axle; optional: standard-duty mechanically engaged 4WD, heavy-duty electronically engaged 4WD, or heavy-duty 2WD front axle Front Axle Rating Not Published 9,479 lb (standard-duty 4WD, in-action capacity at 4 mph); 10,361 lb (heavy-duty 4WD, in-action capacity at 4 mph) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 75.7 in Wheelbase Not Published 92.2 in (2WD); 89.9 in (4WD) Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 134 in (2WD heavy-duty front axle) Height to Top of ROPS Not Published 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 110.2 in 102.1 in Overall Length 184.7 in (4WD, with front weights); 184.5 in (2WD, with front weights) 163.1 in (2WD); 160.9 in (4WD) ▶ WeightTractor Weight (Base) 11,200 lb (shipping, 4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); 9,921 lb (2WD, cab) 6,988 lb (2WD ROPS); 7,672 lb (4WD ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-38 R1 rear with 14.9-28 R1 front (4WD) or 10.00-16 front (2WD) Ag: 11.2-24 front, 16.9-30 rear; 13.6-24 front, 16.9-34 rear; 12.4-24 front, 18.4-30 rear; 14.9-24 front, 18.4-34 rear; Turf: 13.6-16.1 front, 16.9-24 rear; Industrial: 12.5/80-18 front, 19.5L24 rear R1 Agricultural - Front 14.9-28 (4WD); 10.00-16 (2WD) 4WD: 11.2-24, 13.6-24, 12.4-24 or 14.9-24 (paired with 16.9-30, 16.9-34, 18.4-30 or 18.4-34 rears) R1 Agricultural - Rear 18.4-38 16.9-30, 16.9-34, 18.4-30 or 18.4-34 R3 Turf - Front Not Published 13.6-16.1 R3 Turf - Rear Not Published 16.9-24 R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer (SSL) or Euro style attachment couplers Skid-steer-style or Euro-style quick attach faceplate Loader Model 4WD: 830LA (NSL), 835LA (MSL); 2WD: 810LA (NSL) Factory-fit: 655TL (NSL or MSL), 665TL (NSL or MSL); field-fit: 632TL (NSL), 637TL (MSL) Loader Lift Height 830LA: 150.0 in; 835LA: 150.0 in; 810LA (2WD): 144.0 in (to pivot pin) 655TL NSL: 126 in; 655TL MSL: 125 in; 665TL NSL: 134 in; 665TL MSL: 135 in; 632TL: 134 in; 637TL: 134 in Loader Lift Capacity (Full Height) 830LA: 2,557 lb; 835LA: 3,813 lb; 810LA (2WD): 2,094 lb (to maximum height, measured 31.5 in forward of the pivot pin) 655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 665TL NSL: 2,632 lb; 665TL MSL: 3,428 lb (at 31.5 in from pivot point); 632TL: 2,028 lb; 637TL: 3,175 lb (to max height, 31.5 in from pivot point) Loader Breakout Force 830LA: 3,681 lb; 835LA: 3,968 lb; 810LA (2WD): 3,020 lb (measured 31.5 in forward of the pivot pin) 655TL NSL: 3,739 lb; 655TL MSL: 3,860 lb; 665TL NSL: 4,455 lb; 665TL MSL: 5,661 lb (at 31.5 in from bucket pivot point); 632TL: 3,351 lb; 637TL: 3,461 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
