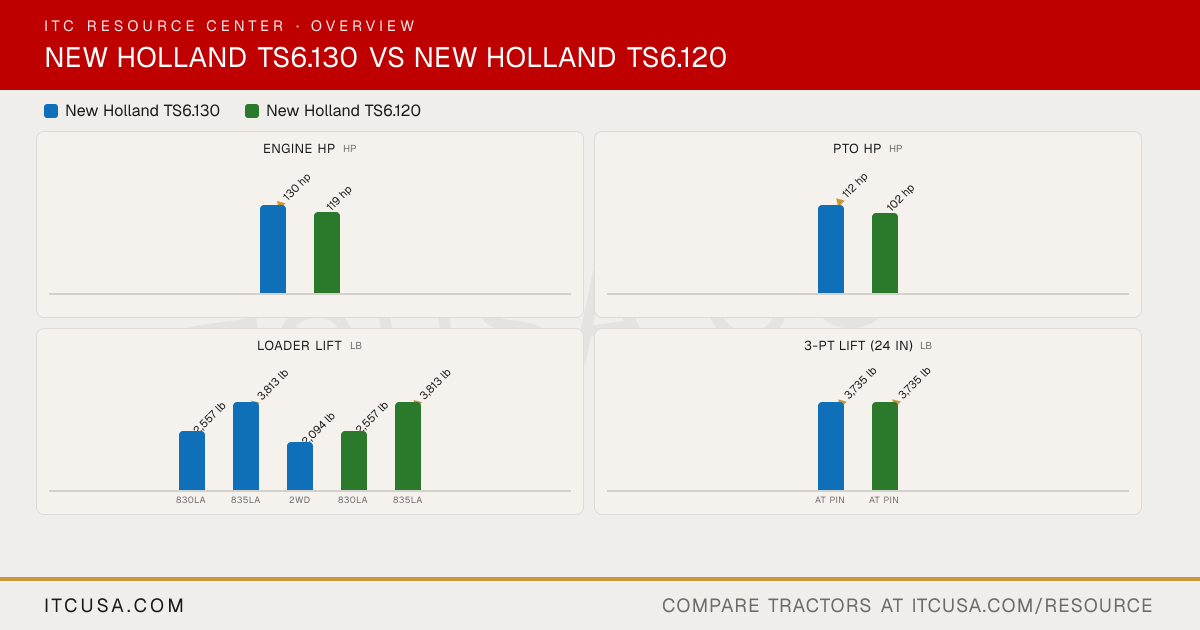

▶ EngineEngine Manufacturer FPT FPT Engine Model NEF NEF Engine Type 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel No. of Cylinders 4 4 Displacement 274 in³ 274 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 130 hp 119 hp PTO Power 112 hp 102 hp Engine Emissions Constraints Tier 4B/Final Tier 4B/Final Cooling System Type Not Published Not Published Air Cleaner Not Published Not Published Fuel System High-pressure common rail fuel injection High-pressure common rail fuel injection Alternator 120 A 120 A ▶ HydraulicsPump Type Fixed-displacement pumps for steering, implement and auxiliary circuits, with a combining/diverter valve Fixed-displacement pumps for steering, implement and auxiliary circuits, with a combining/diverter valve Implement Flow 13 gpm (implement pump); 9 gpm auxiliary pump standard on Plus, optional on Value 13 gpm (implement pump); 9 gpm auxiliary pump standard on Plus, optional on Value Steering Flow 7 gpm 7 gpm Total Hydraulic Flow 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) Overall Hydraulic Pump Flow 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) 29 gpm (with the 9 gpm auxiliary pump: standard on Plus, optional on Value) Hydraulic System Type Fixed-displacement pumps with combining/diverter valve; closed-center rear remote valves with flow control Fixed-displacement pumps with combining/diverter valve; closed-center rear remote valves with flow control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 57.5 gal 57.5 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Not Published PTO Rear 540/1000 rpm 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (flex link ends) Category II (flex link ends) Hitch Lift Capacity 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional; High-Clearance: 8x8 synchronized with left-hand mechanical shuttle (hydraulic shuttle optional) No. of Speeds 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo) 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo); High-Clearance: 8F/8R Max Travel Speed (Forward) 19 mph or 25 mph (25 mph 4WD only) 19 mph or 25 mph (25 mph 4WD only) Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Not Published Brakes Not Published High-Clearance: internal wet brakes (external drop box final drive) Seat Suspension & Adjustability Mechanical-suspension seat standard; air-suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) Mechanical-suspension seat standard; air-suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) Front Axle Type Heavy-duty front axle (standard); 2WD (cab only) or 4WD 4WD, Class 3 axle (cab or ROPS); High-Clearance: 4WD, electro-hydraulic on-the-go engagement, adjustable front tread 72 to 84 in Front Axle Rating Not Published Not Published Drawbar Capacity Not Published High-Clearance pintle hitch: 3,975 lb vertical load; 8,362 lb horizontal towing weight ▶ Dimensions & ManeuverabilityOverall Width Not Published Not Published Wheelbase Not Published 99.2 in (4WD, Standard Duty Class 3 axle); High-Clearance: 107.5 in Ground Clearance Not Published High-Clearance: 25.25 in (lowest part of front axle) Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 117.3 in; High-Clearance: 128.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 110.2 in 110.2 in Overall Length 184.7 in (4WD, with front weights); 184.5 in (2WD, with front weights) 184.7 in (4WD, with front weights); High-Clearance: 192.9 in (4WD, with front weights) ▶ WeightTractor Weight (Base) 11,200 lb (shipping, 4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); 9,921 lb (2WD, cab) 10,362 lb (shipping, 4WD, ROPS, flange axle); 11,002 lb (4WD, ROPS, bar axle); 11,200 lb (4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); High-Clearance: 10,957 lb (4WD, ROPS, flange axle) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-38 R1 rear with 14.9-28 R1 front (4WD) or 10.00-16 front (2WD) 18.4-38 R1 rear with 14.9-28 R1 front (4WD); High-Clearance: 13.6-38 R2 front and rear R1 Agricultural - Front 14.9-28 (4WD); 10.00-16 (2WD) 14.9-28 (4WD) R1 Agricultural - Rear 18.4-38 18.4-38 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer (SSL) or Euro style attachment couplers Skid steer (SSL) or Euro style attachment couplers Loader Model 4WD: 830LA (NSL), 835LA (MSL); 2WD: 810LA (NSL) 830LA (NSL); 835LA (MSL) Loader Lift Height 830LA: 150.0 in; 835LA: 150.0 in; 810LA (2WD): 144.0 in (to pivot pin) 830LA: 150.0 in; 835LA: 150.0 in (to pivot pin) Loader Lift Capacity (Full Height) 830LA: 2,557 lb; 835LA: 3,813 lb; 810LA (2WD): 2,094 lb (to maximum height, measured 31.5 in forward of the pivot pin) 830LA: 2,557 lb; 835LA: 3,813 lb (to maximum height, measured 31.5 in forward of the pivot pin) Loader Breakout Force 830LA: 3,681 lb; 835LA: 3,968 lb; 810LA (2WD): 3,020 lb (measured 31.5 in forward of the pivot pin) 830LA: 3,681 lb; 835LA: 3,968 lb (measured 31.5 in forward of the pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
