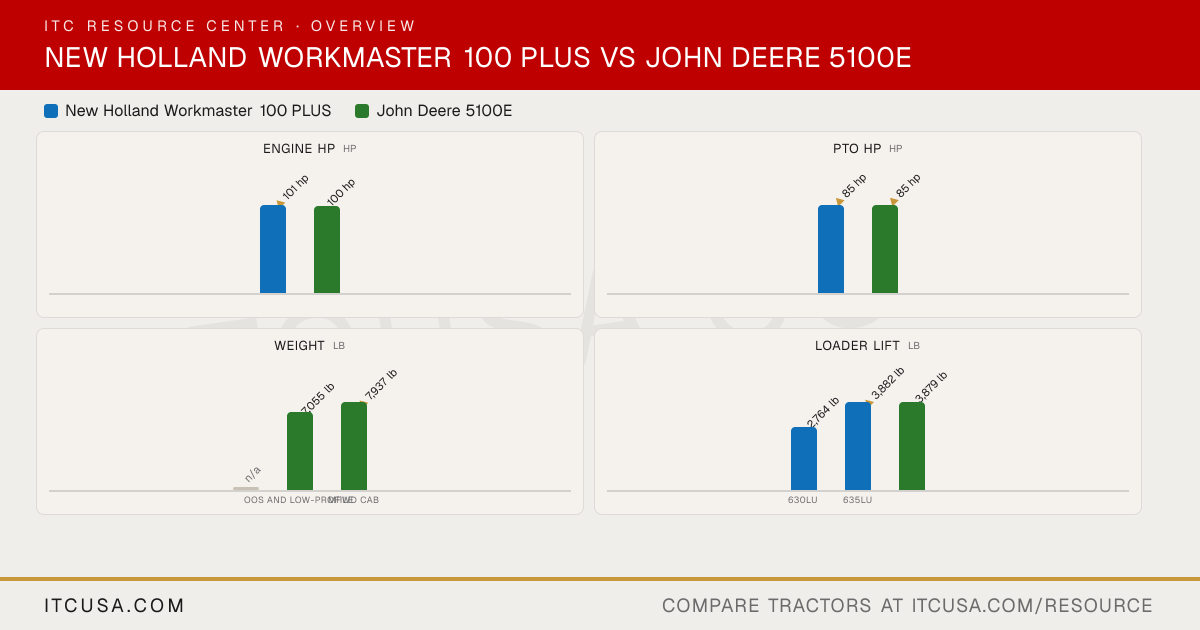

▶ EngineEngine Manufacturer FPT John Deere Engine Model F36 PowerTech PWL 4045 Engine Type 4-cylinder Diesel, turbocharged, aftercooled No. of Cylinders 4 4 Displacement Not Published 276 in³ Rated Engine Speed Not Published 2400 rpm Engine Power (Gross) 101 hp 100 hp PTO Power 85 hp 85 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System Not Published High Pressure Common Rail Alternator Not Published OOS: 90 A; Cab: 120 A ▶ HydraulicsPump Type Not Published Tandem gear pump (implement + steering) Implement Flow Not Published 15.9 gpm Steering Flow Not Published 6.6 gpm Total Hydraulic Flow 26.6 gpm 22.5 gpm Overall Hydraulic Pump Flow Not Published 22.5 gpm Hydraulic System Type Not Published Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity 34.3 gal OOS: 25 gal; Cab: 30 gal Coolant Capacity Not Published Cab: 3 gal; OOS: 2.5 gal Crankcase Capacity Not Published 3.2 gal (with filter) Transmission / Hydraulic System Capacity Not Published 11.5 gal Front Axle Fluid Capacity Not Published MFWD differential housing: 1.3 gal; MFWD wheel hub (each): 0.74 qt ▶ PTO & HitchPTO Type Not Published Independent, electrohydraulic engagement PTO Rear Not Published 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Not Published 4,630 lb Lift Control Type Not Published Top link draft sensing; mechanical hitch controls ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle PowrReverser No. of Speeds 12 forward / 12 reverse 12F/12R (standard); 24F/12R (optional) Max Travel Speed (Forward) Not Published 12F/12R: 21.7 mph; 24F/12R: 24.9 mph (electronically limited) Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet traction clutch Differential Lock & Limited Slip Options Not Published Pedal-operated differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Hydrostatic power steering Brakes Not Published Hydraulic wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Not Published Front Axle Type Class 1.0 HD heavy-duty front axle Mechanical front wheel drive (MFWD) Front Axle Rating Not Published 6,615 lb Drawbar Capacity Not Published Standard: 2,755 lb; 2,425 lb (350 and 15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350 and 15.7 in extended) ▶ Dimensions & ManeuverabilityOverall Width Not Published Not Published Wheelbase Not Published 92.5 in Ground Clearance Not Published ROPS: 17 in; Cab: 15.2 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 100.8 in Height to Top of ROPS (folded) Not Published 78.6 in Height to Top of Cab Model Not Published 101.2 in Overall Length Not Published 159.13 in ▶ WeightTractor Weight (Base) Not Published OOS: 7,275 lb (shipping weight); Cab: 8,150 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4-24 R1 Agricultural - Rear Not Published 18.4-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 520M; 540M Loader Model 630LU; 635LU 520M and 540M (previously H240 and H260) Loader Lift Height 143.9 in (630LU and 635LU) 520M MSL: 132.0 in Loader Lift Capacity (Full Height) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) 520M MSL: 2,606 lb (to maximum height, measured at pivot) Loader Breakout Force Not Published 520M MSL: 4,793 lb (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
