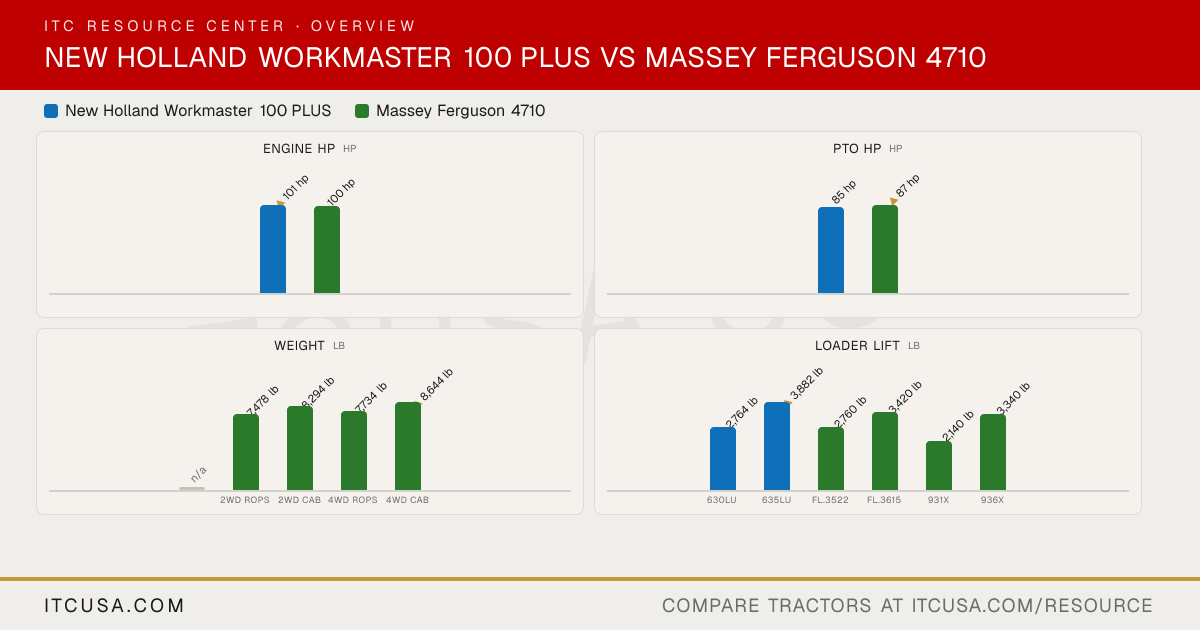

▶ EngineEngine Manufacturer FPT AGCO Power Engine Model F36 33 AWIC Engine Type 4-cylinder 3-cylinder, intercooled turbocharged diesel No. of Cylinders 4 3 Displacement Not Published 201 in³ Rated Engine Speed Not Published 2200 rpm Engine Power (Gross) 101 hp 100 hp PTO Power 85 hp 87 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Dual element (primary and secondary) Fuel System Not Published High-pressure common rail direct fuel injection Alternator Not Published 80 A ▶ HydraulicsPump Type Not Published Two-stage pump Implement Flow Not Published Not Published Steering Flow Not Published Not Published Total Hydraulic Flow 21 gpm Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published 17.2 gpm No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 33 gal Coolant Capacity Not Published 4.2 gal Crankcase Capacity Not Published 3.3 gal Transmission / Hydraulic System Capacity Not Published Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Front Axle Fluid Capacity Not Published Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive ▶ PTO & HitchPTO Type Not Published Independent, electrohydraulic engagement PTO Rear Not Published 540/540E standard; 540/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Not Published 4,850 lb Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift No. of Speeds 12 forward / 12 reverse 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 Max Travel Speed (Forward) Not Published 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Not Published Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Cab: tilt and telescopic steering column; Platform: tilt steering column Brakes Not Published Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests Front Axle Type Class 1.0 HD heavy-duty front axle Heavy-duty 2WD or 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published Not Published Overall Width Not Published 60.3 in (minimum, with std. 420/85R30 rear tires) Wheelbase Not Published 88.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Not Published 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear R1 Agricultural - Front Not Published 2WD: 9.5L-15; 4WD: 340/85R24 R1 Agricultural - Rear Not Published 420/85R34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published 931X and 936X: universal skid steer type quick release Loader Model 630LU; 635LU FL.3522, FL.3615, 931X, 936X Loader Lift Height Not Published FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
