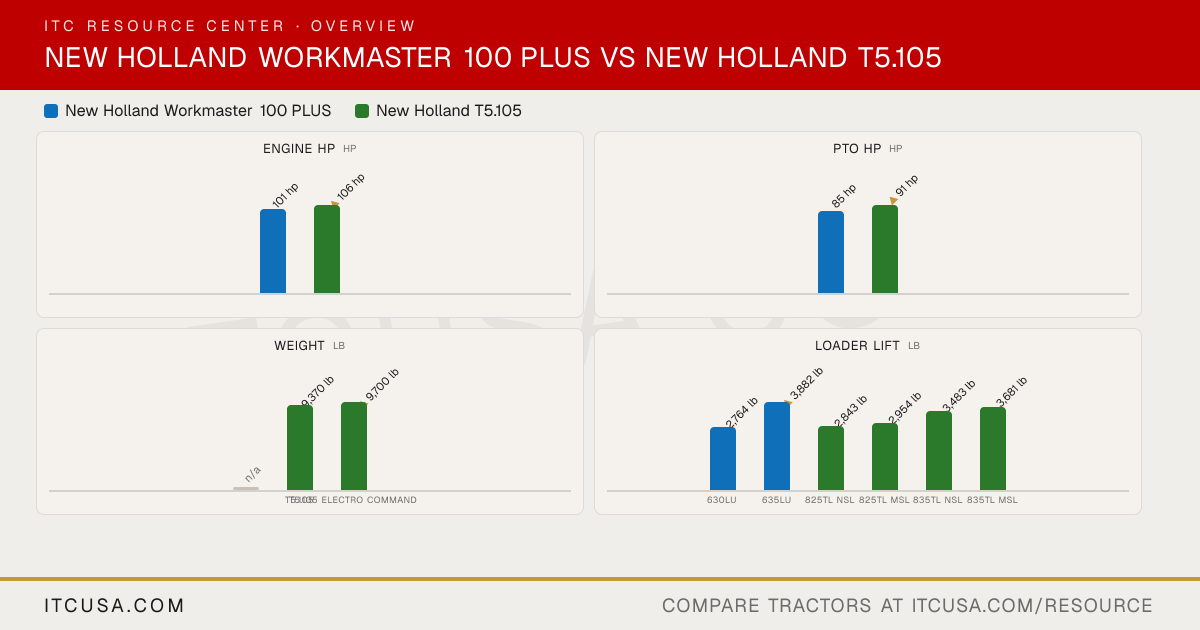

▶ EngineEngine Manufacturer FPT FPT Engine Model F36 F5D Engine Type 4-cylinder 4-cylinder diesel No. of Cylinders 4 4 Displacement Not Published 207 in³ Rated Engine Speed Not Published 2300 rpm Engine Power (Gross) 101 hp 106 hp PTO Power 85 hp 91 hp Engine Emissions Constraints Not Published Tier 4A with Cooled Exhaust Gas Recirculation (CEGR) and a Diesel Particulate Filter (DPF) Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator Not Published 120 A ▶ HydraulicsPump Type Not Published Gear pumps Implement Flow Not Published T5.105: 16.1 gpm (21.1 gpm optional); T5.105 Electro Command: 21.1 gpm (16.1 gpm optional) Steering Flow Not Published T5.105: 10.0 gpm (11.4 gpm optional); T5.105 Electro Command: 11.4 gpm (10.0 gpm optional) Total Hydraulic Flow 26.6 gpm T5.105: 26.1 gpm (16.1 + 10.0); T5.105 Electro Command: 32.5 gpm (21.1 + 11.4) Overall Hydraulic Pump Flow Not Published T5.105: 26.1 gpm (16.1 + 10.0); T5.105 Electro Command: 32.5 gpm (21.1 + 11.4) Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 (3 optional) No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 37 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Independent, electro-hydraulic clutch PTO Rear Not Published 540/1000 Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Not Published T5.105: 6,393 lb (10,452 lb with 2 optional rams); T5.105 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2) Lift Control Type Not Published Electronic draft control ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle T5.105: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.105 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional) No. of Speeds 12 forward / 12 reverse T5.105: 12F/12R (20F/20R or 24F/24R optional); T5.105 Electro Command: 16F/16R (32F/32R optional) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Electro-hydraulic rear differential lock; limited slip front ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Hydrostatic power steering Brakes Not Published Hydraulic wet disc Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Seat options include a low-frequency heated air-suspension seat; full-size instructor seat available Front Axle Type Class 1.0 HD heavy-duty front axle Heavy-duty 4WD front axle (standard) Front Axle Rating Not Published 4,500 lb (in-action capacity at 4 mph) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 82.6 in Wheelbase Not Published 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published T5.105: 105.4 in; T5.105 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab) Overall Length Not Published T5.105: 163.8 in; T5.105 Electro Command: 165.0 in ▶ WeightTractor Weight (Base) Not Published T5.105: 9,370 lb; T5.105 Electro Command: 9,700 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid-steer-style or European-style Loader Model 630LU; 635LU 825TL; 835TL (each NSL or MSL) Loader Lift Height 143.9 in (630LU and 635LU) 825TL: 138 in; 835TL: 146 in Loader Lift Capacity (Full Height) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) 825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb Loader Breakout Force Not Published 825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
