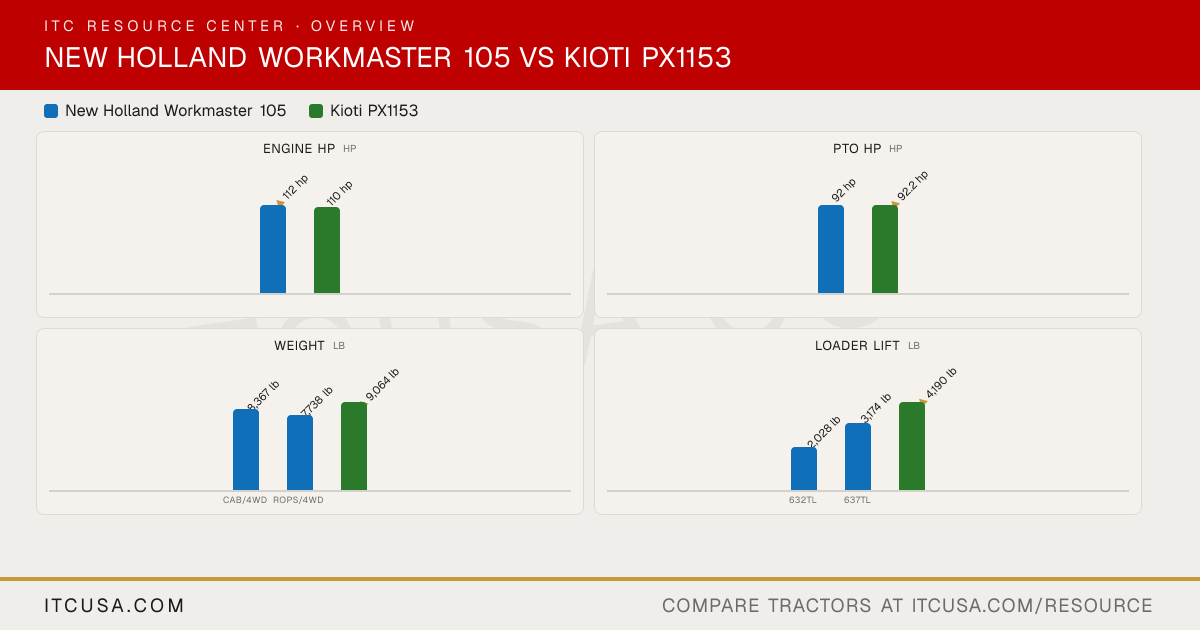

▶ EngineEngine Manufacturer FPT Doosan Engine Model F5 DL03-LEA07 Engine Type Turbocharged 4-cylinder diesel 4-cylinder, in-line vertical, water-cooled diesel No. of Cylinders 4 4 Displacement 207 in³ 208 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 112 hp 110 hp PTO Power 92 hp 92.2 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dual air cleaner Fuel System Not Published Not Published Alternator 120 A Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 16.9 gpm (21.6 gpm optional) Not Published Steering Flow 9.7 gpm Not Published Total Hydraulic Flow 26.6 gpm (16.9 + 9.7, computed) 31.5 gpm Overall Hydraulic Pump Flow 26.6 gpm (16.9 + 9.7, computed) 31.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 or 3 2 No. of Optional Remote Valves Not Published 1 (third valve) ▶ Fluid CapacityFuel Tank Capacity ROPS: 24 gal; Cab: 29 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Wet clutch PTO with electro-hydraulic engagement Independent PTO Rear 540 (base); 540/540E or 540/1000 (optional) 540 / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,200 lb (6,200 lb with optional ram) 8,002 lb Lift Control Type Lift-O-Matic 3-point quick raise system Position, draft, mixed control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle Synchronized shuttle, power shuttle type No. of Speeds 12F/12R 32F/32R Max Travel Speed (Forward) Not Published 24.87 mph Max Travel Speed (Reverse) Not Published 24.69 mph Clutch Not Published Wet multi disc Differential Lock & Limited Slip Options Not Published Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: vinyl air-suspension seat Fully adjustable suspension swivel seat (deluxe cab) Front Axle Type 4WD front axle, electro-hydraulic engagement (standard) 4WD, electric/hydraulic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 161.1 in (4WD) 168.9 in Overall Width Not Published 88.6 in Wheelbase Cab: 88.9 in; ROPS: 83.7 in 93.3 in Ground Clearance Not Published 19.5 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103.0 in Not Published Height to Top of ROPS (folded) Low-Profile ROPS: 68.4 in to ROPS pivot (500/60-22.5 R1 tires); 71.9 in (19.5L24 R4 tires) Not Published Height to Top of Cab Model 105.4 in 109 in ▶ WeightTractor Weight (Base) Cab/4WD: 8,367 lb; ROPS/4WD: 7,738 lb 9,064 lb (with cab and ag tires; cab is standard) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R3 turf or R4 industrial R1 Agricultural: 13.6-24 front, 18.4-34 rear R1 Agricultural - Front 12.4x24 (with 18.4x30 rear); 11.2-24 (with 16.9-30 rear); 11.5/80-18 (with 500/60-22.5 low-profile rear) 13.6-24 R1 Agricultural - Rear 18.4x30 (standard); 16.9-30 or 500/60-22.5 low-profile (optional) 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 19.5L24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style (84 in bucket standard); Euro-style quick attach available Quick attach (QA) bucket, 90 in; dual lever quick attach, built-in parking stand Loader Model 632TL (NSL); 637TL (MSL) KL1153 Loader Lift Height 632TL: 134.5 in; 637TL: 134.5 in KL1153: 143.3 in Loader Lift Capacity (Full Height) 632TL: 2,028 lb; 637TL: 3,174 lb (at 31.5 in from bucket pivot pin to max height) KL1153: 4,190 lb Loader Breakout Force Not Published KL1153: 8,310 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
