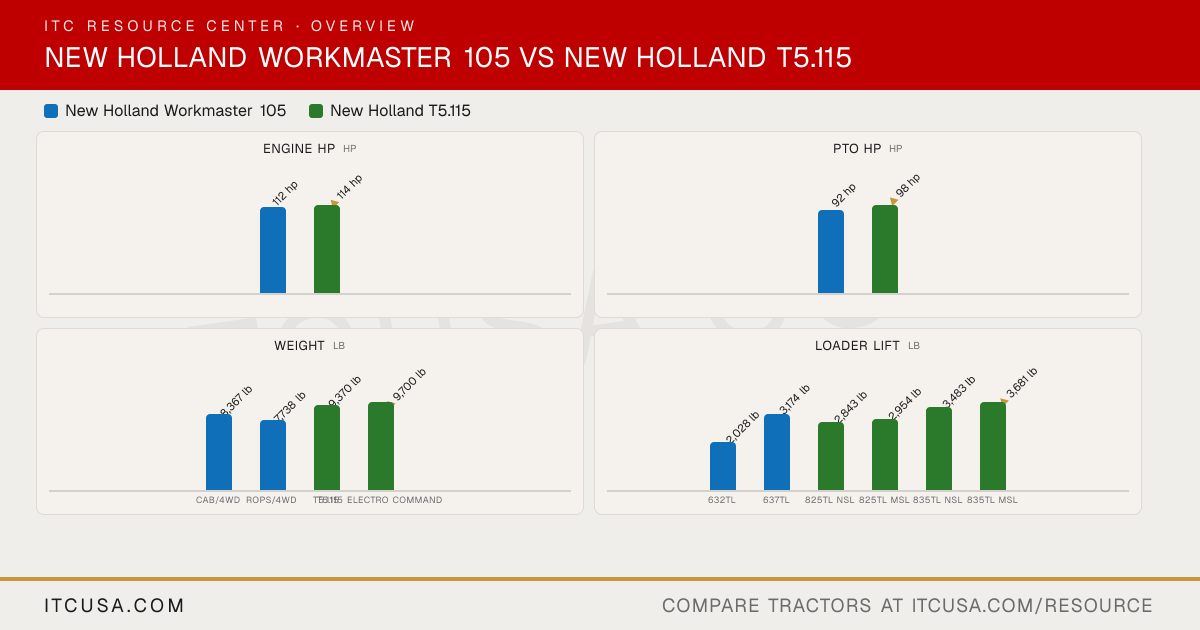

▶ EngineEngine Manufacturer FPT FPT Engine Model F5 F5D Engine Type Turbocharged 4-cylinder diesel 4-cylinder diesel No. of Cylinders 4 4 Displacement 207 in³ 207 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 112 hp 114 hp PTO Power 92 hp 98 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator 120 A 120 A ▶ HydraulicsPump Type Not Published Gear pumps Implement Flow 16.9 gpm (21.6 gpm optional) T5.115: 16.1 gpm (21.1 gpm optional); T5.115 Electro Command: 21.1 gpm (16.1 gpm optional) Steering Flow 9.7 gpm T5.115: 10.0 gpm (11.4 gpm optional); T5.115 Electro Command: 11.4 gpm (10.0 gpm optional) Total Hydraulic Flow 26.6 gpm (16.9 + 9.7, computed) T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed) Overall Hydraulic Pump Flow 26.6 gpm (16.9 + 9.7, computed) T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 or 3 2 (3 optional) No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity ROPS: 24 gal; Cab: 29 gal 37 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Wet clutch PTO with electro-hydraulic engagement Independent, electro-hydraulic clutch PTO Rear 540 (base); 540/540E or 540/1000 (optional) 540/1000 Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II/I Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,200 lb (6,200 lb with optional ram) T5.115: 6,393 lb (10,452 lb with 2 optional rams); T5.115 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2) Lift Control Type Lift-O-Matic 3-point quick raise system Electronic draft control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle T5.115: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.115 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional) No. of Speeds 12F/12R T5.115: 12F/12R (20F/20R or 24F/24R optional); T5.115 Electro Command: 16F/16R (32F/32R optional) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Electro-hydraulic rear differential lock; limited slip front ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Hydraulic wet disc Seat Suspension & Adjustability Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: vinyl air-suspension seat Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available Front Axle Type 4WD front axle, electro-hydraulic engagement (standard) Heavy-duty 4WD front axle (standard) Front Axle Rating Not Published 4,500 lb (in-action capacity at 4 mph) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 161.1 in (4WD) T5.115: 163.8 in; T5.115 Electro Command: 165.0 in Overall Width Not Published 82.6 in Wheelbase Cab: 88.9 in; ROPS: 83.7 in 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103.0 in Not Published Height to Top of ROPS (folded) Low-Profile ROPS: 68.4 in to ROPS pivot (500/60-22.5 R1 tires); 71.9 in (19.5L24 R4 tires) Not Published Height to Top of Cab Model 105.4 in T5.115: 105.4 in; T5.115 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab) ▶ WeightTractor Weight (Base) Cab/4WD: 8,367 lb; ROPS/4WD: 7,738 lb T5.115: 9,370 lb; T5.115 Electro Command: 9,700 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R3 turf or R4 industrial Not Published R1 Agricultural - Front 12.4x24 (with 18.4x30 rear); 11.2-24 (with 16.9-30 rear); 11.5/80-18 (with 500/60-22.5 low-profile rear) Not Published R1 Agricultural - Rear 18.4x30 (standard); 16.9-30 or 500/60-22.5 low-profile (optional) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 19.5L24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style (84 in bucket standard); Euro-style quick attach available Skid-steer-style or European-style Loader Model 632TL (NSL); 637TL (MSL) 825TL; 835TL (each NSL or MSL) Loader Lift Height 632TL: 134.5 in; 637TL: 134.5 in 825TL: 138 in; 835TL: 146 in Loader Lift Capacity (Full Height) 632TL: 2,028 lb; 637TL: 3,174 lb (at 31.5 in from bucket pivot pin to max height) 825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb Loader Breakout Force Not Published 825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
