Compare Tractors

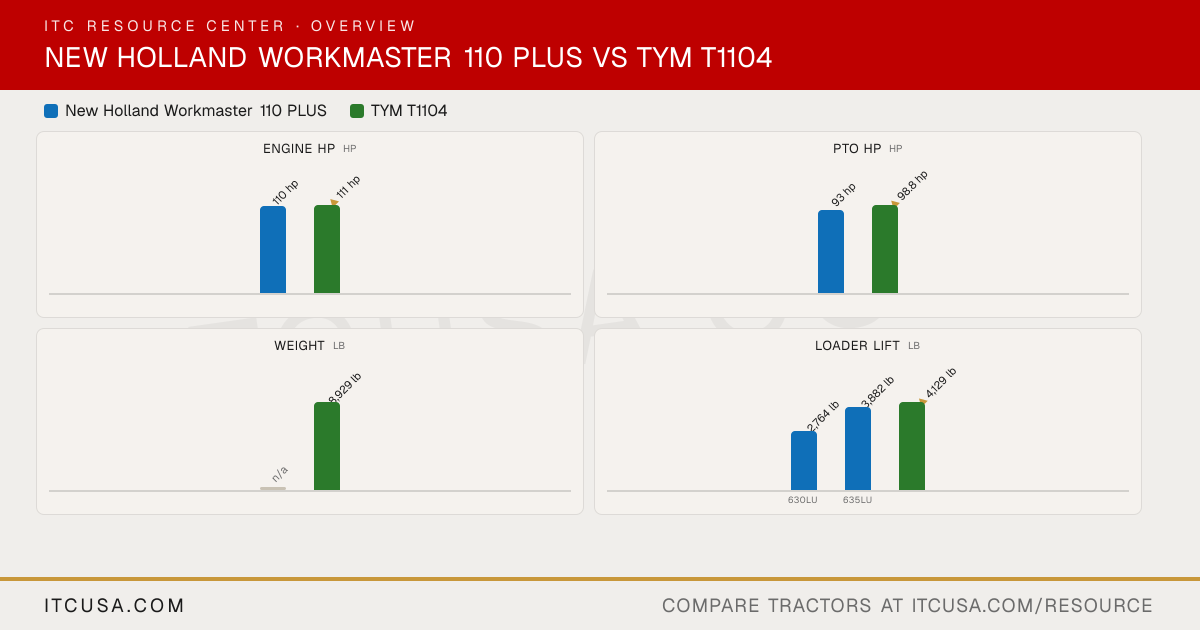

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
New HollandWorkmaster 110 PLUS
TYMT1104
Engine Manufacturer
FPT
Doosan Infracore
Engine Model
F36
D34P
Engine Type
4-cylinder
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
Not Published
208 in³
Rated Engine Speed
Not Published
2300 rpm
Engine Power (Gross)
110 hp
111 hp
PTO Power
93 hp
98.8 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Not Published
Dual dry
Fuel System
Not Published
CRDI
Alternator
Not Published
110 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
Not Published
14.1 gpm
Steering Flow
Not Published
7.1 gpm
Total Hydraulic Flow
21 gpm
21.3 gpm
Overall Hydraulic Pump Flow
Not Published
21.3 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
3
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
34.3 gal
29.1 gal (DEF 5.3 gal)
Coolant Capacity
Not Published
17.4 qt
Crankcase Capacity
Not Published
16.8 qt
Transmission / Hydraulic System Capacity
Not Published
19.8 gal
Front Axle Fluid Capacity
Not Published
18.4 qt
PTO Type
Not Published
Independent
PTO Rear
Not Published
540/750/1000 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Not Published
Category II
Hitch Lift Capacity
Not Published
6860 lb
Hitch Lift Capacity (at 24”)
Not Published
5490 lb
Lift Control Type
Not Published
Position/Draft/Elec
Transmission Type
12x12 electronic power shuttle
Power shuttle & Hi-Lo shift
No. of Speeds
12 forward / 12 reverse
F32 x R32
Max Travel Speed (Forward)
Not Published
24.6 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Wet multi plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Not Published
Hydrostatic
Brakes
Not Published
Wet disc
Seat Suspension & Adjustability
Air ride seat (standard); instructor seat available
Not Published
Front Axle Type
Class 1.0 HD heavy-duty front axle
MFWD (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
Not Published
167.3 in
Overall Width
Not Published
86 in
Wheelbase
Not Published
90.6 in
Ground Clearance
Not Published
18.3 in
Min. Turn Radius without Brakes
Not Published
162 in
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
107 in
Tractor Weight (Base)
Not Published
8929 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
Not Published
FSTR 380/85R24 TL (14.9R24)
R1 Agricultural - Rear
Not Published
FSTR 460/85R34 TL (18.4R34)
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
Not Published
Not Published
Loader Model
630LU; 635LU
TX110SL
Loader Lift Height
143.9 in (630LU and 635LU)
TX110SL: 144.4 in
Loader Lift Capacity (Full Height)
630LU: 2,764 lb; 635LU: 3,882 lb (at max height, 31.5 in forward of the bucket pivot point)
TX110SL: 4,129 lb
Loader Breakout Force
Not Published
TX110SL: 6,025 lb
Warranty Length & Coverage
Not Published
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
