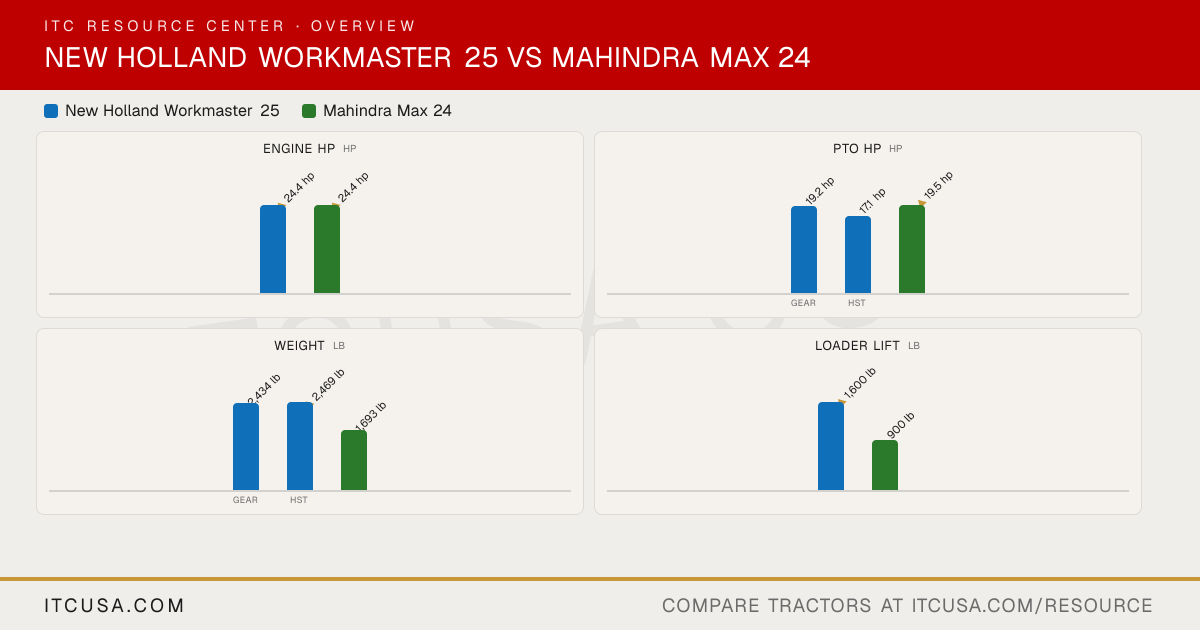

▶ EngineEngine Manufacturer Mitsubishi Mitsubishi Engine Model S3L2-W461GT S3L2 Engine Type 3-cylinder, naturally aspirated, liquid-cooled diesel Four stroke, indirect injection water-cooled diesel No. of Cylinders 3 3 Displacement 80.4 in³ 80.4 in³ Rated Engine Speed 2500 rpm 2500 rpm Engine Power (Gross) 24.4 hp 24.4 hp PTO Power Gear: 19.2 hp; HST: 17.1 hp 19.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Pressurized liquid with recirculating bypass Water-cooled Air Cleaner Dual element dry air cleaner (outer and inner element) Not Published Fuel System In-line injection pump Indirect Injection Alternator 50 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Mechanical Not Published Implement Flow 7.9 gpm 4.6 gpm Steering Flow 4.6 gpm 2.7 gpm Total Hydraulic Flow 12.5 gpm Not Published Overall Hydraulic Pump Flow 12.5 gpm Not Published Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 or 2 1 ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 6.1 gal Coolant Capacity 1.3 gal Not Published Crankcase Capacity 4.4 qt Not Published Transmission / Hydraulic System Capacity 8.5 gal Not Published Front Axle Fluid Capacity 6.9 qt Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement Live PTO Rear 540 rpm 540 @ 2376 rpm Mid-PTO Availability HST: Standard; Gear: Optional (2,000 rpm) Available; 2000 @ 2556 rpm Category, 3-Point Hitch Category I Category I, with check chains Hitch Lift Capacity 1,808 lb 1,400 lb Hitch Lift Capacity (at 24”) 1,433 lb Not Published Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal HST - 2 ranges No. of Speeds Gear: 12F/12R; HST: Infinite (3 ranges) Infinite Max Travel Speed (Forward) HST: 15.3 mph; Gear: 13.8 mph 9.6 mph Max Travel Speed (Reverse) Gear: 13.10 mph; HST: 10.79 mph 4.9 mph Clutch Gear: 9.4 in disc; HST: Not applicable Single plate, dry Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 4WD Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 117.2 in 104.1 in Overall Width 54.1 in 50.7 in Wheelbase 65.9 in Not Published Ground Clearance 13 in Not Published Min. Turn Radius without Brakes 120 in (left turn); 129.8 in (right turn) 7.2 ft Height to Top of ROPS 88.2 in 81.5 in Height to Top of ROPS (folded) 68.2 in Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Gear: 2,434 lb; HST: 2,469 lb 1,693 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Not Published R1 Agricultural - Front 7-14 6x12 R1 Agricultural - Rear 11.2-24 9.5x16 R3 Turf - Front 25x8.50-14 20x8-10 R3 Turf - Rear 41x14.00-20 29x12.5-15 R4 Industrial - Front 25x8.50-14 20x8-10 R4 Industrial - Rear 43x16-20 27x12.5-15 ▶ Loader & AttachmentsQuick Attach Loader System 200LC: tool-free quick-mount system; optional skid-steer quick-attach plates Not Published Loader Model 200LC Max 24L Loader Lift Height 200LC: 94.3 in Max 24L: 75 in Loader Lift Capacity (Full Height) 200LC: 1,600 lb Max 24L: 900 lb (at pivot pin) Loader Breakout Force 200LC: 2,637 lb Max 24L: 2,000 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total Not Published
