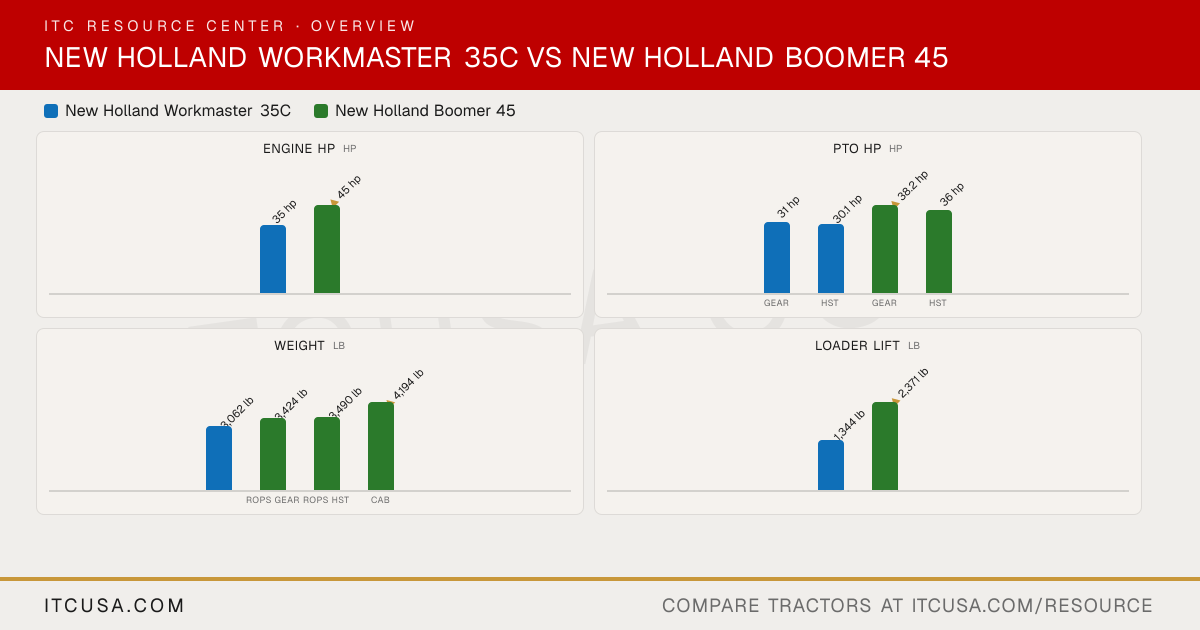

▶ EngineEngine Manufacturer LS Mtron LS Mtron Engine Model Not Published L3CRV-T9A Engine Type 3-cylinder, naturally aspirated diesel 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 3 3 Displacement 114.7 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 35 hp 45 hp PTO Power Gear: 31 hp; HST: 30.1 hp Gear: 38.2 hp; HST: 36 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid cooled Air Cleaner Dual-element Replaceable primary and inner elements Fuel System Common rail direct injection Electronically controlled common rail direct injection Alternator 70 A ROPS: 70 A, 12 V; Cab: 85 A, 12 V ▶ HydraulicsPump Type Dual pump (dedicated steering pump) Gear Implement Flow 8.4 gpm 8.2 gpm Steering Flow 4.9 gpm Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow 13.3 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow 13.3 gpm Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 (rear remotes optional) 1 No. of Optional Remote Valves Up to 3 Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity 12.6 gal ROPS: 10.5 gal; Cab: 12.4 gal Coolant Capacity Not Published 2.3 gal Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 11.4 gal Front Axle Fluid Capacity Not Published 2.2 gal ▶ PTO & HitchPTO Type Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard (2000 rpm) Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity 2067 lb 2,756 lb Hitch Lift Capacity (at 24”) 1596 lb 2,116 lb Lift Control Type Position control with drop-rate control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds Gear: 12 forward / 12 reverse; HST: infinite (3 ranges) Gear: 16F/16R; HST: 3-range Max Travel Speed (Forward) Gear: 14.3 mph; HST: 14.9 mph Gear: 17.0 mph; HST: 17.9 mph Max Travel Speed (Reverse) Not Published Gear: 15.3 mph; HST: 11.37 mph Clutch Not Published Gear: dry single disc (10.8 in); HST: n/a Differential Lock & Limited Slip Options Rear differential lock, mechanical (foot-engaged) Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering (dedicated steering pump) Power steering Brakes Wet, multi-disc Wet multi-disc Seat Suspension & Adjustability Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Front Axle Type 4WD front axle, mechanically engaged Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133 in 128.1 in Overall Width 65.4 in 69.1 in Wheelbase 66 in 73.2 in Ground Clearance 12.7 in 15 in Min. Turn Radius without Brakes 123.2 in 111.8 in (right turn); 123.2 in (left turn) (with brake applied) Height to Top of ROPS 92.4 in 97.1 in Height to Top of ROPS (folded) 74 in Not Published Height to Top of Cab Model Not Published 94 in ▶ WeightTractor Weight (Base) 3062 lb ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb Weight with ROPS and Loader 4131 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 9.5-16 R1 Agricultural - Rear Not Published 13.6-24 R3 Turf - Front Not Published 28x8.50-15 R3 Turf - Rear Not Published 41x14.00-20 R4 Industrial - Front 25x8.50-14 12x16.5 R4 Industrial - Rear 43x16-20 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer quick attach New Holland Quick Mount loader; optional skid steer quick attach plates Loader Model 250LC 260TLA Loader Lift Height 250LC: 92 in 260TLA: 109 in Loader Lift Capacity (Full Height) 250LC: 1344 lb 260TLA: 2,371 lb Loader Breakout Force 250LC: 2,138 lb 260TLA: 4,081 lb ▶ WarrantyWarranty Length & Coverage 24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)
