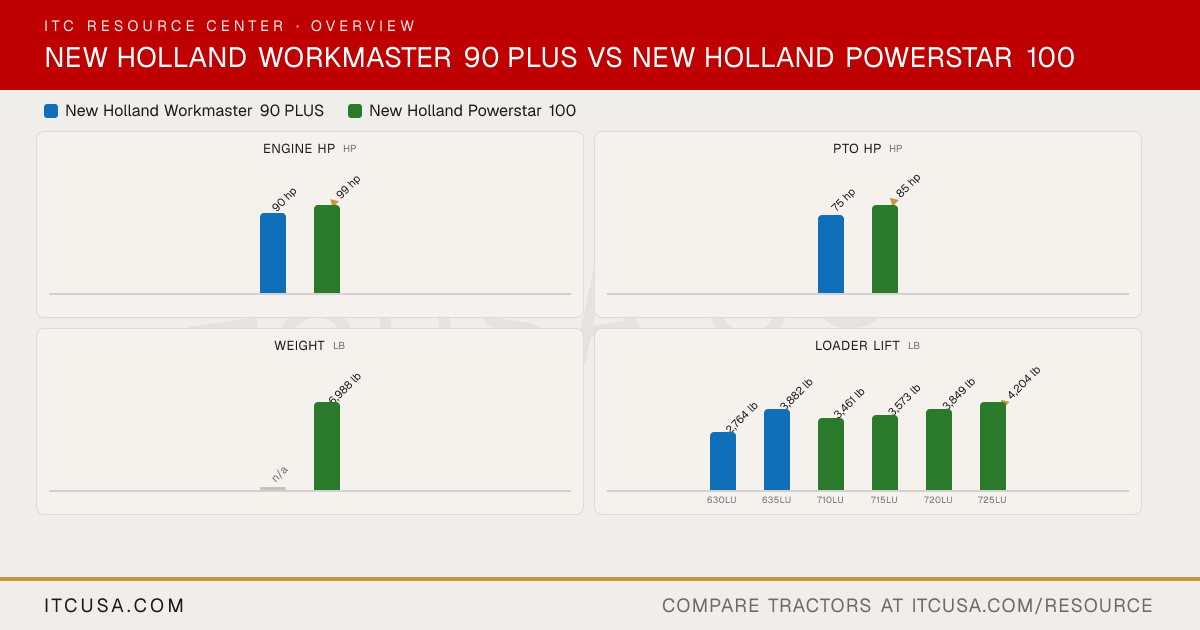

▶ EngineEngine Manufacturer FPT FPT Industrial Engine Model F36 F5G Engine Type 4-cylinder 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 4 4 Displacement Not Published 207 in³ Rated Engine Speed Not Published 2300 rpm Engine Power (Gross) 90 hp 99 hp PTO Power 75 hp 85 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Electronic high-pressure common rail fuel injection Alternator Not Published ROPS: 120 A; Cab: 150 A ▶ HydraulicsPump Type Not Published Open-center; dual pumps (implement pump plus dedicated steering pump) Implement Flow Not Published 16.9 gpm Steering Flow Not Published 9.7 gpm Total Hydraulic Flow 21 gpm 26.6 gpm Overall Hydraulic Pump Flow Not Published 26.6 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 rear remotes (open center with detent) No. of Optional Remote Valves Not Published 1 (third rear remote, DIA kit) ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 30.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Fully independent hydraulic PTO PTO Rear Not Published 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Not Published 5,620 lb Lift Control Type Not Published Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) ▶ Transmission & DrivetrainTransmission Type 12x12 electronic power shuttle 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) No. of Speeds 12 forward / 12 reverse 12F/12R (standard); 20F/20R with creeper (optional) Max Travel Speed (Forward) Not Published 27 mph (4WD front axle); 20 mph (2WD front axle) Max Travel Speed (Reverse) Not Published 27.25 mph (12x12, 4WD front axle, 18R34 tires) Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Hydraulic wet disc Seat Suspension & Adjustability Air ride seat (standard); instructor seat available Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Front Axle Type Class 1.0 HD heavy-duty front axle Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) Front Axle Rating Not Published 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 163.1 in (2WD); 160.9 in (4WD) Overall Width Not Published 75.7 in Wheelbase Not Published 92.2 in (2WD); 89.9 in (4WD) Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 134 in (optional 2WD front axle, w/o brakes) Height to Top of ROPS Not Published 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 102.1 in ▶ WeightTractor Weight (Base) Not Published 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions R1 Agricultural - Front Not Published 2WD: 10.00-16; 4WD: 12.4-24 R1 Agricultural - Rear Not Published 18.4R34 (reference tire for OEM weights and dimensions) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Loader Model 630LU; 635LU 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) Loader Lift Height 143.9 in (630LU and 635LU) 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in Loader Lift Capacity (Full Height) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, 31.5 in forward of the bucket pivot point) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
