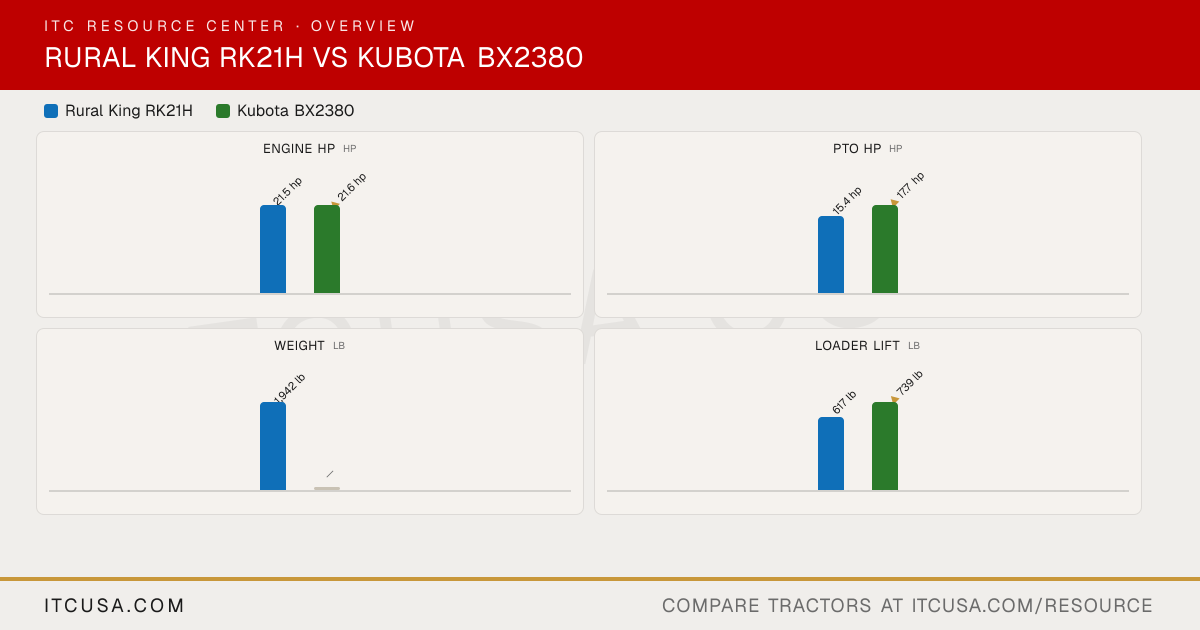

▶ EnginePTO Power 15.4 PTO HP 17.7 hp Alternator 40 A, 12 V 40 A, 12 V Air Cleaner Single Dry Sheet net and replaceable treated paper element, spin on oil filter Engine Type Yanmar EPA Tier 4 certified 3-cylinder, liquid cooled diesel (natural aspiration) Liquid cooled, 4-cycle, diesel Fuel System Indirect Fuel Injection Direct injection Displacement 60.6 in³ 54.8 in³ Engine Model 3TNM74F — No. of Cylinders 3 3 Rated Engine Speed 3200 rpm 3200 rpm Cooling System Type Water-cooled Water with pressurized radiator, reverse air-flow design Engine Manufacturer Yanmar Kubota Engine Power (Gross) 21.5 hp 21.6 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightWeight with ROPS and Loader 1,942 lb Not Published Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first) Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ HydraulicsPump Type Single Gear Pump with Flow Divider Open center tandem pump gear type Steering Flow 2.11 gpm 1.0 gpm Implement Flow 4.17 gpm 5.2 gpm Total Hydraulic Flow 6.97 gpm 6.2 gpm Hydraulic System Type Live, independent Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm 6.2 gpm No. of Optional Remote Valves Not Published 2 (optional; ISO 7241-1 series A or B) No. of Standard Remote Valves Not Published Not Published ▶ PTO & HitchPTO Rear 540 rpm STD (540 rpm) PTO Type Independent Live independent PTO (with hydraulic clutch) Lift Control Type Position Not Published Hitch Lift Capacity 1,100 lb Not Published Mid-PTO Availability Optional (2,500 rpm) STD (2500 rpm) Category, 3-Point Hitch Category I SAE Category I Optional Hitch Lift Capacity (at 24”) 679 lb 680 lb ▶ Tire OptionsR3 Turf - Rear 16X12.00-12 26X12-12 R3 Turf - Front 16X7.50-8 18X8.5-10 Tire Size & Options R4 Industrial (Std), R3 Turf (Opt), Goodyear R14 (Opt) R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear Not Published 26X12-12 R4 Industrial - Front Not Published 18X8.5-10 R1 Agricultural - Rear BAR R 24X12.00-12 26X12-12 R1 Agricultural - Front BAR F 16X7.50-9 18X8.5-10 ▶ Fluid CapacityCoolant Capacity 3.7 qt Not Published Crankcase Capacity 2.1 qt Not Published Fuel Tank Capacity 6.6 gal 6.6 gal Front Axle Fluid Capacity 2.6 qt Not Published Transmission / Hydraulic System Capacity 3.6 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 72 in 71.0 in Loader Breakout Force 1,285 lb 1,286 lbf (bucket pivot pin) Quick Attach Loader System Skid-Steer Compatible Quick-Attach Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket) Loader Lift Capacity (Full Height) 617 lb 739 lb ▶ Transmission & DrivetrainClutch Not Published Dry type single plate - Main clutch 9.45 in. No. of Speeds 2 Range 2 Range (Low-High) Transmission Type Hydrostatic Hydrostatic transmission Max Travel Speed (Forward) 7.8 mph 8.1 mph Max Travel Speed (Reverse) Not Published 6.2 mph Differential Lock & Limited Slip Options Differential lock Rear differential lock standard ▶ Chassis, Steering & ControlsBrakes Wet Disc Mechanical, wet disc type Steering Hydrostatic Integral power steering Frame Type Not Published Not Published Front Axle Type center-pivot, reverse Eliot type 4WD: Bevel gear front axle, non-adjustable tread spacing Drawbar Capacity Not Published Max. drawbar load @ hitch: 550 lb. Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Suspension seat with armrests & retractable seat belt Not Published ▶ Dimensions & ManeuverabilityWheelbase 53.1 in 55.1 in Overall Width 44.5 in 45.1 in Ground Clearance F/A 8.3 in 6.5 in Height to Top of ROPS 86.6 in 83.1 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 86.6 in 7.5 ft (2.3 m) Overall Length with 3-Point Hitch 94.2 in 99.0 in (w/ Front guard)
