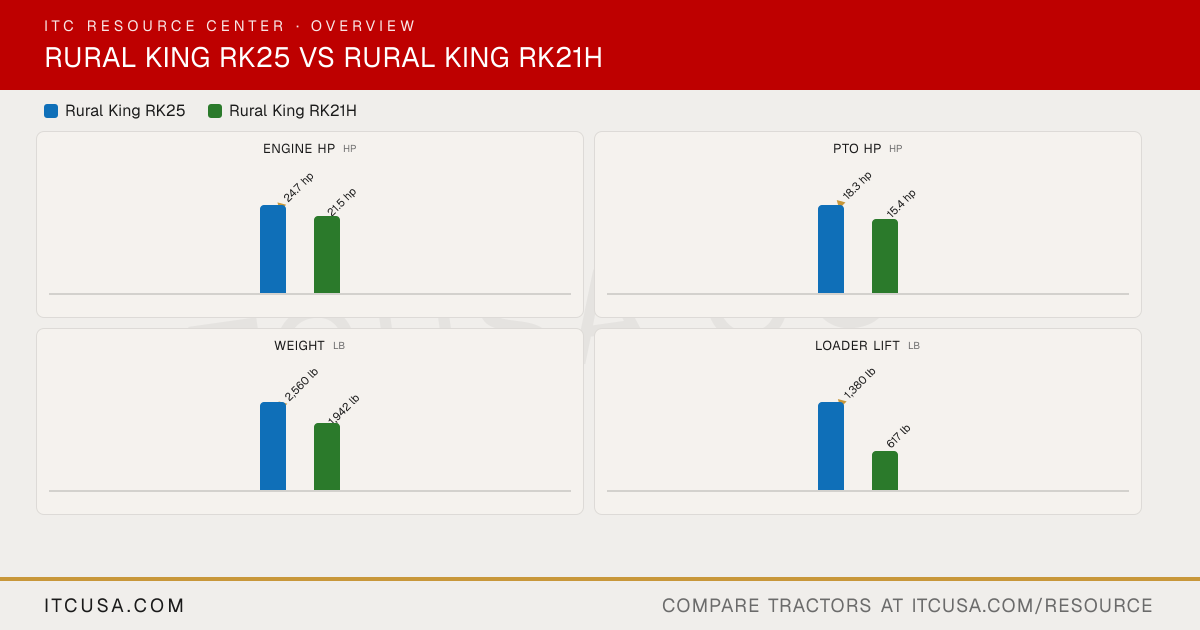

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV80F 3TNM74F Engine Type 3-cylinder, liquid-cooled diesel (natural aspiration) Not Published No. of Cylinders 3 3 Displacement 77.3 in³ 60.6 in³ Rated Engine Speed 3000 rpm 3200 rpm Engine Power (Gross) 24.7 hp 21.5 hp PTO Power 18.3 hp 15.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Single dry Fuel System Direct fuel injection Indirect fuel injection Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Single gear pump with flow divider Single gear pump with flow divider Implement Flow 4.18 gpm 4.59 gpm Steering Flow 2.77 gpm 2.11 gpm Total Hydraulic Flow 6.95 gpm 6.71 gpm Overall Hydraulic Pump Flow 6.95 gpm 6.71 gpm Hydraulic System Type Live, independent, open centre Live, independent Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 6.6 gal Coolant Capacity 3.8 qt 3.7 qt Crankcase Capacity 2.9 qt 2.1 qt Transmission / Hydraulic System Capacity 5.8 gal 3.6 gal Front Axle Fluid Capacity 4.7 qt 2.6 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability 2,000 rpm 2,000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,534 lb 1,100 lb Hitch Lift Capacity (at 24”) 1,102 lb 679 lb Lift Control Type Position Position ▶ Transmission & DrivetrainTransmission Type 2-range hydrostatic 2-range hydrostatic No. of Speeds 2 Range 2 Range Max Travel Speed (Forward) 13.7 mph 8.4 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch) Differential Lock & Limited Slip Options 4WD with mechanical rear differential lock 4WD with differential lock ▶ Chassis, Steering & ControlsFrame Type Unit frame: engine, transmission and front axle support bolted together into a rigid assembly Unit frame: engine, transmission and front axle support bolted together into a rigid assembly Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Suspension seat with armrests & retractable seat belt Suspension seat with armrests & retractable seat belt Front Axle Type 4WD, center-pivot reverse Eliot type 4WD, center-pivot reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 52.8 in 44.5 in Wheelbase 61 in 53.1 in Ground Clearance 7.71 in 8.3 in Min. Turn Radius without Brakes 109.5 in 86.6 in Height to Top of ROPS 89.8 in 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 107.8 in 94.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,881 lb 1,472 lb Weight with ROPS and Loader 2,560 lb (1,881 + 679, computed) Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial, R14 Titan: R4 Industrial (Std), R3 Turf (Opt), R14 (Opt) R1 Agricultural - Front 7x12-6 n/a R1 Agricultural - Rear 11.2-16 n/a R3 Turf - Front 23x8.5-12 18x8.5-10 R3 Turf - Rear 33x12.5-16.5 Not Published R4 Industrial - Front 23x8.5-12 Not Published R4 Industrial - Rear 12-16.5 Not Published ▶ Loader & AttachmentsQuick Attach Loader System L85: skid-steer compatible quick-attach L72: skid-steer compatible quick-attach Loader Model L85 L72 Loader Lift Height L85: 87.2 in (maximum lift height to pivot pin) L72: 72 in (maximum lift height) Loader Lift Capacity (Full Height) L85: 1,380 lb (at pivot pin, to full height) L72: 617 lb (to full height) Loader Breakout Force L85: 2,059 lb (at ground level, pivot pin) L72: 1,285 lb ▶ WarrantyWarranty Length & Coverage Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
