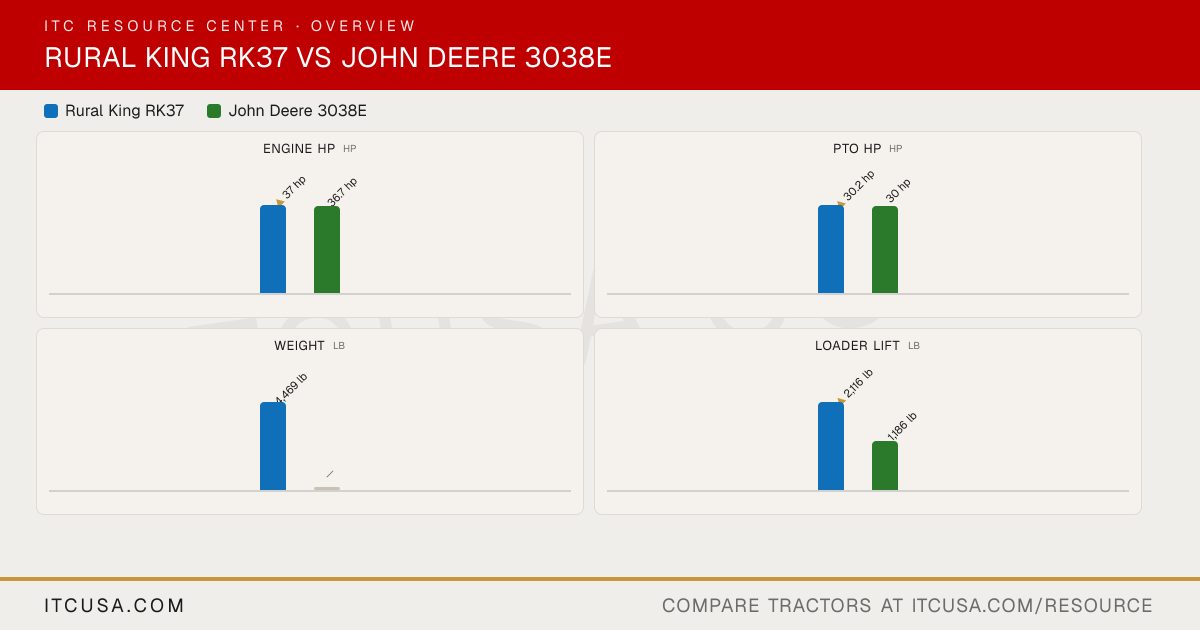

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV88C-DKTF 3TNV86CT-NJT2 Engine Type 4-cycle diesel, water-cooled (natural aspiration) Diesel No. of Cylinders 3 3 Displacement 100.2 in³ 95.7 in³ Rated Engine Speed 3000 rpm 2500 rpm Engine Power (Gross) 37 hp 36.7 hp PTO Power 30.2 hp 30 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water pump Air Cleaner Dual dry Dry type with safety element Fuel System CRDI High pressure common rail direct injection Alternator 70 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Dual Gear Pump Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston Implement Flow 6.3 gpm 5.3 gpm Steering Flow 4.6 gpm 4.0 gpm Total Hydraulic Flow 10.9 gpm 9.3 gpm Overall Hydraulic Pump Flow 10.9 gpm 9.3 gpm Hydraulic System Type Separate reservoir, independent fully live Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 1 Up to 2 (optional) ▶ Fluid CapacityFuel Tank Capacity 9.0 gal 7.5 gal Coolant Capacity 7.4 qt 1.37 gal Crankcase Capacity 6.0 qt 4.5 qt Transmission / Hydraulic System Capacity 9.25 gal 5.5 gal Front Axle Fluid Capacity 8.7 qt 1.0 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability 2000 (option) Optional Category, 3-Point Hitch Category I Category 1 Hitch Lift Capacity 2,646 lb 1,356 lb Hitch Lift Capacity (at 24”) 1,764 lb 1356 lb Lift Control Type Position Position control ▶ Transmission & DrivetrainTransmission Type Partial synchromesh shuttle shift (high/low selector) Hydrostatic transmission (HST) No. of Speeds 12F/12R Not Published Max Travel Speed (Forward) 21.8 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch single plate dry clutch (8.86" diameter) Not Published Differential Lock & Limited Slip Options 4WD, Differential Lock Differential lock: Yes; Limited slip: Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power steering Brakes Wet Disc Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type 4WD front axle, center-pivot, reverse Eliot type Not Published Front Axle Rating Not Published 1760 lb Drawbar Capacity Not Published 880 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 128 in 115.9 in Overall Width 58.0 in 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) Wheelbase 66.1 in 62.8 in Ground Clearance 12.8 in 12.7 in (R4 tires) Min. Turn Radius without Brakes 116 in 9.4 ft (2.9 m) Height to Top of ROPS Not Applicable 95.3 in Height to Top of ROPS (folded) Not Applicable Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightWeight with ROPS and Loader Not Applicable 2972 lb Weight with Cab and Loader 4,469 lb Not Published Tractor Weight (Base) n/a 2266 lb ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 8.0-16 7-14 R1 Agricultural - Rear 12.4-24 11.2-24 R3 Turf - Front 27X10.5-15 27X8.50-15 R3 Turf - Rear 41x14-20 41X14-20 R4 Industrial - Front 27X10.5-15 25X8.50-14 or 27X8.50-15 R4 Industrial - Rear 12.5X20 15.00-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System L102: Skid-steer compatible quick-attach Quick-change attachment carrier Loader Model L102 D160 Loader Lift Height 102 in 84 in Loader Lift Capacity (Full Height) 2,116 lb 1,186 lb Loader Breakout Force 3,435 lb 1,704 lb ▶ WarrantyWarranty Length & Coverage Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ ITC Company AccessoriesAccessories that fit None tagged yet
