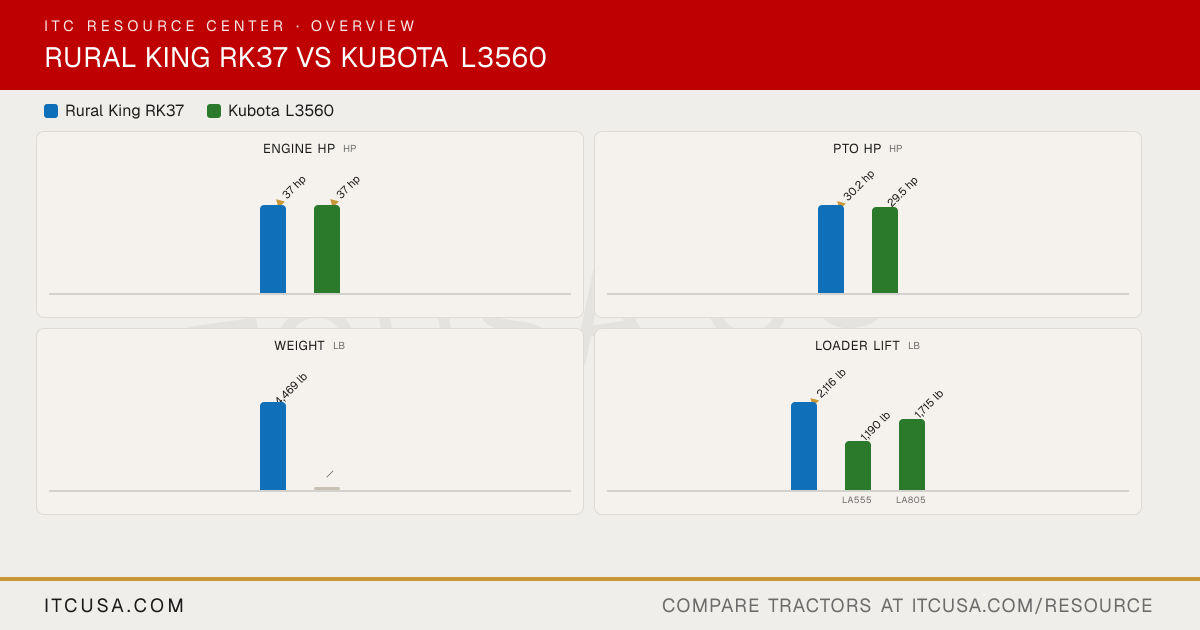

▶ EnginePTO Power 30.2 hp 29.5 hp Alternator 70 A, 12 V 40 A, 12 V Air Cleaner Dual dry Dry paper, dual element Engine Type 4-cycle diesel, water-cooled (natural aspiration) Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated Fuel System CRDI Electronic CRS (Common Rail System) Displacement 100.2 in³ 111.4 in³ Engine Model 3TNV88C-DKTF — No. of Cylinders 3 3 Rated Engine Speed 3000 rpm 2700 rpm Cooling System Type Water-cooled Liquid-cooled Engine Manufacturer Yanmar Kubota Engine Power (Gross) 37 hp 37 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader 4,469 lb Not Published ▶ HydraulicsPump Type Dual Gear Pump Tandem pump - gear type Steering Flow 4.6 gpm DT (4WD), GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm Implement Flow 6.3 gpm DT (4WD), GST (4WD): 8.3 gpm; HST (4WD), HSTC (4WD, CAB): 8.1 gpm Total Hydraulic Flow 10.9 gpm DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm Hydraulic System Type Separate reservoir, independent fully live Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 10.9 gpm DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm No. of Optional Remote Valves 1 Optional, up to 3 (double-acting valve or float detent valve options, any position) No. of Standard Remote Valves 1 Not Published ▶ PTO & HitchPTO Rear 540 rpm DT (4WD), GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2476 engine rpm PTO Type Independent Live independent (hydraulic clutch) Lift Control Type Position Position control Hitch Lift Capacity 2,646 lb 3,858 lb Mid-PTO Availability 2000 (option) Optional Category, 3-Point Hitch Category I SAE Category 1 Hitch Lift Capacity (at 24”) 1,764 lb 2,756 lb ▶ Tire OptionsR3 Turf - Rear 41x14-20 41X18LL-16.1 R3 Turf - Front 27X10.5-15 27X10.50-15 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural; R3 Turf; R4 Industrial R4 Industrial - Rear 12.5X20 420/70-24 R4 Industrial - Front 27X10.5-15 10-16.5 R1 Agricultural - Rear 12.4-24 12.4-24 R1 Agricultural - Front 8.0-16 7.2-16 ▶ Fluid CapacityCoolant Capacity 7.4 qt 7.9 qt Crankcase Capacity 6.0 qt 7.1 qt Fuel Tank Capacity 9.0 gal 13.5 gal Front Axle Fluid Capacity 8.7 qt Not Published Transmission / Hydraulic System Capacity 9.25 gal 11.1 gal ▶ Loader & AttachmentsLoader Model L102 — Loader Lift Height 102 in LA555: 96.4 in; LA805: 104.7 in Loader Breakout Force 3,435 lb LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N) Quick Attach Loader System L102: Skid-steer compatible quick-attach LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Loader Lift Capacity (Full Height) 2,116 lb LA555: 1190 lb; LA805: 1715 lb ▶ Transmission & DrivetrainClutch single plate dry clutch (8.86" diameter) DT (4WD), GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A No. of Speeds 12F/12R DT (4WD): 8Fx8R; GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-Range, 6 speeds (H-DS), infinitely variable in each Transmission Type Partial synchromesh shuttle shift (high/low selector) DT (4WD): Gear; GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic Max Travel Speed (Forward) 21.8 mph DT (4WD), GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph Max Travel Speed (Reverse) Not Published DT (4WD), GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph Differential Lock & Limited Slip Options 4WD, Differential Lock Rear differential lock, standard ▶ Chassis, Steering & ControlsBrakes Wet Disc Wet disc type, mechanically activated Steering Hydrostatic Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type 4WD front axle, center-pivot, reverse Eliot type 4WD: Bevel gear front axle, non-adjustable tread spacing Drawbar Capacity Not Published 1,433 lbs. Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 66.1 in 74.6 in Overall Width 58.0 in 66.5 in Ground Clearance 12.8 in 15.9 in Height to Top of ROPS Not Applicable DT (4WD), GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable Height to Top of Cab Model Not Published DT (4WD), GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.1 in Height to Top of ROPS (folded) Not Applicable DT (4WD), GST (4WD), HST (4WD): 90.6 in; HSTC (4WD, CAB): Not Applicable Min. Turn Radius without Brakes 116 in 8.9 ft (2.7 m) Overall Length with 3-Point Hitch 128 in 129.5 in ▶ WarrantyWarranty Length & Coverage Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first) Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit
