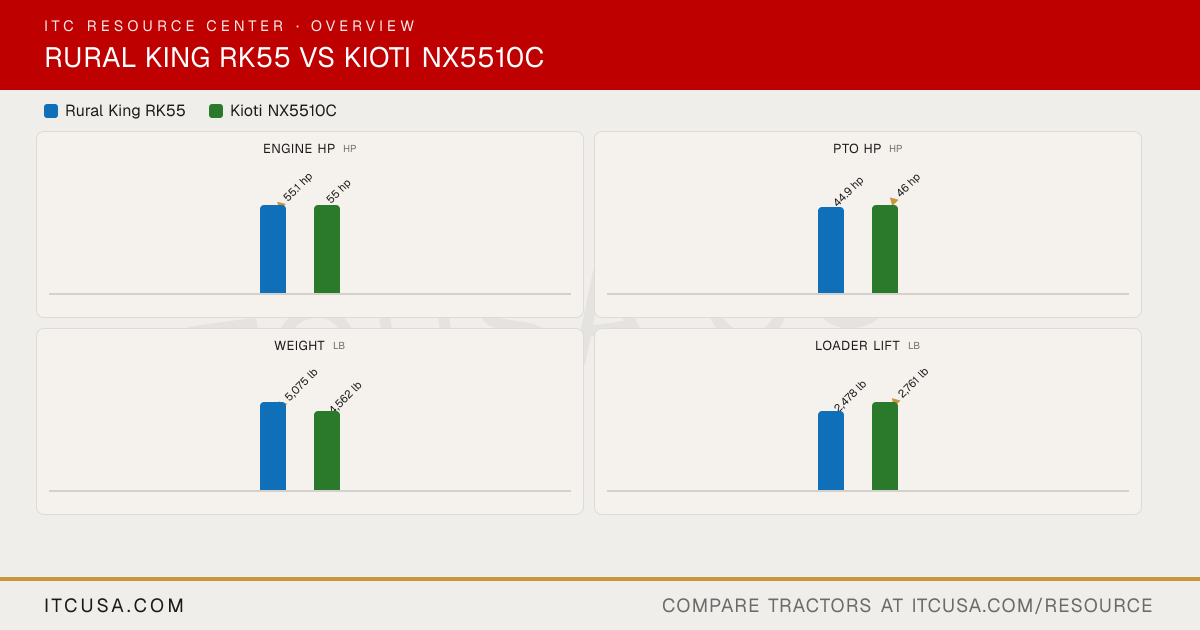

▶ EnginePTO Power 44.9 hp 46 hp Alternator 55 A, 12 V Not Published Air Cleaner Dry dual element Not Published Engine Type 4-cycle, water-cooled, turbocharged diesel In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI Fuel System Common rail direct injection Common Rail Direct Injection (CRDI) Displacement 127.6 in³ 111.4 in³ No. of Cylinders 4 3 Rated Engine Speed 2800 rpm 2600 rpm Cooling System Type Water-cooled (forced circulation/fan) Water-cooled Engine Manufacturer Yanmar KIOTI (Daedong) Engine Power (Gross) 55.1 hp @ 800 rpm 55 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader 5,075 lb Not Applicable Weight with Cab and Loader Not Applicable 4,562 lb ▶ WarrantyWarranty Length & Coverage Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first) Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time) ▶ HydraulicsPump Type Dual Gear Pump Gear Steering Flow 5.0 gpm 8.2 gpm Implement Flow 10.1 gpm 8.2 gpm Total Hydraulic Flow 15.1 gpm 16.50 gpm Hydraulic System Type Separate reservoir, independent fully live Open Center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 15.1 gpm 16.50 gpm No. of Optional Remote Valves Not Published 1 No. of Standard Remote Valves 2 1 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent (foot-operated) Independent Lift Control Type Position, draft control Position with Draft Control Hitch Lift Capacity 3,314 lb 3,177 lbs (at 24 in) Mid-PTO Availability Not Published Optional (2,000 rpm) Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity (at 24”) 2,945 lb 3,177 lbs ▶ Tire OptionsR3 Turf - Rear Not Published 21.5lx16.1 R3 Turf - Front Not Published 29x12.5-15 Tire Size & Options R1 Agricultural R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear Not Published 17.5-24 R4 Industrial - Front Not Published 10-16.5 R1 Agricultural - Rear 13.6-26-8PR 13.6-28 R1 Agricultural - Front 9.5-16-8PR 9.5-18 ▶ Fluid CapacityCoolant Capacity 2.5 gal 2.0 gal Crankcase Capacity 5.6 qt 1.58 gal Fuel Tank Capacity 15.9 gal 14.8 gal Front Axle Fluid Capacity 2.6 gal 1.8 gal Transmission / Hydraulic System Capacity 9.2 gal 14.53 gal ▶ Loader & AttachmentsLoader Lift Height 110 in 108.3 in Loader Breakout Force 4,938 lb 3,727 lb Quick Attach Loader System L110: Skid-steer compatible quick-attach Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Lift Capacity (Full Height) 2,478 lb 2,761 lb ▶ Transmission & DrivetrainClutch Dry single disc Dry Type Single Stage No. of Speeds 16F/16R 24X24 Transmission Type 16F/16R synchro shuttle shift with creeper gear Synchro Shuttle Max Travel Speed (Forward) 19.1 mph 17.35 mph Max Travel Speed (Reverse) 16.1 mph 15.42 mph Differential Lock & Limited Slip Options Differential lock Differential Lock: Rear (Standard) ▶ Chassis, Steering & ControlsBrakes Wet disc (mechanical) Wet Multi Disc Steering Hydrostatic power steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Center pin Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Adjustable Seat ▶ Dimensions & ManeuverabilityWheelbase 76.2 in 75.6 in Overall Width 63.4 in 65.6 in Ground Clearance 14.6 in 15.7 in Height to Top of ROPS 108.9 in Not Applicable Height to Top of Cab Model Not Applicable 94.1 in Height to Top of ROPS (folded) Not Published Not Applicable Min. Turn Radius without Brakes Not Published 9.97 ft (3.04 m) Overall Length with 3-Point Hitch 137.8 in 139.6 in ▶ ITC Company AccessoriesAccessories that fit
