Compare Tractors

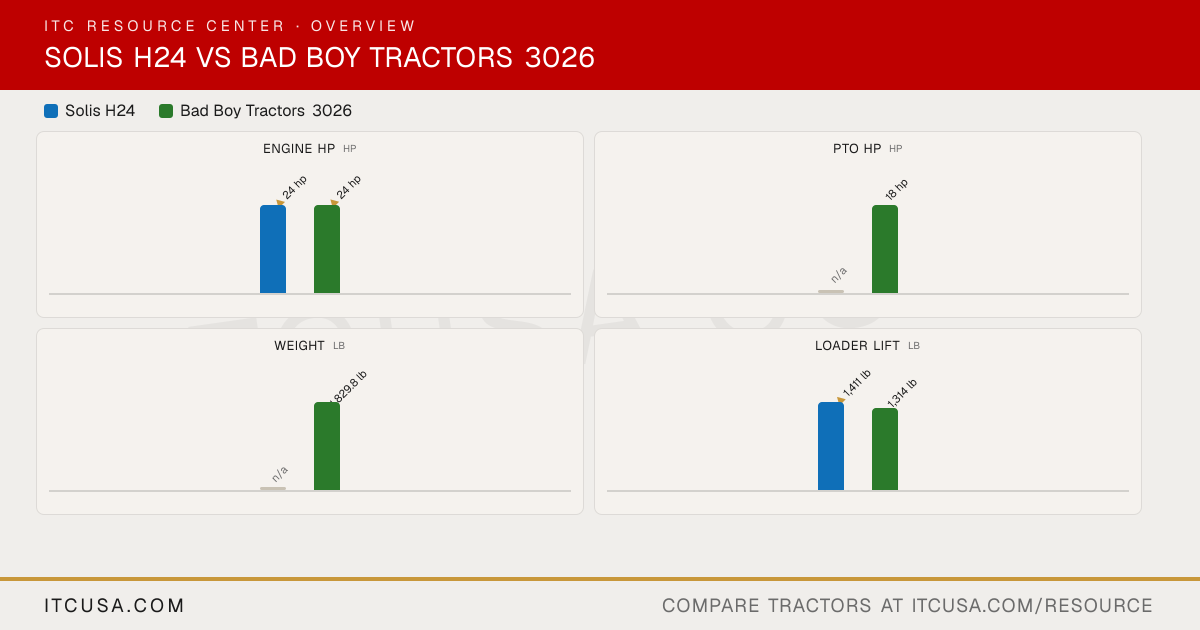

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24
Bad Boy Tractors3026
PTO Power
Not Published
18 hp
Alternator
alternator
50 A, 12 V
Air Cleaner
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Dry, Element
Engine Type
diesel
3 CYL, Water Cooled, Diesel
Fuel System
Direct Injection
Diesel
Displacement
79.3 in³
71.7 in³
Engine Model
Mitsubishi S3L2
A1100N2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2600 rpm
Cooling System Type
Liquid cooled
Water Cooled
Engine Manufacturer
Mitsubishi
TYM
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Final Tier4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources
Tractor Weight (Base)
n/a
1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
6-year powertrain warranty
Pump Type
NOT FOUND
Gear type pump with primary and secondary pumps
Steering Flow
NOT FOUND — no source explicitly lists this value
3.1 gpm
Implement Flow
3.98 gpm 15.1 lpm
4.3 gpm
Total Hydraulic Flow
3.98 gpm
7.4 gpm 28.0 lpm
Hydraulic System Type
open center
Power Assisted Hydro-Static
Rear Remote Hydraulic Flow
NOT FOUND — no source explicitly lists this value
Not Published
Overall Hydraulic Pump Flow
3.98 gpm 15.1 lpm
7.7 gal per min
No. of Optional Remote Valves
NOT FOUND — no source explicitly lists this value
Optional (Up To 1)
No. of Standard Remote Valves
NOT FOUND — no source explicitly lists this value
0
System Operating Pressure
n/a
352.7 lbf/cm² (max operating pressure)
PTO Rear
540 (1.375)
540 / 960 rpm @ 2,600 rpm
PTO Type
independent
Live P.T.O. (6 Spline shaft)
Lift Control Type
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Position control
Hitch Lift Capacity
1323 lbs
1,433 lbs
Mid-PTO Availability
Optional
Option: 2,500 rpm (Mid)
Category, 3-Point Hitch
I
Cat 1
Hitch Lift Capacity (at 24”)
Not Published
974 lb
R3 Turf - Rear
33x15.5-16.5; 13.6x16
Not Published
R3 Turf - Front
23x8.50-12; 25x8.50-14
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5
R4 Industrial - Rear
33x15.5-16.5
14X17.5
R4 Industrial - Front
23x8.50-12
25X8.50-14
R1 Agricultural - Rear
8.3-20
11.2-20 8PR
R1 Agricultural - Front
6-12
7-16 6PR
Coolant Capacity
Not Published
1.21 gal
Crankcase Capacity
Not Published
0.79 gal
Fuel Tank Capacity
7 gal
6.08 gal
Front Axle Fluid Capacity
Not Published
0.79 gal
Transmission / Hydraulic System Capacity
Not Published
2.90 gal
Loader Model
Solis 3200
n/a
Loader Lift Height
85 in
86 in.
Loader Breakout Force
1,146 lbs
1,960 lbs.
Quick Attach Loader System
SSQA (Skid Steer Quick Attach)
SSQA
Loader Lift Capacity (Full Height)
1,411 lbs
1,314 lbs.
Clutch
electro-hydraulic wet disc
Dry Single Plate
No. of Speeds
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
3 Range
Transmission Type
hydrostatic
Hydrostatic (HST)
Max Travel Speed (Forward)
Up to 14 mph
14.8 mph
Max Travel Speed (Reverse)
Up to 14 mph
14.8 mph
Differential Lock & Limited Slip Options
mechanical rear
Differential Lock
Brakes
Mechanical wet disc brakes
Wet, Multi-Disc
Steering
Power steering
Hydrostatic
Frame Type
Not Published
Steel frame with cast iron axles
Front Axle Type
Four-wheel drive
4 Wheel Drive
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Adjustable seat; flips up and back for rear backhoe operation
Wheelbase
61.8 inches 61.4 in
65.7"
Overall Width
47.38 in.
53.8"
Ground Clearance
9.44 in.
16.4"
Height to Top of ROPS
91.53 in
91.4"
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND
91.4 in - ROPS up (no folded dimension found in available sources)
