Solis H24 vs Solis H24 | Side-by-side comparison | ITC Resource Center
Compare Tractors

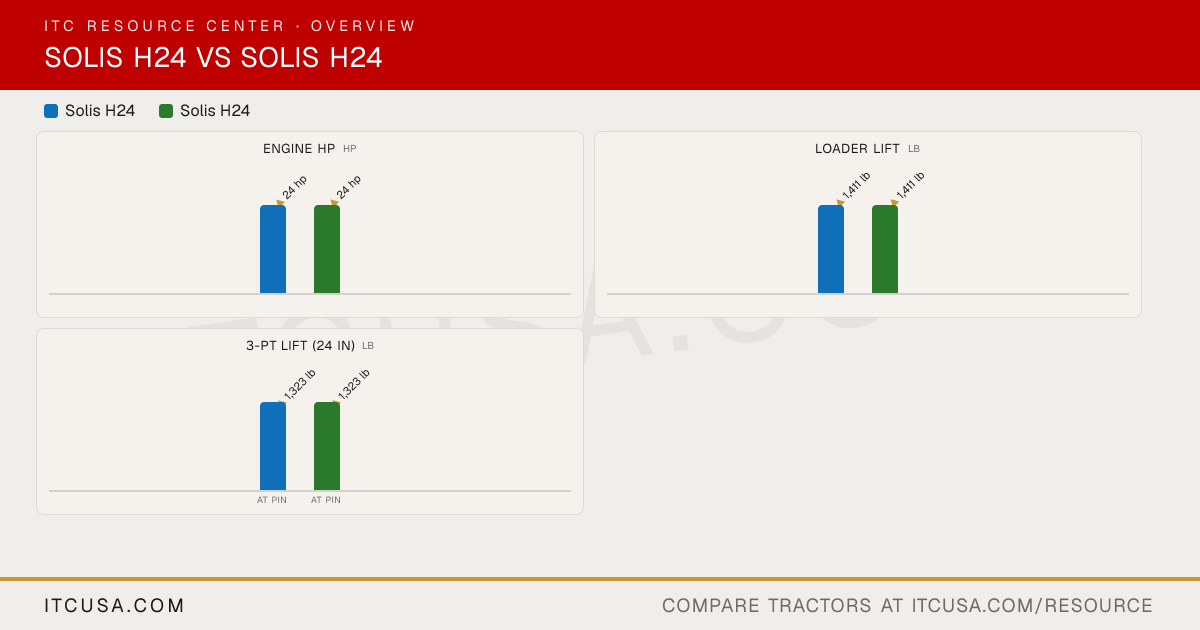

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24
SolisH24
PTO Power
Not Published
Not Published
Alternator
alternator
alternator
Air Cleaner
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Engine Type
diesel
diesel
Fuel System
Direct Injection
Direct Injection
Displacement
79.3 in³
79.3 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2500 rpm
Cooling System Type
Liquid cooled
Liquid cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Pump Type
NOT FOUND
NOT FOUND
Steering Flow
NOT FOUND — no source explicitly lists this value
NOT FOUND — no source explicitly lists this value
Implement Flow
3.98 gpm 15.1 lpm
3.98 gpm 15.1 lpm
Total Hydraulic Flow
3.98 gpm
3.98 gpm
Hydraulic System Type
open center
open center
Rear Remote Hydraulic Flow
NOT FOUND — no source explicitly lists this value
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
3.98 gpm 15.1 lpm
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
NOT FOUND — no source explicitly lists this value
NOT FOUND — no source explicitly lists this value
No. of Standard Remote Valves
NOT FOUND — no source explicitly lists this value
NOT FOUND — no source explicitly lists this value
PTO Rear
540 (1.375)
540 (1.375)
PTO Type
independent
independent
Lift Control Type
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Hitch Lift Capacity
1323 lbs
1323 lbs
Mid-PTO Availability
Optional
Optional
Category, 3-Point Hitch
I
I
Hitch Lift Capacity (at 24”)
Not Published
Not Published
R3 Turf - Rear
33x15.5-16.5; 13.6x16
33x15.5-16.5; 13.6x16
R3 Turf - Front
23x8.50-12; 25x8.50-14
23x8.50-12; 25x8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3-20
8.3-20
R1 Agricultural - Front
6-12
6-12
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
7 gal
7 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Model
Solis 3200
Solis 3200
Loader Lift Height
85 in
85 in
Loader Breakout Force
1,146 lbs
1,146 lbs
Quick Attach Loader System
SSQA (Skid Steer Quick Attach)
SSQA (Skid Steer Quick Attach)
Loader Lift Capacity (Full Height)
1,411 lbs
1,411 lbs
Clutch
electro-hydraulic wet disc
electro-hydraulic wet disc
No. of Speeds
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
