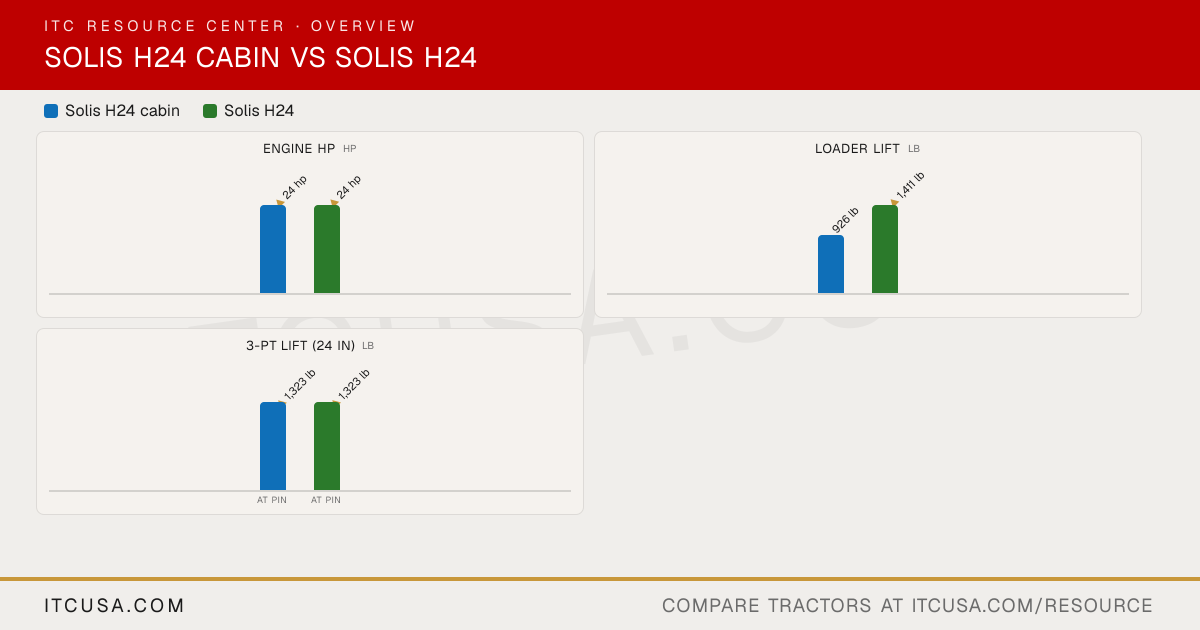

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24 cabin
SolisH24
PTO Power
Not Published
Not Published
Alternator
Not Published
alternator
Air Cleaner
Not Published
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Engine Type
Diesel, Natural Aspiration
diesel
Fuel System
Indirect Injection
Direct Injection
Displacement
80.42 ci
79.3 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2500 rpm
Cooling System Type
Not Published
Liquid cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Not Published
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Weight with ROPS and Loader
Not Applicable
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
3-year warranty; 7-year limited powertrain
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Pump Type
Not Published
NOT FOUND
Steering Flow
Not Published
NOT FOUND — no source explicitly lists this value
Implement Flow
3.98 gpm 15.1 lpm
3.98 gpm 15.1 lpm
Total Hydraulic Flow
3 gpm
3.98 gpm
Hydraulic System Type
open center
open center
Rear Remote Hydraulic Flow
Not Published
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
Not Published
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
Not Published
NOT FOUND — no source explicitly lists this value
No. of Standard Remote Valves
1
NOT FOUND — no source explicitly lists this value
PTO Rear
540 RPM at 2451 RPM
540 (1.375)
PTO Type
Independent
independent
Lift Control Type
NOT FOUND
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Hitch Lift Capacity
1323 lbs
1323 lbs
Mid-PTO Availability
Yes - 2100 RPM at 2438 RPM
Optional
Category, 3-Point Hitch
Category I
I
Hitch Lift Capacity (at 24”)
Not Published
Not Published
R3 Turf - Rear
33x15.5-16.5; 13.6x16
33x15.5-16.5; 13.6x16
R3 Turf - Front
23x8.50-12; 25x8.50-14
23x8.50-12; 25x8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3-20
8.3-20
R1 Agricultural - Front
6-12
6-12
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
7 gal
7 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
HLN24: 82 in; HB24: 85 in
85 in
Loader Breakout Force
HLN24: 1,565 lb; HB24: 1,146 lb
1,146 lbs
Quick Attach Loader System
HLN24 (NSL), HB24 (MSL)
SSQA (Skid Steer Quick Attach)
Loader Lift Capacity (Full Height)
926 lbs
1,411 lbs
Loader Model
—
Solis 3200
Clutch
Not Published
electro-hydraulic wet disc
No. of Speeds
2 Range
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
