Solis S20 vs Solis H24 | Side-by-side comparison | ITC Resource Center
Compare Tractors

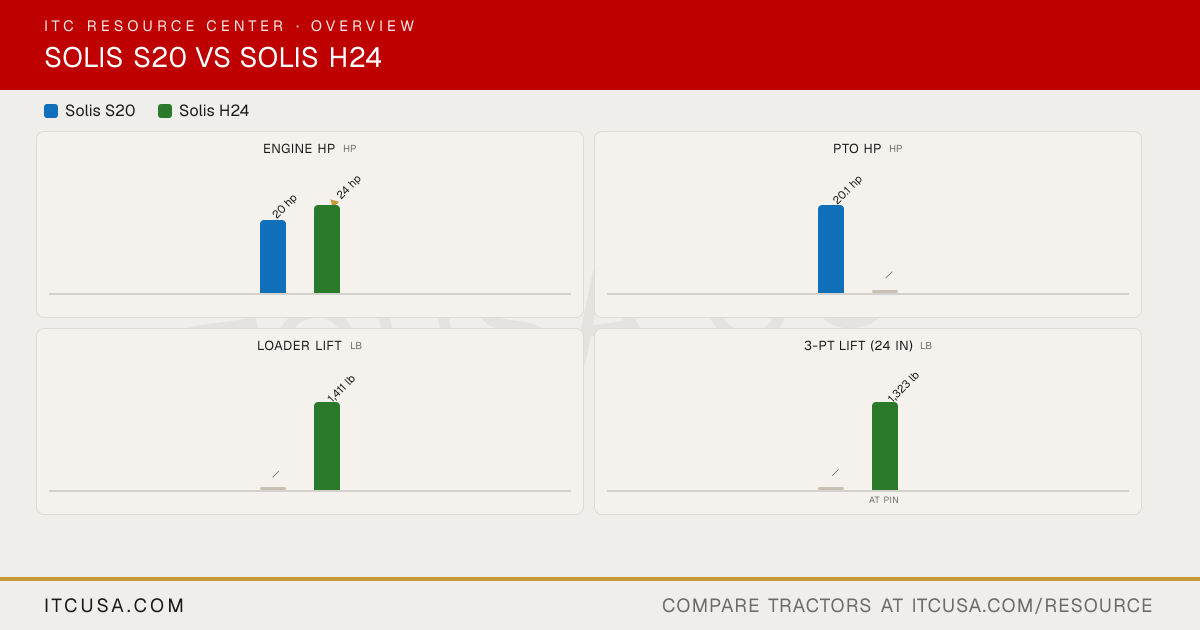

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS20
SolisH24
PTO Power
20.1 hp
Not Published
Alternator
42 A, 12 V
alternator
Engine Type
Mitsubishi 3 Cylinder
diesel
Displacement
58.1 in³
79.3 in³
Engine Model
Mitsubishi MVL - 3E
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2700
2500 rpm
Cooling System Type
Water Cooled
Liquid cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
20 hp
24 hp
Engine Emissions Constraints
Stage V
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Air Cleaner
—
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Fuel System
—
Direct Injection
Total Hydraulic Flow
13.3 LPM
3.98 gpm
Pump Type
—
NOT FOUND
Steering Flow
—
NOT FOUND — no source explicitly lists this value
Implement Flow
—
3.98 gpm 15.1 lpm
Hydraulic System Type
—
open center
Rear Remote Hydraulic Flow
—
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
—
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
—
NOT FOUND — no source explicitly lists this value
No. of Standard Remote Valves
—
NOT FOUND — no source explicitly lists this value
PTO Type
Mechanical
independent
PTO Rear
—
540 (1.375)
Lift Control Type
—
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Hitch Lift Capacity
—
1323 lbs
Mid-PTO Availability
—
Optional
Category, 3-Point Hitch
—
I
Hitch Lift Capacity (at 24”)
—
Not Published
R3 Turf - Rear
33x15.5-16.5
33x15.5-16.5; 13.6x16
R3 Turf - Front
23x8.50-12
23x8.50-12; 25x8.50-14
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.00 - 18
8.3-20
R1 Agricultural - Front
5.00 - 12
6-12
Tire Size & Options
—
R1 Agricultural, R3 Turf, R4 Industrial
Clutch
Single Clutch
electro-hydraulic wet disc
No. of Speeds
6F+2R
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
Transmission Type
Sliding Mesh
hydrostatic
Max Travel Speed (Forward)
15.26 Km/Hr @ 2700
Up to 14 mph
Differential Lock & Limited Slip Options
Yes, Foot Operated
mechanical rear
Max Travel Speed (Reverse)
—
Up to 14 mph
Brakes
Dry Drum Brakes
Mechanical wet disc brakes
Steering
Power Steering
Power steering
Front Axle Type
4WD
Four-wheel drive
Frame Type
—
Not Published
Drawbar Capacity
—
Not Published
Front Axle Rating
—
Not Published
Seat Suspension & Adjustability
—
Not Published
Wheelbase
55.9 in
61.8 inches 61.4 in
Ground Clearance
7.9 in
9.44 in.
Height to Top of ROPS
75.8 in
91.53 in
Height to Top of Cab Model
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Not Applicable
Height to Top of ROPS (folded)
77.6 in
NOT FOUND
Min. Turn Radius without Brakes
2.3 m
NOT FOUND
Overall Length with 3-Point Hitch
106.7 in
113.98 in.
Overall Width
—
47.38 in.
Weight with ROPS and Loader
—
Not Published
Weight with Cab and Loader
—
Not Applicable
Warranty Length & Coverage
—
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
