Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

SolisS24

n/a

SolisS22

Comparison loaded for 2 tractors.

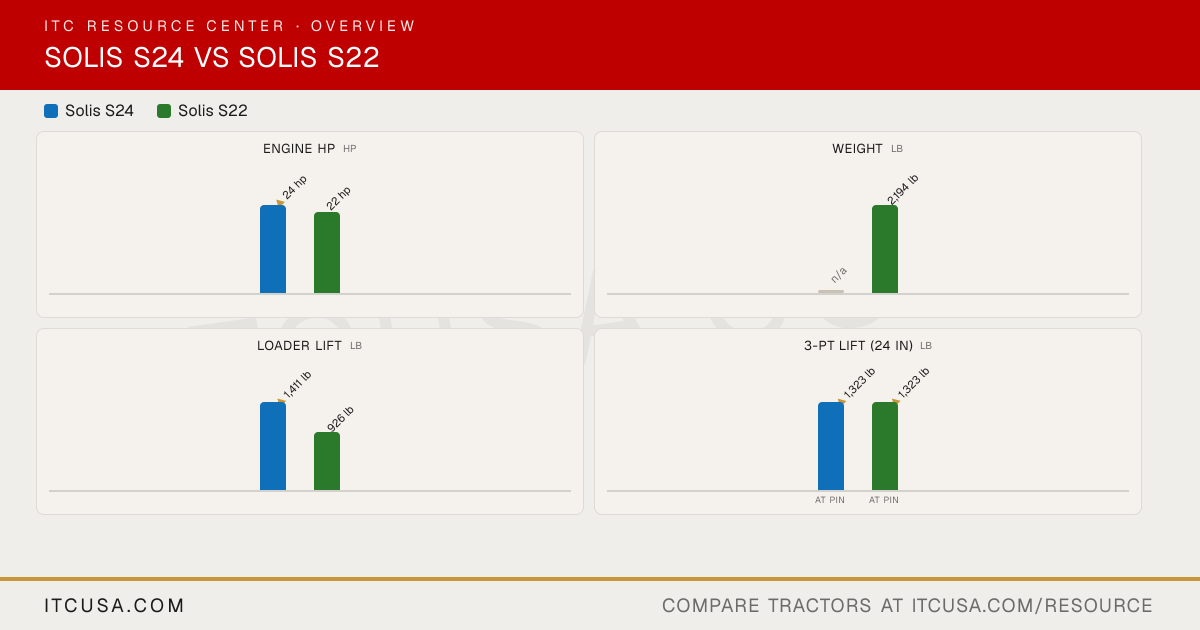

The headline numbers at a glance.

Solis S24Solis S22

Engine HPhp

▲24 hp

22 hp

PTO HPhp

n/a

Weightlb

n/a

2,194 lb

Loader Liftlb

▲1,411 lb

926 lb

3-Pt Lift (24 in)lb

▲1,323 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisS24	SolisS22


PTO Power	Not Published	n/a
Alternator	alternator	42 A
Air Cleaner	Not Published	n/a
Engine Type	3-Cylinder, Naturally Aspirated Diesel	diesel
Fuel System	Not Published	diesel
Displacement	80.4 in³	67.1 in³
Engine Model	Mitsubishi S3L2	Mitsubishi S3L2
No. of Cylinders	3	3
Rated Engine Speed	2500	n/a
Cooling System Type	Not Published	n/a
Engine Manufacturer	Mitsubishi	ITL
Engine Power (Gross)	24 hp	22 hp
Engine Emissions Constraints	Not Published	n/a

Weight with ROPS and Loader	Not Published	2194 lbs 2,193.6 lb
Weight with Cab and Loader	Not Applicable	n/a

Warranty Length & Coverage	3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)	n/a

Pump Type	Not Published	n/a
Steering Flow	Not Published	n/a
Implement Flow	3.27	n/a
Total Hydraulic Flow	3.27	n/a
Hydraulic System Type	open center	n/a
Rear Remote Hydraulic Flow	Not Published	n/a
Overall Hydraulic Pump Flow	3.27 gpm 12.4 lpm	n/a
No. of Optional Remote Valves	Not Published	n/a
No. of Standard Remote Valves	1DA	1DA

PTO Rear	540 rpm @ 2491 engine rpm	540
PTO Type	Mechanical	Mechanical
Lift Control Type	Not Published	n/a
Hitch Lift Capacity	1323 lbs 1,322.8 lb	1323 lbs 1,322.8 lb
Mid-PTO Availability	Not Published	n/a
Category, 3-Point Hitch	CAT-1N	I
Hitch Lift Capacity (at 24”)	Not Published	n/a

R3 Turf - Rear	33x15.5-16.5; 13.6x16	n/a
R3 Turf - Front	23x8.50-12; 25x8.50-14	n/a
Tire Size & Options	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf: 23x8.50-12 & 33x15.5-16.5; Agri: 6x12 & 8.3x20; Agri: 7x14 & 8.3x24; Radial: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55R12 & 280/70R16; R14: 23x8.50-12 R14T & 12~16.5 R14T	n/a
R4 Industrial - Rear	33x15.5-16.5	n/a
R4 Industrial - Front	23x8.50-12	n/a
R1 Agricultural - Rear	8.3x20; 8.3x24; 280/70 R18	280/70R18
R1 Agricultural - Front	6x12; 7x14; 6.5/80-12	6.5/80-12

Coolant Capacity	Not Published	n/a
Crankcase Capacity	Not Published	n/a
Fuel Tank Capacity	7 gal	6.9 gal
Front Axle Fluid Capacity	Not Published	n/a
Transmission / Hydraulic System Capacity	Not Published	n/a

Loader Lift Height	85 in	85
Loader Breakout Force	1,146 lb	1058 / 1146
Quick Attach Loader System	SB24 (MSL)	n/a
Loader Lift Capacity (Full Height)	1,411 lb	926 / 1411
Loader Model	n/a	3200 / 3200V

Clutch	Single	Single Clutch
No. of Speeds	6F+2R	6
Transmission Type	Mechanical (Gear)	6-speed gear
Max Travel Speed (Forward)	Not Published	n/a
Max Travel Speed (Reverse)	Not Published	n/a
Differential Lock & Limited Slip Options	Differential lock: Standard	mechanical rear

Brakes	Oil immersed brakes; mechanical foot operated	Wet disc brakes
Steering	Power steering	Power steering
Frame Type	Four-wheel drive	Two-post folding ROPS
Front Axle Type	4WD	n/a
Drawbar Capacity	Not Published	n/a
Front Axle Rating	Not Published	n/a
Seat Suspension & Adjustability	Not Published	n/a

Wheelbase	61.4 inches 61 in	61.4 inches 61 in
Overall Width	42.32	n/a
Ground Clearance	9.44 in	n/a
Height to Top of ROPS	84.34	n/a
Height to Top of Cab Model	Not Applicable	n/a
Height to Top of ROPS (folded)	Not Published	n/a
Min. Turn Radius without Brakes	Not Published	n/a
Overall Length with 3-Point Hitch	108.66	n/a
