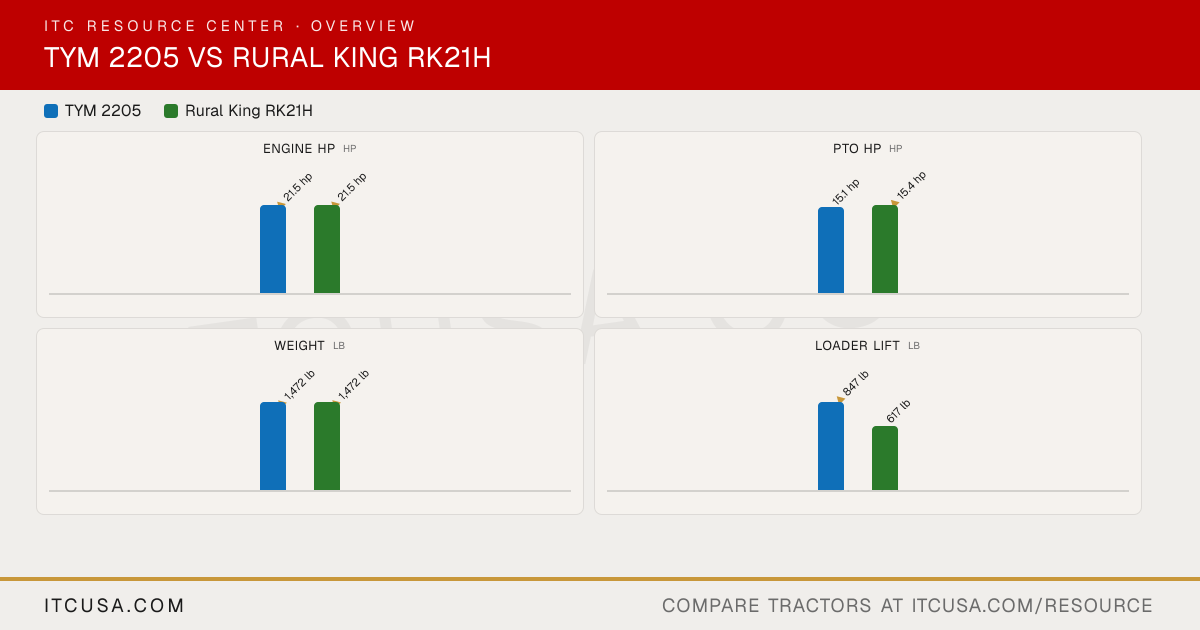

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNM74F 3TNM74F Engine Type Diesel, swirl chamber combustion, naturally aspirated Yanmar EPA Tier 4 certified 3-cylinder, liquid cooled diesel (natural aspiration) No. of Cylinders 3 3 Displacement 60.6 in³ 60.6 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21.5 hp 21.5 hp PTO Power 15.1 hp 15.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Single dry Fuel System Indirect injection (swirl chamber) Indirect fuel injection Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Single gear pump with flow divider Single gear pump with flow divider Implement Flow 4.2 gpm 4.17 gpm Steering Flow 2.1 gpm 2.11 gpm Total Hydraulic Flow 6.3 gpm 6.97 gpm Overall Hydraulic Pump Flow Not Published 6.97 gpm Hydraulic System Type Not Published Live, independent Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity Not Published 6.6 gal Coolant Capacity Not Published 3.7 qt Crankcase Capacity Not Published 2.1 qt Transmission / Hydraulic System Capacity Not Published 3.6 gal Front Axle Fluid Capacity Not Published 2.6 qt ▶ PTO & HitchPTO Type Independent (rear and mid) Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Available, 2,500 rpm Optional (2,500 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,100 lb 1,100 lb Hitch Lift Capacity (at 24”) Not Published 679 lb Lift Control Type Position control Position ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) 2-range hydrostatic No. of Speeds Infinite (2-range HST) 2 Range Max Travel Speed (Forward) 8.4 mph 7.8 mph Max Travel Speed (Reverse) 8.4 mph Not Published Clutch Not Published Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch) Differential Lock & Limited Slip Options Mechanical rear differential lock 4WD with differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Rigid unit: transmission case, engine and front axle support bolted together Steering Power-assisted hydrostatic Hydrostatic power steering Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Not Published Suspension seat with armrests & retractable seat belt Front Axle Type 4WD (MFWD) 4WD, center-pivot reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 94.2 in 94.2 in Overall Width 44.5 in 44.5 in Wheelbase 53.1 in 53.1 in Ground Clearance 8.3 in 8.3 in Min. Turn Radius without Brakes Not Published 86.6 in Height to Top of ROPS 86.6 in 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,472 lb 1,472 lb Weight with ROPS and Loader Not Published 1,942 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Turf (TURF05): 18x8.50-10 front / 26x12.00-12 rear; Industrial (IND05): 18x8.50-10 front / 26x12.00-12 rear R4 Industrial (Std), R3 Turf (Opt), Goodyear R14 (Opt) R1 Agricultural - Front Not Published BAR F 16X7.50-9 R1 Agricultural - Rear Not Published BAR R 24X12.00-12 R3 Turf - Front 18x8.50-10 16X7.50-8 R3 Turf - Rear 26x12.00-12 16X12.00-12 R4 Industrial - Front 18x8.50-10 Not Published R4 Industrial - Rear 26x12.00-12 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published L72: skid-steer compatible quick-attach Loader Model BL92S L72 Loader Lift Height Not Published L72: 72 in (maximum lift height) Loader Lift Capacity (Full Height) BL92S: 847 lb L72: 617 lb (to full height) Loader Breakout Force Not Published L72: 1,285 lb ▶ WarrantyWarranty Length & Coverage Not Published Full machine: 2 years or 2,000 hours; Powertrain: 8 years or 3,000 hours (no deductible, parts and labor)
