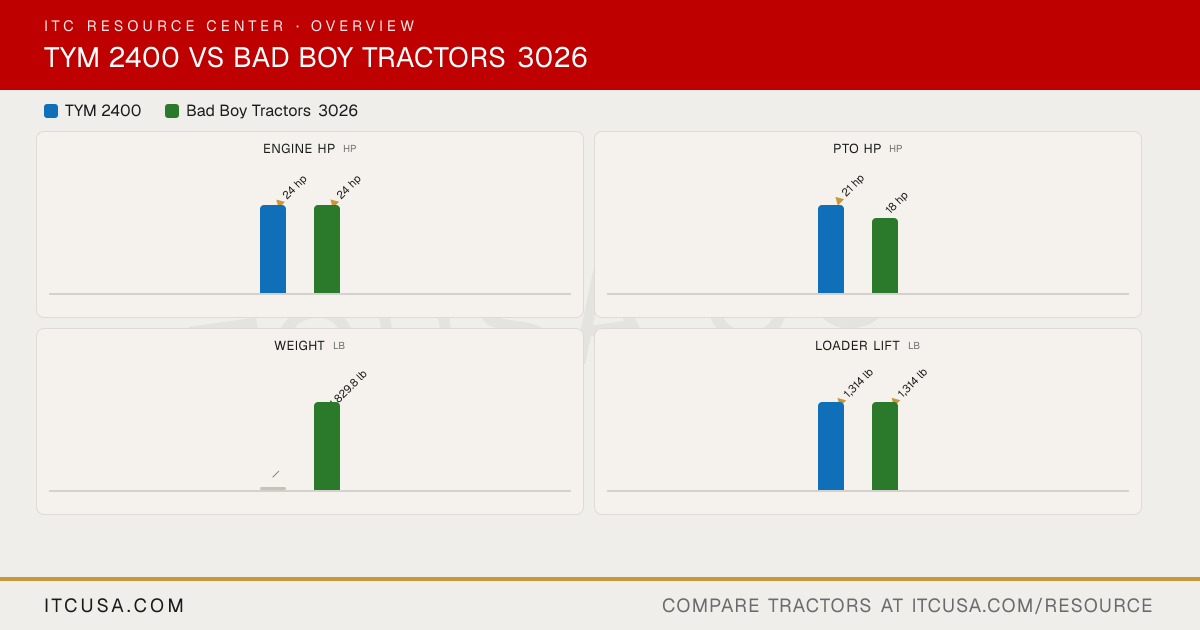

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2400
Bad Boy Tractors3026
PTO Power
21 hp
18 hp
Alternator
60 A, 12 V
50 A, 12 V
Air Cleaner
Dry element
Dry, Element
Engine Type
3-cylinder, naturally aspirated diesel
3 CYL, Water Cooled, Diesel
Fuel System
IDI
Diesel
Displacement
71.7 in³
71.7 in³
No. of Cylinders
3
3
Rated Engine Speed
2850 rpm
2600 rpm
Cooling System Type
Not Published
Water Cooled
Engine Manufacturer
TYM
TYM
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Tier 4
Final Tier4
Engine Model
—
A1100N2
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources
Tractor Weight (Base)
—
1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year powertrain warranty
Pump Type
Dual gear pump
Gear type pump with primary and secondary pumps
Steering Flow
3.3 gpm
3.1 gpm
Implement Flow
4.7 gpm
4.3 gpm
Total Hydraulic Flow
7.9 gpm
7.4 gpm 28.0 lpm
Hydraulic System Type
Open center
Power Assisted Hydro-Static
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
7.9 gpm
7.7 gal per min
No. of Optional Remote Valves
2
Optional (Up To 1)
No. of Standard Remote Valves
0
0
System Operating Pressure
—
352.7 lbf/cm² (max operating pressure)
PTO Rear
540/1000 rpm
540 / 960 rpm @ 2,600 rpm
PTO Type
Live
Live P.T.O. (6 Spline shaft)
Lift Control Type
Position control
Position control
Hitch Lift Capacity
1,499 lb
1,433 lbs
Mid-PTO Availability
Not Published
Option: 2,500 rpm (Mid)
Category, 3-Point Hitch
Category I
Cat 1
Hitch Lift Capacity (at 24”)
974 lb
974 lb
R3 Turf - Rear
33x12.50-16.5
Not Published
R3 Turf - Front
23x8.50-12
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5
R4 Industrial - Rear
12-16.5
14X17.5
R4 Industrial - Front
23x8.50-12
25X8.50-14
R1 Agricultural - Rear
9.5-16
11.2-20 8PR
R1 Agricultural - Front
6.0-12
7-16 6PR
Coolant Capacity
5.3 qt
1.21 gal
Crankcase Capacity
2.9 qt
0.79 gal
Fuel Tank Capacity
6.0 gal
6.08 gal
Front Axle Fluid Capacity
3.5 qt
0.79 gal
Transmission / Hydraulic System Capacity
3.7 gal
2.90 gal
Loader Lift Height
88.3 in
86 in.
Loader Breakout Force
1,960 lb
1,960 lbs.
Quick Attach Loader System
BL100S: Skid-type quick attachment
SSQA
Loader Lift Capacity (Full Height)
1,314 lb
1,314 lbs.
Clutch
Dry single plate
Dry Single Plate
No. of Speeds
Gear: F6 x R2; HST: 2-Range
3 Range
Transmission Type
Gear: Constant Mesh; HST: HST
Hydrostatic (HST)
Max Travel Speed (Forward)
Gear: 9.9 mph; HST: 12.1 mph
14.8 mph
Max Travel Speed (Reverse)
Not Published
14.8 mph
Differential Lock & Limited Slip Options
Not Published
Differential Lock
Brakes
Wet, multi disc
Wet, Multi-Disc
Steering
Hydrostatic
Hydrostatic
Frame Type
Not Published
Steel frame with cast iron axles
Front Axle Type
4WD
4 Wheel Drive
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Comfortable suspension seat
Adjustable seat; flips up and back for rear backhoe operation
Wheelbase
59.1 in
65.7"
Overall Width
44.2 in
53.8"
Ground Clearance
12.1 in
16.4"
Height to Top of ROPS
87.3 in
91.4"
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
91.4 in - ROPS up (no folded dimension found in available sources)
