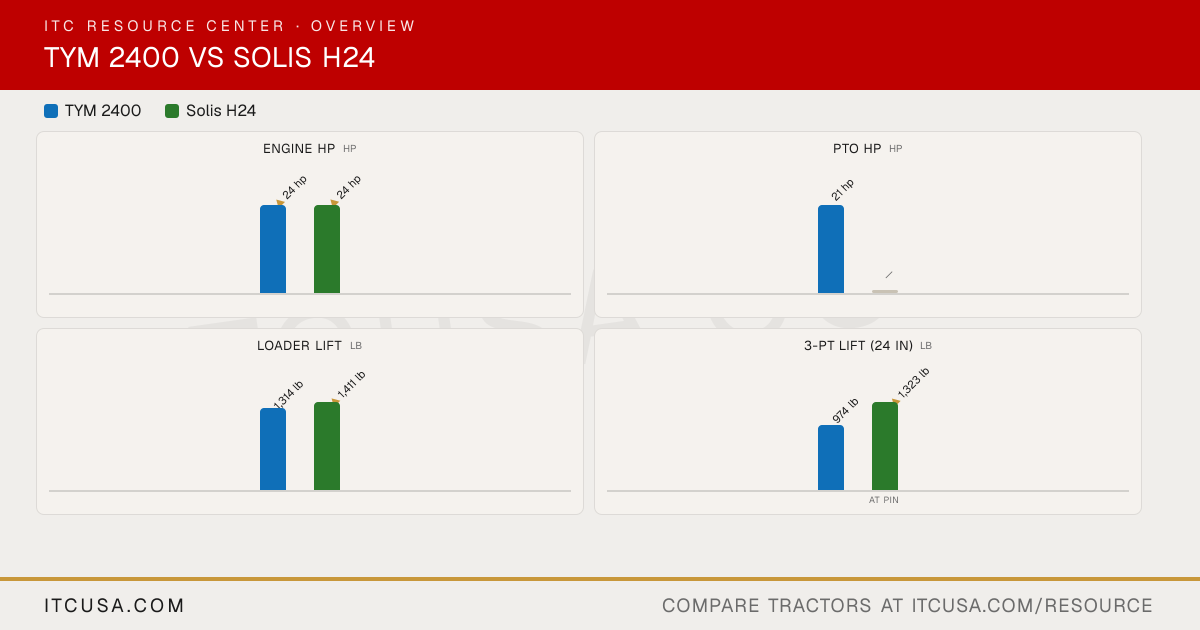

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2400
SolisH24
PTO Power
21 hp
Not Published
Alternator
60 A, 12 V
alternator
Air Cleaner
Dry element
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Engine Type
3-cylinder, naturally aspirated diesel
diesel
Fuel System
IDI
Direct Injection
Displacement
71.7 in³
79.3 in³
No. of Cylinders
3
3
Rated Engine Speed
2850 rpm
2500 rpm
Cooling System Type
Not Published
Liquid cooled
Engine Manufacturer
TYM
Mitsubishi
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Tier 4
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Engine Model
—
Mitsubishi S3L2
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Pump Type
Dual gear pump
NOT FOUND
Steering Flow
3.3 gpm
NOT FOUND — no source explicitly lists this value
Implement Flow
4.7 gpm
3.98 gpm 15.1 lpm
Total Hydraulic Flow
7.9 gpm
3.98 gpm
Hydraulic System Type
Open center
open center
Rear Remote Hydraulic Flow
Not Published
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
7.9 gpm
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
2
NOT FOUND — no source explicitly lists this value
No. of Standard Remote Valves
0
NOT FOUND — no source explicitly lists this value
PTO Rear
540/1000 rpm
540 (1.375)
PTO Type
Live
independent
Lift Control Type
Position control
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Hitch Lift Capacity
1,499 lb
1323 lbs
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
Category I
I
Hitch Lift Capacity (at 24”)
974 lb
Not Published
R3 Turf - Rear
33x12.50-16.5
33x15.5-16.5; 13.6x16
R3 Turf - Front
23x8.50-12
23x8.50-12; 25x8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
12-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
9.5-16
8.3-20
R1 Agricultural - Front
6.0-12
6-12
Coolant Capacity
5.3 qt
Not Published
Crankcase Capacity
2.9 qt
Not Published
Fuel Tank Capacity
6.0 gal
7 gal
Front Axle Fluid Capacity
3.5 qt
Not Published
Transmission / Hydraulic System Capacity
3.7 gal
Not Published
Loader Lift Height
88.3 in
85 in
Loader Breakout Force
1,960 lb
1,146 lbs
Quick Attach Loader System
BL100S: Skid-type quick attachment
SSQA (Skid Steer Quick Attach)
Loader Lift Capacity (Full Height)
1,314 lb
1,411 lbs
Loader Model
—
Solis 3200
Clutch
Dry single plate
electro-hydraulic wet disc
No. of Speeds
Gear: F6 x R2; HST: 2-Range
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
