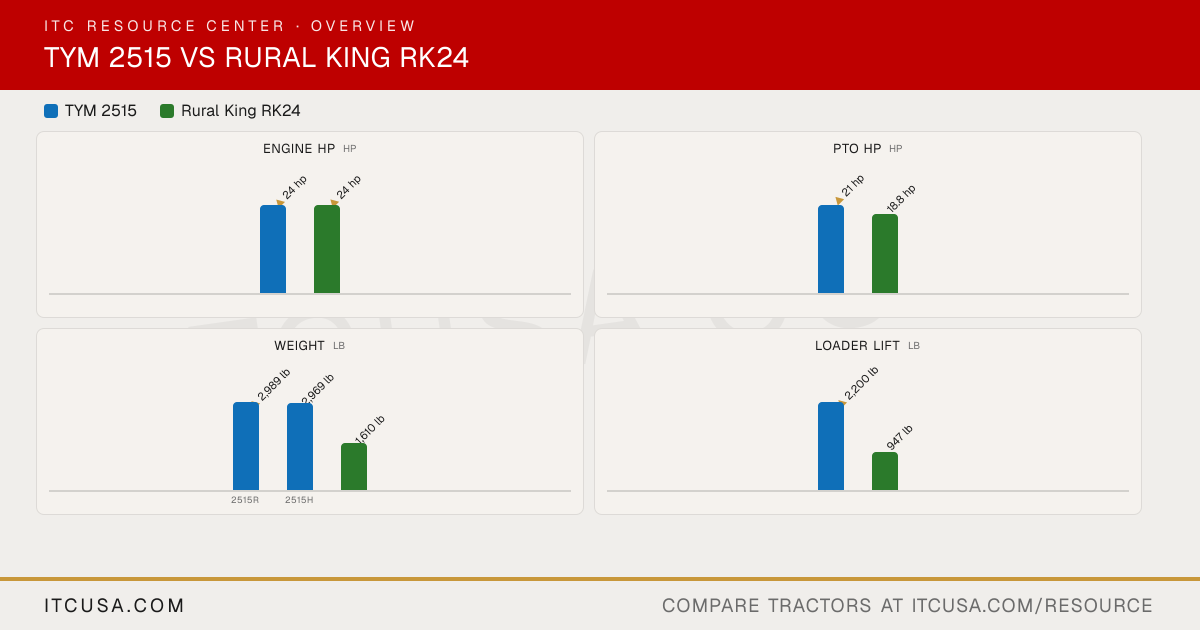

▶ EngineEngine Manufacturer TYM Yanmar Engine Model T1700N6 3TNV80F-SDKTFF Engine Type 3-cylinder, naturally aspirated diesel Water cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 104.5 in³ 77.3 in³ Rated Engine Speed 2100 rpm 3000 rpm Engine Power (Gross) 24 hp 24 hp PTO Power 21 hp 18.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Water cooled, forced circulation Air Cleaner Dry element Single element Fuel System IDI (indirect injection) Indirect fuel injection Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Dual gear pump Gear Pump Implement Flow 7.7 gpm 4.18 gpm Steering Flow 4.2 gpm 2.77 gpm Total Hydraulic Flow 11.9 gpm 6.95 gpm Overall Hydraulic Pump Flow 11.9 gpm 6.95 gpm Hydraulic System Type Open center Live, independent Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 2 / Rear: 0 1 No. of Optional Remote Valves Up to 4 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 5.81 gal Coolant Capacity 5.3 qt 0.96 gal Crankcase Capacity 4.5 qt 0.71 gal Transmission / Hydraulic System Capacity 2515R: 9 gal; 2515H: 9.8 gal 3.83 gal Front Axle Fluid Capacity 6.8 qt 0.85 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard, 2,000 rpm @ 2,875 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306 lb 1,323 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,058 lb Lift Control Type Position control Position ▶ Transmission & DrivetrainTransmission Type 2515R: Synchromesh; 2515H: HST Hydraulic + mechanical H/L with constant-mesh No. of Speeds 2515R: F12 x R12; 2515H: 3-Range 2 ranges (high/low), infinite forward and reverse Max Travel Speed (Forward) 2515R: 11.7 mph; 2515H: 15.2 mph 11.2 mph Max Travel Speed (Reverse) 2515R: 11.6 mph; 2515H: 15.2 mph Not Published Clutch 2515R: Dry single plate; 2515H: None (HST) Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch) Differential Lock & Limited Slip Options Differential lock (standard) 4WD with differential lock (bevel gears with diff-lock) ▶ Chassis, Steering & ControlsFrame Type Not Published Rigid unit: transmission case, engine and front axle support bolted together Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet Disc, Foot operated, independent with provision of inter lock for simultaneous operation Seat Suspension & Adjustability Suspension seat Suspension seat with armrests & retractable seat belt Front Axle Type Not Published 4WD, center-pivot reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 100.5 in Overall Width 56.3 in 45.8 in Wheelbase 65.7 in 57.5 in Ground Clearance 14.4 in 9.4 in Min. Turn Radius without Brakes L: 124.8 in; R: 121.3 in Not Published Height to Top of ROPS 97.3 in 91.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2515R: 2,989 lb; 2515H: 2,969 lb 1,610 lb Weight with ROPS and Loader 2515R: 3,997 lb; 2515H: 3,977 lb 2,091 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5 R4 Industrial (Std), R3 Turf (Opt) R1 Ag (Opt), Goodyear R14 (Opt) R1 Agricultural - Front 8-16 6-12 R1 Agricultural - Rear 12.4-24 9.5-16 R3 Turf - Front 27x8.5-15, 6PR 20x8-10 R3 Turf - Rear 41x14.00, 4PR 29x12.5-15 R4 Industrial - Front 10-16.5, 6PR 20x8-10 R4 Industrial - Rear 420/70-24, 6PR 27x12.5-15 ▶ Loader & AttachmentsQuick Attach Loader System BL150: Quick attach assembly (lever-lock) L75: skid-steer compatible quick-attach Loader Model BL150 L75 Loader Lift Height BL150: 104.9 in L75: 75.3 in (maximum lift height to pivot pin) Loader Lift Capacity (Full Height) BL150: 2,200 lb L75: 947 lb (at pivot pin, to full height) Loader Breakout Force BL150: 3,422 lb L75: 1,680 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers Full machine: 2 years or 2,000 hours; Powertrain: 8 years or 3,000 hours (no deductible, parts and labor) ▶ ITC Company AccessoriesAccessories that fit
