Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYM3015

—

KiotiCK30

Comparison loaded for 2 tractors.

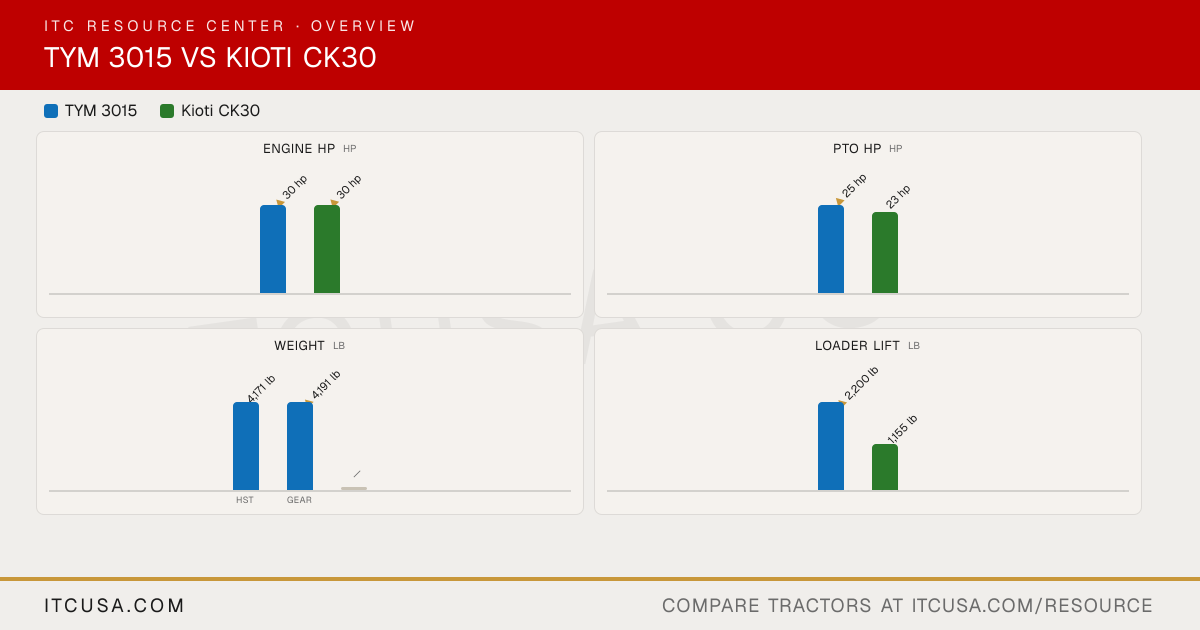

The headline numbers at a glance.

TYM 3015Kioti CK30

Engine HPhp

▲30 hp

PTO HPhp

▲25 hp

23 hp

Weightlb

4,171 lb

▲4,191 lb

—

HSTGear

Loader Liftlb

▲2,200 lb

1,155 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3015	KiotiCK30


PTO Power	25 hp	23 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	Liquid-cooled, diesel
Fuel System	IDI	Not Published
Displacement	104.6 in³	91.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	TYM T1700N3	KIOTI (Daedong)
Engine Power (Gross)	30 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	HST: 4,171 lb; Gear: 4,191 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Single Gear Pump	Not Published
Steering Flow	8 gpm	Not Published
Implement Flow	4.3 gpm	Not Published
Total Hydraulic Flow	12.3 gpm	12.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.3 gpm	12.7 gpm
No. of Optional Remote Valves	Up to 4	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	560 rpm	540/1000 rpm
PTO Type	Independent	Live (two-stage clutch)
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	3,306 lb	1,764 lb (at 24 in)
Mid-PTO Availability	Not Published	Yes (2,000 rpm)
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	1,764 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	27X8.50-15
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43x16.00-20	15-19.5
R4 Industrial - Front	28x8.50-15	25X8.50-14
R1 Agricultural - Rear	12.4-24	11.2-24
R1 Agricultural - Front	8.0-16	7.0-14

Coolant Capacity	5.3 qt	Not Published
Crankcase Capacity	4.5 qt	Not Published
Fuel Tank Capacity	7.1 gal	7.9 gal
Front Axle Fluid Capacity	1.7 qt	Not Published
Transmission / Hydraulic System Capacity	HST: 9.8 gal; Gear: 8.9 gal	Not Published

Loader Lift Height	104.9 in	92.5 in
Loader Breakout Force	3,422 lb	2,046 lb
Quick Attach Loader System	BL150: Quick attach assembly (lever-lock)	Not Published
Loader Lift Capacity (Full Height)	2,200 lb	1,155 lb

Clutch	HST: Not Applicable; Gear: Dry Single Plate	Two-stage clutch
No. of Speeds	HST: 3-Range; Gear: F12 x R12	8F/8R
Transmission Type	HST: HST; Gear: Synchromesh	8-speed synchronized shuttle
Max Travel Speed (Forward)	HST: 18.8 mph; Gear: 14.4 mph	14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet, Multi-disc	Wet disc brakes
Steering	Hydrostatic	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	65.7 in	66.1 in
Overall Width	56.3 in	54.6 in
Ground Clearance	14.4 in	13.82 in
Height to Top of ROPS	97.3 in	96.8 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	104.7 in	Not Published
Overall Length with 3-Point Hitch	120.9 in	122.2 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Permanent page for this matchup: TYM 3015 vs Kioti CK30
