TYM 3515C vs Case IH Farmall Compact 35A | Side-by-side comparison | ITC Resource Center
Compare Tractors

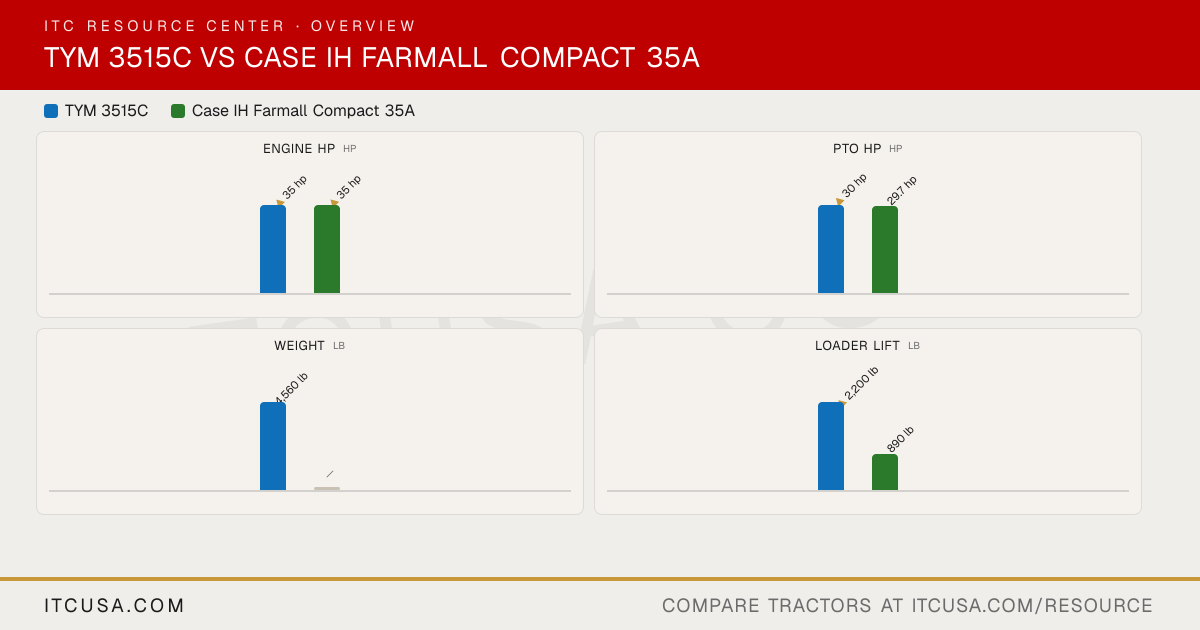

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM3515C
Case IHFarmall Compact 35A
PTO Power
30 hp
29.7 hp
Alternator
70 A, 12 V
Not Published
Air Cleaner
Dry element
Not Published
Engine Type
3-cylinder, naturally aspirated diesel
Diesel, turbocharged
Fuel System
IDI
Not Published
Displacement
104.6 in³
115.9 in³
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
TYM
Not Published
Engine Power (Gross)
35 hp
35 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
Not Applicable
Not Published
Weight with Cab and Loader
4,560 lb
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”)
Pump Type
Dual gear pump
Not Published
Steering Flow
4.2 gpm
Not Published
Implement Flow
7.7 gpm
8.2 gpm
Total Hydraulic Flow
11.9 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.9 gpm
Not Published
No. of Optional Remote Valves
Not Published
1
No. of Standard Remote Valves
0
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Rear independent 540 rpm PTO with electro-hydraulic engagement (standard)
