TYM 3520 vs TYM 3620 | Side-by-side comparison | ITC Resource Center
Compare Tractors

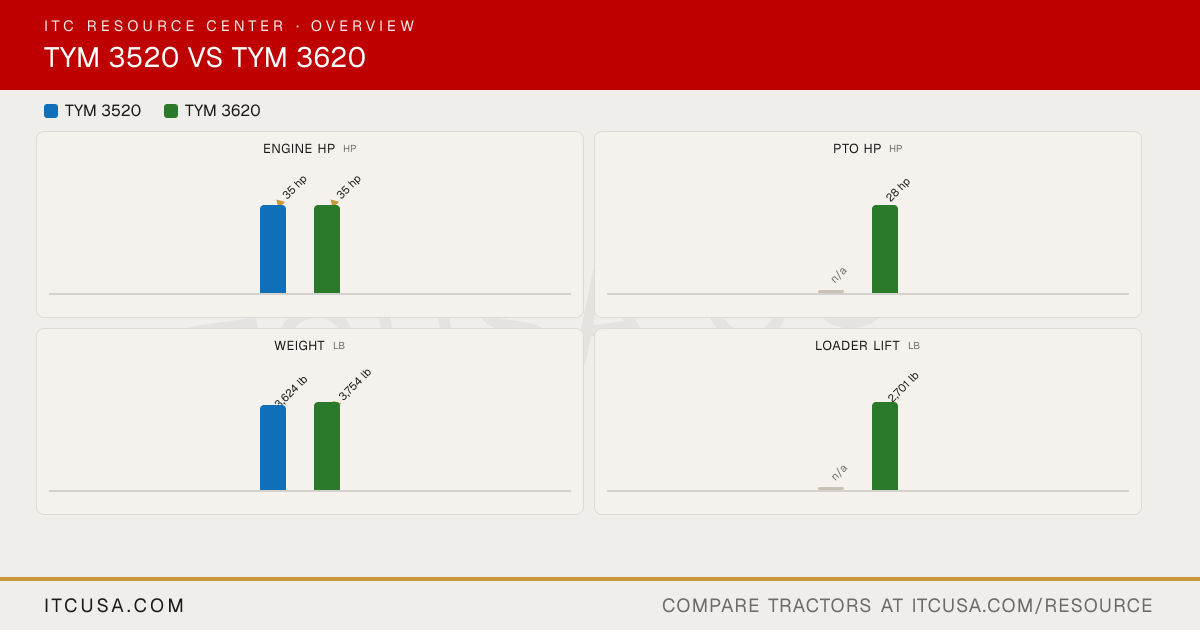

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM3520
TYM3620
Engine Manufacturer
Kukje
TYM
Engine Model
3T90L-ATC
T1700N2
Engine Type
Diesel, liquid-cooled
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
109.5 in³
104.5 in³
Rated Engine Speed
2600 rpm
2500 rpm
Engine Power (Gross)
35 hp
35 hp
PTO Power
Not Published
28 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Dry element
Fuel System
Not Published
IDI (indirect injection)
Alternator
Not Published
50 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
Not Published
7.7 gpm
Steering Flow
Not Published
4.2 gpm
Total Hydraulic Flow
Not Published
11.9 gpm
Overall Hydraulic Pump Flow
Not Published
11.9 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
None standard (optional, up to 4)
No. of Optional Remote Valves
Not Published
Up to 4
Fuel Tank Capacity
10.6 gal
11.8 gal
Coolant Capacity
Not Published
6.0 qt
Crankcase Capacity
Not Published
4.5 qt
Transmission / Hydraulic System Capacity
Not Published
3620R: 10.3 gal; 3620H: 11.1 gal
Front Axle Fluid Capacity
Not Published
6.8 qt
PTO Type
Transmission-driven
Independent
PTO Rear
540 / 1000 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
Not Published
3,306 lb
Hitch Lift Capacity (at 24”)
Not Published
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
Synchronized shuttle
3620R: Synchromesh; 3620H: HST
No. of Speeds
12F/12R
3620R: F16 x R16; 3620H: 4-Range
Max Travel Speed (Forward)
Not Published
3620R: 16 mph; 3620H: 19.5 mph
Max Travel Speed (Reverse)
Not Published
3620R: 15.2 mph; 3620H: 19.5 mph
Clutch
Not Published
3620R: Dry single type; 3620H: No clutch (HST)
Differential Lock & Limited Slip Options
Not Published
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
4WD (MFWD)
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
129.7 in
127.4 in
Overall Width
60 in
64.9 in
Wheelbase
68.8 in
71.1 in
Ground Clearance
12.2 in
15.5 in
Min. Turn Radius without Brakes
Not Published
L: 128.7 in; R: 126.0 in
Height to Top of ROPS
86.4 in
98.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3,624 lb
3,754 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Agricultural: 8-18 front / 12.4-28 rear
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8-18
9.5-16
R1 Agricultural - Rear
12.4-28
12.4-28
R3 Turf - Front
Not Published
27x8.5-15 / 29x12.5-15
R3 Turf - Rear
Not Published
41x14-20 / 44x18-20
R4 Industrial - Front
Not Published
10x16.5
R4 Industrial - Rear
Not Published
420/70x24
Quick Attach Loader System
Not Published
BL200: Quick attach mechanism
Loader Model
Not Published
BL200
Loader Lift Height
Not Published
BL200: 106.6 in
Loader Lift Capacity (Full Height)
Not Published
BL200: 2,701 lb
Loader Breakout Force
Not Published
BL200: 3,660 lb
Warranty Length & Coverage
Not Published
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
