Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYM4215

—

LSMT242HEC

Comparison loaded for 2 tractors.

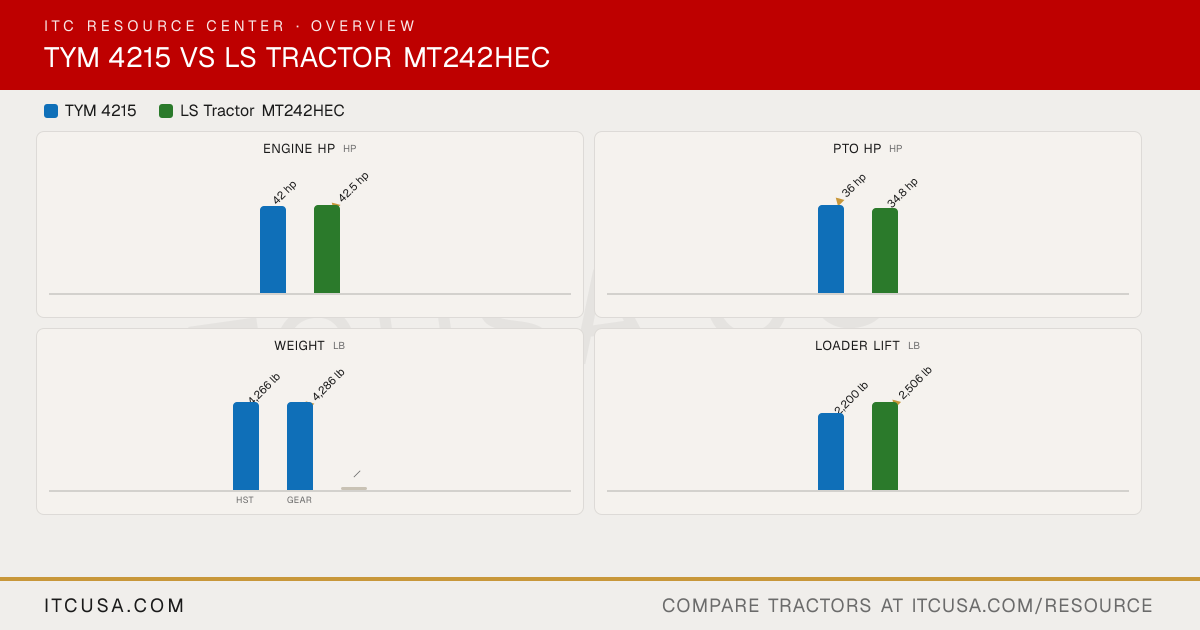

The headline numbers at a glance.

TYM 4215LS Tractor MT242HEC

Engine HPhp

42 hp

▲42.5 hp

PTO HPhp

▲36 hp

34.8 hp

Weightlb

4,266 lb

▲4,286 lb

—

HSTGear

Loader Liftlb

2,200 lb

▲2,506 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4215	LS TractorMT242HEC


PTO Power	36 hp	34.8 hp
Alternator	50 A, 12 V	55 A, 12 V
Air Cleaner	Dry element	Dry
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, Liquid-cooled, Diesel, NA, CRDI
Fuel System	IDI	CRDI
Displacement	139.6 in³	133.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	TYM	YANMAR
Engine Power (Gross)	42 hp	42.5 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	HST: 4,266 lb; Gear: 4,286 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Single gear pump	Gear pump
Steering Flow	9.9 gpm	5.0 gpm
Implement Flow	4.4 gpm	6.7 gpm
Total Hydraulic Flow	14.3 gpm	11.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.3 gpm	11.7 gpm
No. of Optional Remote Valves	Up to 4	Not Published
No. of Standard Remote Valves	0	1

PTO Rear	560 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306 lb	1808 lb
Mid-PTO Availability	Not Published	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1433 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43x16.00-20	43X16.00-20
R4 Industrial - Front	28x8.50-15	27X8.50-15
R1 Agricultural - Rear	12.4-24	11.2-24
R1 Agricultural - Front	8.0-16	7-14

Coolant Capacity	6.2 qt	Not Published
Crankcase Capacity	4.8 qt	Not Published
Fuel Tank Capacity	7.1 gal	10.6 gal
Front Axle Fluid Capacity	1.7 qt	Not Published
Transmission / Hydraulic System Capacity	HST: 9.8 gal; Gear: 8.9 gal	Not Published

Loader Lift Height	104.9 in	94.3 in
Loader Breakout Force	3,422 lb	3,723 lb
Quick Attach Loader System	BL150: Quick attachment assembly	LL3003: ISO 24410 Quick Attaching Coupler
Loader Lift Capacity (Full Height)	2,200 lb	2,506 lb

Clutch	HST: No; Gear: Dry single type	Not Applicable
No. of Speeds	HST: 3-Range; Gear: F12 x R12	3 ranges
Transmission Type	HST: HST; Gear: Synchromesh	Hydrostatic Drive
Max Travel Speed (Forward)	HST: 18.8 mph; Gear: 14.4 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical differential lock (pedal)

Brakes	Wet, multi-disc	Wet, Multi-disc
Steering	Hydrostatic	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	65.7 in	74 in
Overall Width	56.3 in	66 in
Ground Clearance	14.4 in	Not Published
Height to Top of ROPS	97.3 in	Not Applicable
Height to Top of Cab Model	Not Applicable	90 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	104.7 in	11.8 ft (3.6 m)
Overall Length with 3-Point Hitch	120.9 in	125 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
