TYM 4215C vs Case IH Farmall 40A | Side-by-side comparison | ITC Resource Center
Compare Tractors

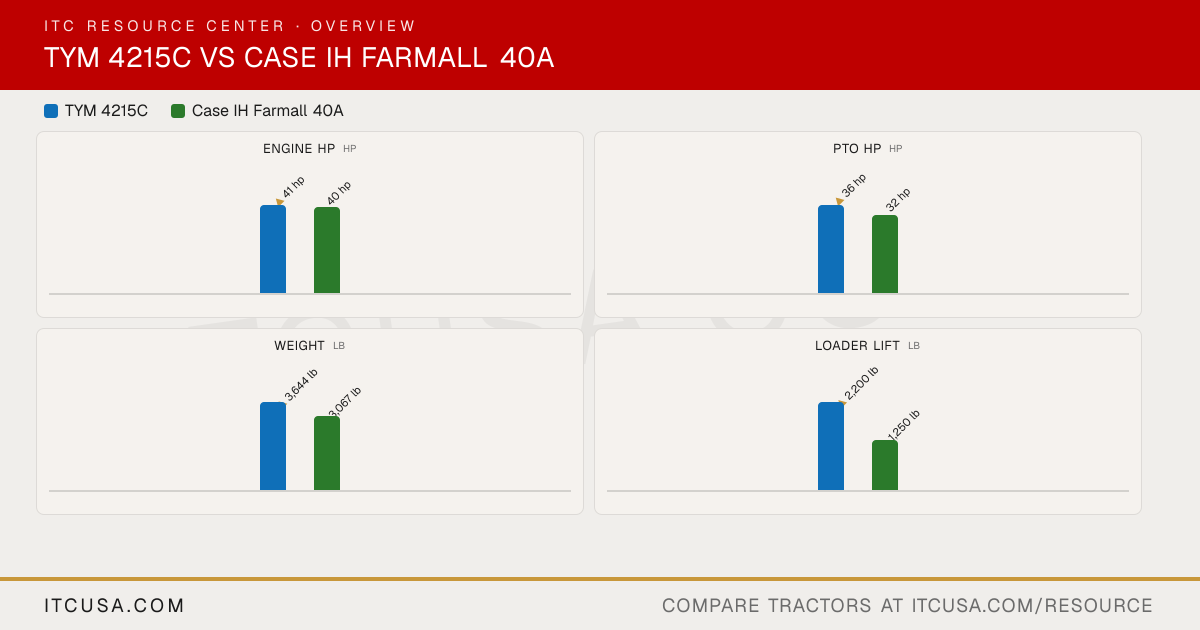

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4215C
Case IHFarmall 40A
Engine Manufacturer
TYM
LS Mtron
Engine Model
T2000N2
L3C19-T4
Engine Type
4-cylinder, naturally aspirated diesel
3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders
4
3
Displacement
139.5 in³
116 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
41 hp
40 hp
PTO Power
36 hp
32 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Pressurized liquid cooling with recirculating bypass
Air Cleaner
Dry element
Not Published
Fuel System
IDI
High pressure common rail
Alternator
70 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Gear
Implement Flow
11.4 gpm
8.2 gpm
Steering Flow
5.2 gpm
5.3 gpm
Total Hydraulic Flow
16.5 gpm
13.5 gpm (8.2 + 5.3, computed)
Overall Hydraulic Pump Flow
16.5 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Rear: 0 (loader: 2)
0
No. of Optional Remote Valves
Up to 4
1
Fuel Tank Capacity
7.1 gal
7.4 gal
Coolant Capacity
5.8 qt
7.5 qt
Crankcase Capacity
4.8 qt
5.8 qt
Transmission / Hydraulic System Capacity
9.8 gal
8.5 gal
Front Axle Fluid Capacity
6.8 qt
6.9 qt
PTO Type
Independent
Independent, electro-hydraulic engagement
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional, 2,000 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
1,808 lb
Hitch Lift Capacity (at 24”)
2,425 lb
1,433 lb
Lift Control Type
Position control
Mechanical Draft Control (MDC)
Transmission Type
HST (hydrostatic)
3-range hydrostatic (optional)
No. of Speeds
3-range hydrostatic
infinite, 3 ranges
Max Travel Speed (Forward)
18 mph
14.8 mph
Max Travel Speed (Reverse)
17.95 mph
14.96 mph
Clutch
Not Published
Dry clutch
Differential Lock & Limited Slip Options
Differential lock (standard)
Mechanical differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Power steering
Brakes
Wet, multi-disc
Wet disc, mechanical actuation
Seat Suspension & Adjustability
Suspension seat
Adjustable suspension seat
Front Axle Type
Not Published
Mechanical Front Drive (MFD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
120.9 in
145.2 in
Overall Width
55.6 in
66.5 in
Wheelbase
65.7 in
67.2 in
Ground Clearance
13.1 in
Not Published
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
123 in
Height to Top of ROPS
Not Published
87.6 in
Height to Top of ROPS (folded)
Not Published
68.2 in
Height to Top of Cab Model
89.3 in
Not Published
Tractor Weight (Base)
3,644 lb
3,067 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
4,652 lb
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front
7-16
7x14
R1 Agricultural - Rear
11.2-24
11.2x24
R3 Turf - Front
27x8.5-15, 6PR
25x8.50-14
R3 Turf - Rear
41x14.00, 4PR
41x14.00-20
R4 Industrial - Front
25x8.5-14, 6PR
25x8.50-14
R4 Industrial - Rear
380/70-19.5, 6PR (standard); 15-19.5 (option)
43x16.00-20
Quick Attach Loader System
BL150C: quick attachment assembly
Not Published
Loader Model
BL150C
L340A
Loader Lift Height
BL150C: 104.9 in
98.4 in
Loader Lift Capacity (Full Height)
BL150C: 2,200 lb
1,250 lb
Loader Breakout Force
BL150C: 3,422 lb
1913 lb
Warranty Length & Coverage
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection
