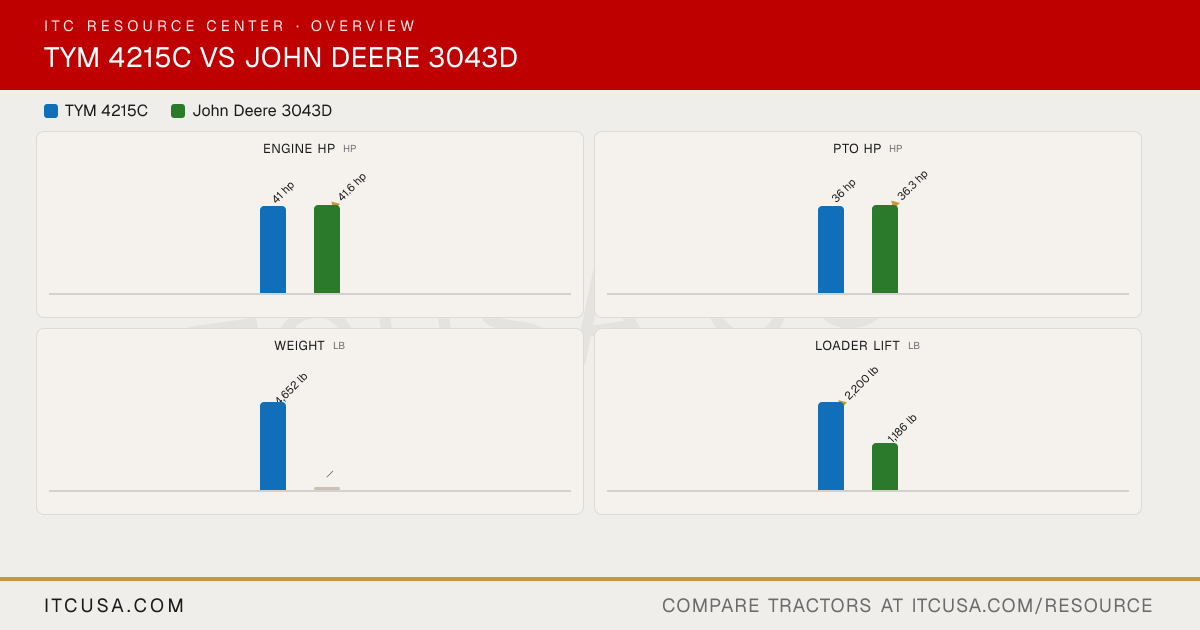

TYM 4215C vs John Deere 3043D | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow
11.4 gpm
5.0 gpm
Steering Flow
5.2 gpm
3.6 gpm
Total Hydraulic Flow
16.5 gpm
Not Published
Overall Hydraulic Pump Flow
16.5 gpm
10.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Rear: 0 (loader: 2)
0
No. of Optional Remote Valves
Up to 4
Up to 2 (optional)
Fuel Tank Capacity
7.1 gal
10.0 gal
Coolant Capacity
5.8 qt
1.3 gal
Crankcase Capacity
4.8 qt
1.1 gal
Transmission / Hydraulic System Capacity
9.8 gal
9.2 gal
Front Axle Fluid Capacity
6.8 qt
1.0 gal
PTO Type
Independent
Transmission
PTO Rear
540 rpm
540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
2081.2 lb
Hitch Lift Capacity (at 24”)
2,425 lb
2081.2 lb
Lift Control Type
Position control
Position control
Transmission Type
HST (hydrostatic)
8F/8R synchromesh shuttle shift gear transmission
No. of Speeds
3-range hydrostatic
8F/8R
Max Travel Speed (Forward)
18 mph
12.9 mph
Max Travel Speed (Reverse)
17.95 mph
13.5 mph
Clutch
Not Published
Single dry traction (mechanical)
Differential Lock & Limited Slip Options
Differential lock (standard)
Differential lock: Yes
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Power steering
Brakes
Wet, multi-disc
Wet disk
Seat Suspension & Adjustability
Suspension seat
Not Published
Front Axle Type
Not Published
4WD
Front Axle Rating
Not Published
1940 lb
Drawbar Capacity
Not Published
1102 lb
Overall Length with 3-Point Hitch
120.9 in
111.2 in
Overall Width
55.6 in
57.3 in
Wheelbase
65.7 in
62.6 in
Ground Clearance
13.1 in
13.0 in
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
89.3 in
Not Published
Tractor Weight (Base)
3,644 lb
3166 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
4,652 lb
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
7-16
7-14
R1 Agricultural - Rear
11.2-24
11.2-24
R3 Turf - Front
27x8.5-15, 6PR
27X8.50-15
R3 Turf - Rear
41x14.00, 4PR
41X14-20
R4 Industrial - Front
25x8.5-14, 6PR
25X8.50-14
R4 Industrial - Rear
380/70-19.5, 6PR (standard); 15-19.5 (option)
15-19.5
Quick Attach Loader System
BL150C: quick attachment assembly
Quick-change attachment carrier
Loader Model
BL150C
D160
Loader Lift Height
BL150C: 104.9 in
84.0 in
Loader Lift Capacity (Full Height)
BL150C: 2,200 lb
1186 lb
Loader Breakout Force
BL150C: 3,422 lb
1704 lb
Warranty Length & Coverage
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
