TYM 4215C vs John Deere 4105 | Side-by-side comparison | ITC Resource Center
Compare Tractors

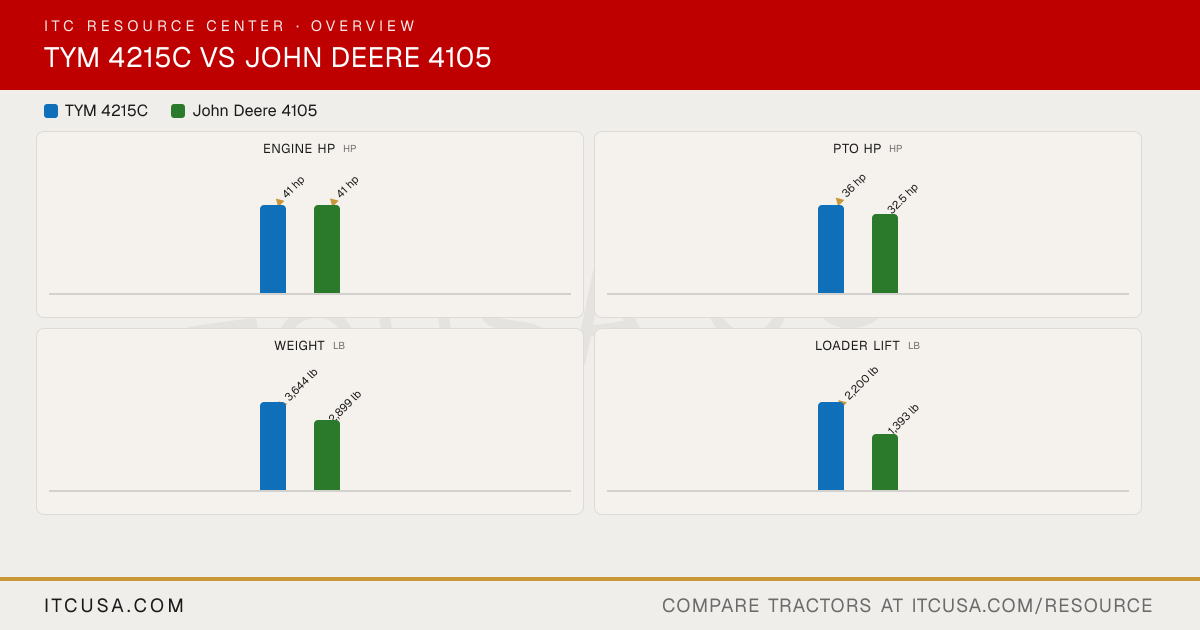

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4215C
John Deere4105
Engine Manufacturer
TYM
Yanmar
Engine Model
T2000N2
3TNV84T-KJT
Engine Type
4-cylinder, naturally aspirated diesel
3-cylinder, direct injection, liquid-cooled diesel
No. of Cylinders
4
3
Displacement
139.5 in³
91.5 in³
Rated Engine Speed
2600 rpm
2800 rpm
Engine Power (Gross)
41 hp
41 hp
PTO Power
36 hp
32.5 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Dry type with safety element
Fuel System
IDI
Direct injection, self-bleeding in-line fuel pump, electric shutoff
Alternator
70 A, 12 V
40 A
Pump Type
Dual gear pump
Dual tandem gear pump
Implement Flow
11.4 gpm
9.2 gpm
Steering Flow
5.2 gpm
5.7 gpm
Total Hydraulic Flow
16.5 gpm
14.8 gpm
Overall Hydraulic Pump Flow
16.5 gpm
14.8 gpm
Hydraulic System Type
Dual gear pump
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Rear: 0 (loader: 2)
2
No. of Optional Remote Valves
Up to 4
Not Published
Fuel Tank Capacity
7.1 gal
11.5 gal
Coolant Capacity
5.8 qt
1.4 gal
Crankcase Capacity
4.8 qt
4.5 qt
Transmission / Hydraulic System Capacity
9.8 gal
8.3 gal
Front Axle Fluid Capacity
6.8 qt
1.2 gal
PTO Type
Independent
Independent, wet disk clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity
3,306 lb
2,530 lb
Hitch Lift Capacity (at 24”)
2,425 lb
2,200 lb
Lift Control Type
Position control
Position control
Transmission Type
HST (hydrostatic)
2-range hydrostatic
No. of Speeds
3-range hydrostatic
Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)
18 mph
13 mph
Max Travel Speed (Reverse)
17.95 mph
12.6 mph
Clutch
Not Published
Wet disk
Differential Lock & Limited Slip Options
Differential lock (standard)
Ball, ramp and pin differential lock
Frame Type
Not Published
Fixed ROPS; four-wheel drive standard
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet disk
Seat Suspension & Adjustability
Suspension seat
Not Published
Front Axle Type
Not Published
Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating
Not Published
3,197 lb
Drawbar Capacity
Not Published
882 lb
Overall Width
55.6 in
63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)
Wheelbase
65.7 in
68 in
Ground Clearance
13.1 in
14.7 in (front axle)
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
Not Published
Height to Top of ROPS
Not Published
87.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
89.3 in
Not Published
Overall Length
120.9 in (with 3-point hitch)
120.2 in (with 3-point hitch)
Tractor Weight (Base)
3,644 lb (with cab)
2,899 lb (with ROPS, 3-point hitch and all fluids)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
4,652 lb (3,644 + 1,008, computed; BL150C loader total weight)
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-R24 rear)
R1 Agricultural - Front
7-16
8.00-16
R1 Agricultural - Rear
11.2-24
14.9-24
R3 Turf - Front
27x8.5-15, 6PR
Not Published
R3 Turf - Rear
41x14.00, 4PR
Not Published
R4 Industrial - Front
25x8.5-14, 6PR
10.0-16.5
R4 Industrial - Rear
380/70-19.5, 6PR (standard); 15-19.5 (option)
17.5L-R24
Quick Attach Loader System
BL150C: quick attachment assembly
Not Published
Loader Model
BL150C
320R
Loader Lift Height
BL150C: 104.9 in
H165: 103 in; 320R: 103 in
Loader Lift Capacity (Full Height)
BL150C: 2,200 lb (at pivot pin)
320R: 1,393 lb (to maximum height at pivot pin)
Loader Breakout Force
BL150C: 3,422 lb (at pivot pin, ground level)
H165: 3,769 lbf; 320R: 3,769 lbf (at pivot point)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
3-year / 2,000-hour limited warranty (as sold new)
