Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYM4815

—

BadBoy5055

Comparison loaded for 2 tractors.

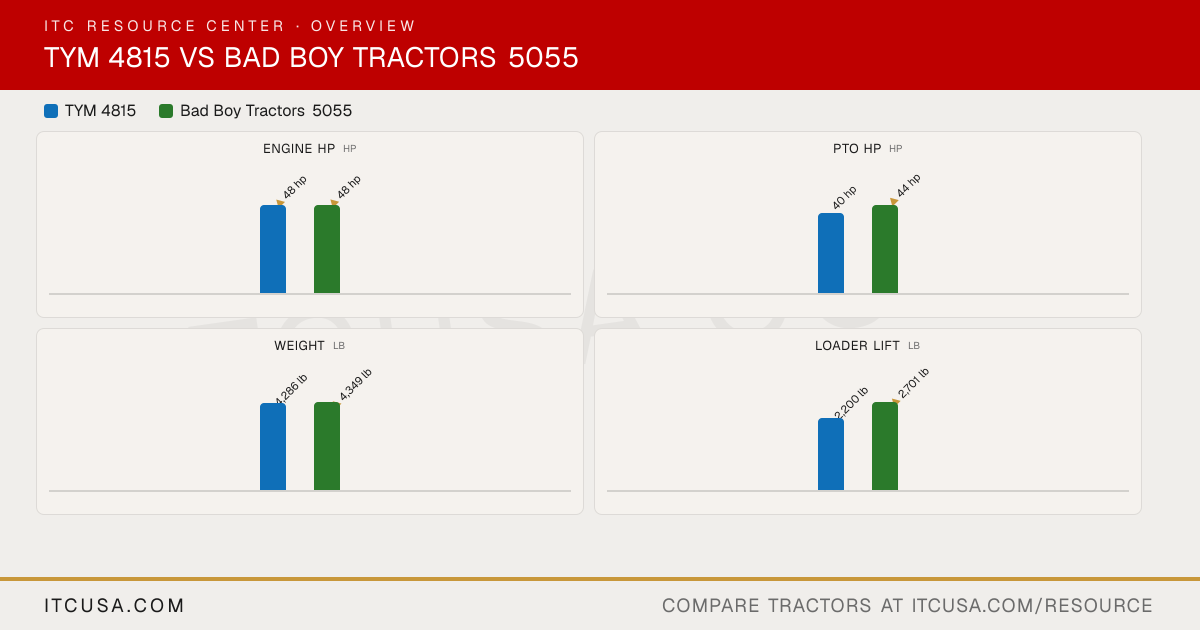

The headline numbers at a glance.

TYM 4815Bad Boy Tractors 5055

Engine HPhp

▲48 hp

PTO HPhp

40 hp

▲44 hp

Weightlb

4,286 lb

▲4,349 lb

Loader Liftlb

2,200 lb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4815	Bad Boy Tractors5055


PTO Power	40 hp	44 hp
Alternator	50 A, 12 V	70 A
Air Cleaner	Dry element	Dry Element
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, water-cooled diesel
Fuel System	IDI	Diesel
Displacement	139.6 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)
Engine Power (Gross)	48 hp	48 hp
Engine Emissions Constraints	Not Published	DPF / DOC

Weight with ROPS and Loader	4,286 lb	3,836 lb (tractor only)
Weight with Cab and Loader	Not Applicable	Not Applicable
Tractor Weight (Base)	—	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	6-year powertrain warranty

Pump Type	Dual gear pump	Hydrostatic Power Steering
Steering Flow	5.2 gpm	5.0 gpm
Implement Flow	11.4 gpm	5055S: 11.4 gpm; 5055H: 10.7 gpm
Total Hydraulic Flow	16.5 gpm	5055S: 16.4 gpm; 5055H: 15.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	5055S: 16.4 gpm; 5055H: 15.7 gpm
No. of Optional Remote Valves	Not Published	Up to 2 rear SCVs
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 / 540E rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural, R4 Industrial	Not Published
R4 Industrial - Rear	420/70×24	Not Published
R4 Industrial - Front	10-16.5	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R1 Agricultural - Front	8.0-16	Not Published

Coolant Capacity	5.8 qt	CABIN: 1.56 gal, ROPS: 2.08 gal
Crankcase Capacity	4.8 qt	1.20 gal
Fuel Tank Capacity	7.1 gal	11.8 gal
Front Axle Fluid Capacity	6.8 qt	1.90 gal
Transmission / Hydraulic System Capacity	HST: 9.8 gal; Gear: 9 gal	10.04 gal

Loader Lift Height	104.9 in	107.7 in (pivot pin)
Loader Breakout Force	3,422 lb	3,660 lb
Quick Attach Loader System	BL150: Quick attachment assembly	SSQA
Loader Lift Capacity (Full Height)	2,200 lb	2,701 lb

Clutch	HST: No; Gear: Dry single type	Not Published
No. of Speeds	HST: 3-Range; Gear: 12F / 12R	5055S: 16F/16R; 5055H: 4-range
Transmission Type	HST: HST; Gear: Synchromesh	Synchromesh (Mechanical models) or HST (Hydrostatic models)
Max Travel Speed (Forward)	HST: 18.8 mph; Gear: 14.9 mph	16.0 mph Synchro; 19.5 mph HST
Max Travel Speed (Reverse)	Not Published	15.2 mph Synchro; 19.5 mph HST
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet, Multi disc	Wet, Multi-disc
Steering	Hydrostatic	Power steering
Frame Type	Not Published	Compact utility tractor, 4WD
Front Axle Type	Not Published	Selectable 4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Heated leather seat

Wheelbase	65.7 in	71.1 in.
Overall Width	56.3 in	64.9 in.
Ground Clearance	14.4 in	15.5 in.
Height to Top of ROPS	97.3 in	CABIN: 97.0 in., ROPS: 98.4 in.
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	L: 124.8 in; R: 121.3 in	Not Published
Overall Length with 3-Point Hitch	120.9 in	127.4 in
Overall Length	—	127.4 in.

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00
