TYM 4815 vs John Deere 4320 | Side-by-side comparison | ITC Resource Center
Compare Tractors

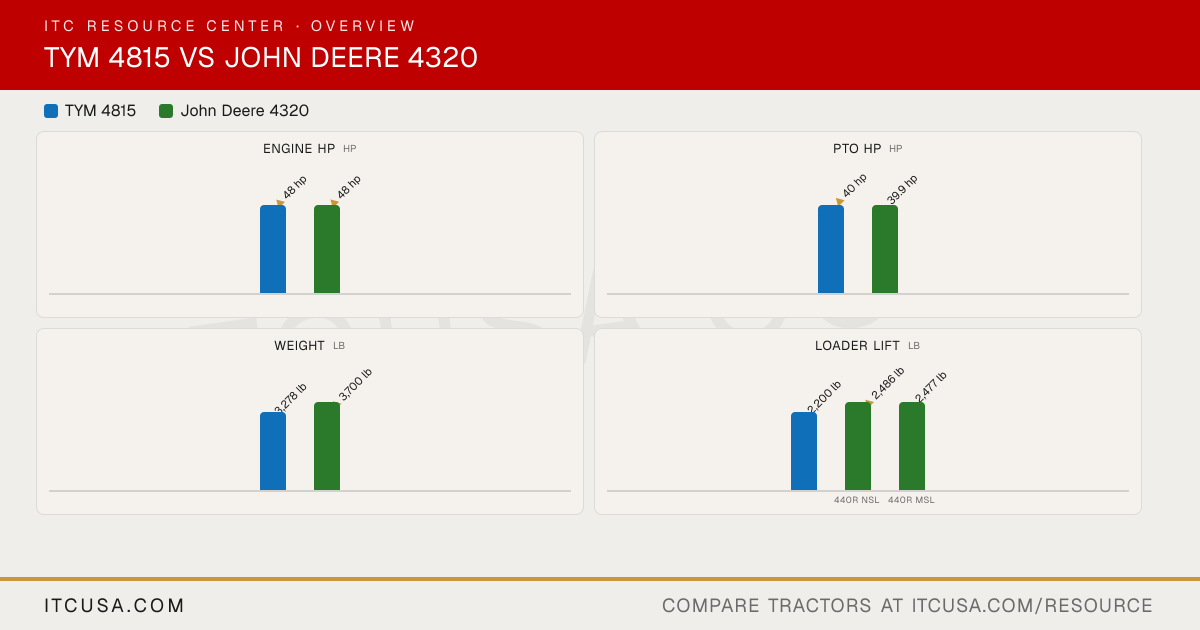

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
4815R: Dry single plate; 4815H: Not applicable (HST)
Multiple stage wet disk, 5.1 in (PowrReverser)
Differential Lock & Limited Slip Options
Differential lock (standard)
Mechanical rear differential lock
Frame Type
Not Published
Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering
Hydrostatic
Power steering
Brakes
Wet, multi-disc
Wet disk
Seat Suspension & Adjustability
Suspension seat
Air ride seat optional
Front Axle Type
Not Published
Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating
Not Published
3,528 lb
Drawbar Capacity
Not Published
1,103 lb
Overall Width
56.3 in
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase
65.7 in
71.5 in
Ground Clearance
14.4 in
Not Published
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
Not Published
Height to Top of ROPS
97.3 in
97.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
92.4 in
Overall Length
120.9 in (with 3-point hitch)
128.2 in (with 3-point hitch)
Tractor Weight (Base)
3,278 lb
3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader
4,286 lb (3,278 + 1,008, computed)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front
8-16
8.00-16
R1 Agricultural - Rear
12.4-24
13.6-28
R3 Turf - Front
Not Published
27x10.5-15
R3 Turf - Rear
Not Published
44x18.00-20
R4 Industrial - Front
10-16.5
10.00-16.5
R4 Industrial - Rear
420/70x24
17.5L-24
Quick Attach Loader System
BL150: quick attachment assembly
Not Published
Loader Model
BL150
440R (NSL and MSL)
Loader Lift Height
BL150: 104.9 in
440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)
BL150: 2,200 lb (at pivot pin)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
3-year / 2,000-hour limited warranty (as sold new)
