TYM 4815 vs Kubota L4802 | Side-by-side comparison | ITC Resource Center
Compare Tractors

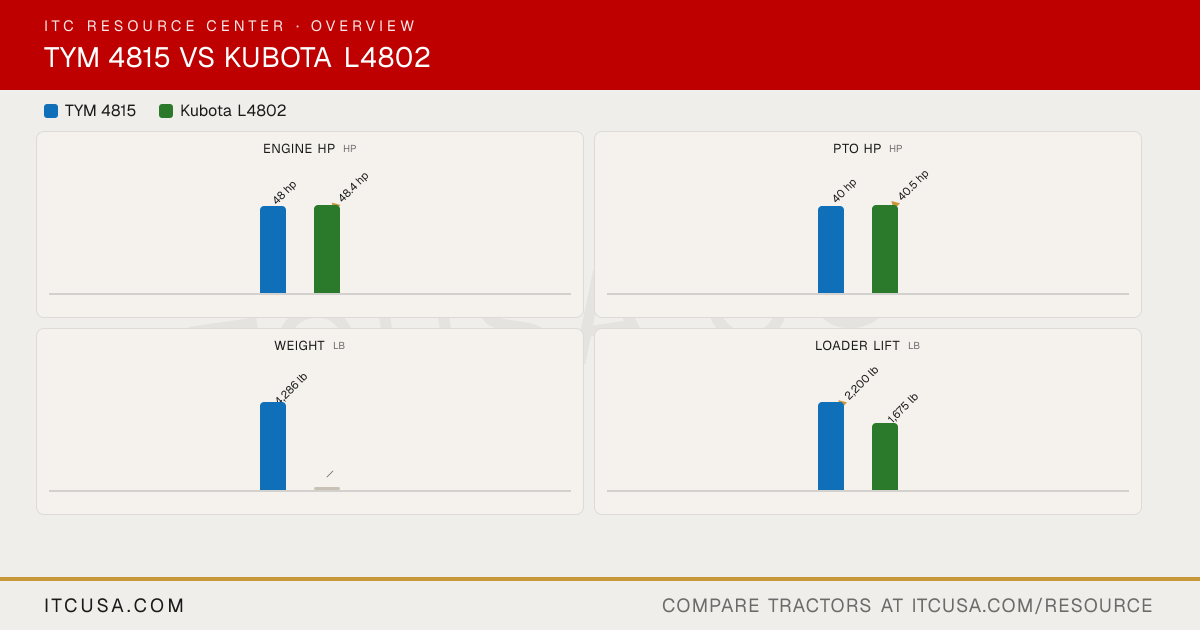

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
4815R: Dry single plate; 4815H: Not applicable (HST)
Not Applicable
Differential Lock & Limited Slip Options
Differential lock (standard)
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Mechanical, wet disc type
Seat Suspension & Adjustability
Suspension seat
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Not Published
Cast-iron front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1,430 lb
Overall Width
56.3 in
62.2 in
Wheelbase
65.7 in
72.6 in
Ground Clearance
14.4 in
15.2 in
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
8.5 ft (with brake applied)
Height to Top of ROPS
97.3 in
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
120.9 in (with 3-point hitch)
120.3 in (without 3-point hitch)
Tractor Weight (Base)
3,278 lb
3,549 lb
Weight with ROPS and Loader
4,286 lb (3,278 + 1,008, computed)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Agricultural; Turf; Industrial (R4)
R1 Agricultural - Front
8-16
8.3-16
R1 Agricultural - Rear
12.4-24
14.9-24
R3 Turf - Front
Not Published
27X10.5-15
R3 Turf - Rear
Not Published
44X18-20
R4 Industrial - Front
10-16.5
10.0-16.5
R4 Industrial - Rear
420/70x24
17.5L-24
Quick Attach Loader System
BL150: quick attachment assembly
LA766 2-Lever Quick Coupler
Loader Model
BL150
LA766
Loader Lift Height
BL150: 104.9 in
105.2 in (at pivot pin)
Loader Lift Capacity (Full Height)
BL150: 2,200 lb (at pivot pin)
1,676 lb (at pivot pin, max. height)
Loader Breakout Force
BL150: 3,422 lb (at pivot pin, ground level)
Not Published
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours
